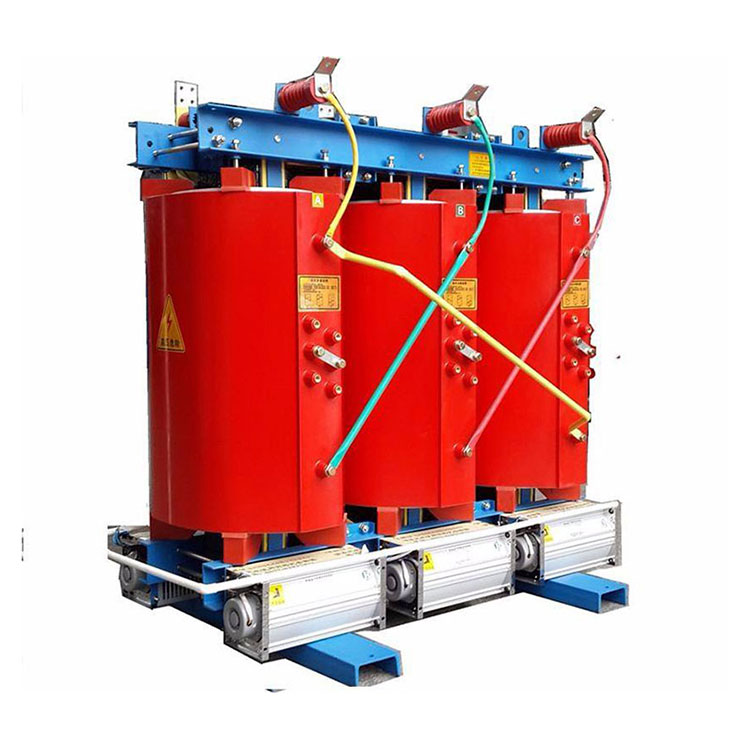

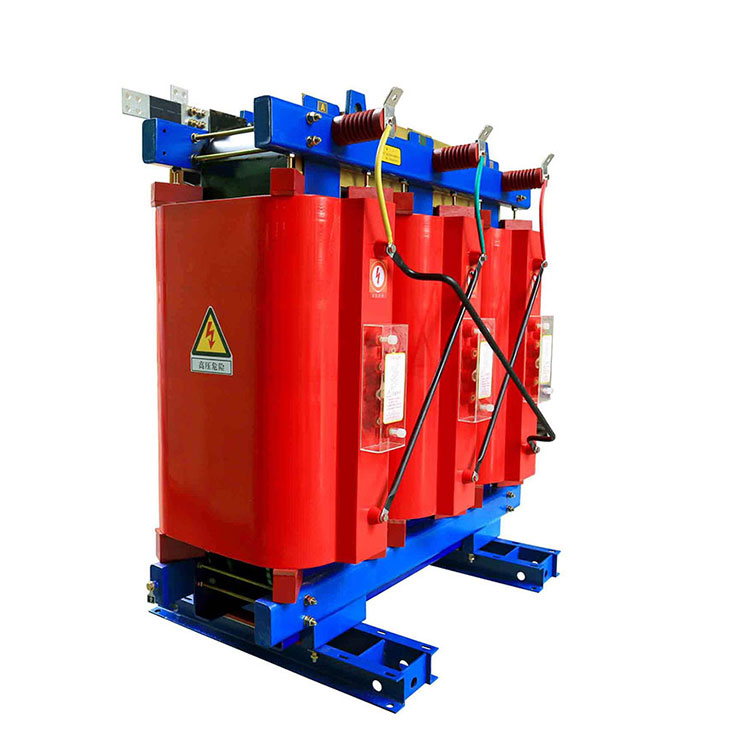

630 Kva Epoxy Resin Dry Type Transformer
  • 630 Kva Epoxy Resin Dry Type Transformer630 Kva Epoxy Resin Dry Type Transformer
  • 630 Kva Epoxy Resin Dry Type Transformer630 Kva Epoxy Resin Dry Type Transformer

630 Kva Epoxy Resin Dry Type Transformer

Conso Electrical Science and Technology Co., Ltd has assembled the 630 kVA epoxy resin dry type transformer since 2006. It has harvested valuable experience to manufacture prefabricated substation, cast resin transformer and oil filed transformer from produce and supply 10kv to 35kv electrical transformers to hospital, manufacturing plant, and national infrastructure projects. We look forward to partnering with you.

Send Inquiry

Product Description

Video



The 630 kVA epoxy resin dry type transformer Structural Features:



The 630 kVA epoxy resin dry type transformers have a core structure similar to that of oil-immersed transformers. For larger capacities, there are ventilation passages within the core. The coil conductors inThe 630 kVA epoxy resin dry type transformers are typically made of double-glass-covered wire or high-temperature-resistant enamel-covered wire. They often use Class B insulation and Class H insulation. Since the transformer body is exposed to the air, the coil is not only impregnated with insulating varnish but also coated with moisture-resistant paint.The 630 kVA epoxy resin dry type transformers have ventilation holes on their enclosures.



There are several types of The 630 kVA epoxy resin dry type transformers:



(1) Open type: The transformer body is in direct contact with the atmosphere and is suitable for relatively dry and clean indoor environments. Small-capacity transformers use air self-cooling, while larger-capacity ones use forced air cooling.

(2) Encapsulated type: The internal structure is isolated from the external atmosphere and can be used in harsh environments, such as in mining transformers. Due to the sealing, their heat dissipation conditions are poor. They can also be filled with gases, such as sulfur hexafluoride, which have better insulation strength and heat dissipation capabilities than air, and use forced circulation. In this case, the insulation and heat dissipation capabilities of dry type transformers can be compared to those of oil immersed transformers.

(3) Cast resin type: Cast with epoxy resin or other resins as the main insulation, these transformers have a simple structure and a small volume. They are suitable for medium to small capacity products.

The 630 kVA epoxy resin dry type transformers are mainly used in places where fire safety requirements are high, such as underground railways, public buildings, and indoor workshops. The relative humidity in the environment where dry-type transformers are installed should not exceed 70% to 85%.


The 630 kVA epoxy resin dry type transformer Product Parameter:


Rated Capacity:  630 kva;
Mode: SCB(10)-630:
No Loading Loss:  1340±15% W or depends;
Loading Loss:  5960±15% W or depends;
Impedance:  4%±10%;
Cooling System:  AN/AF;
Insulation Material:  Epoxy Resin;
Winding Material:  Copper or Aluminum;
IP Rating:  IP00(to the body), IP21 (with enclosed)
Overall Dimension:  1250*900*990 (mm)


CONSO·CN 630 kVA epoxy resin dry type transformer and Enclosure:


Aluminum Alloy

A Transformer with Enclosure

Stainless Steel


CONSO·CN 630 kVA epoxy resin dry type transformer in Process:


Winding

Casting Resin

Ready to assemble

Amorphous Alloy Core


CONSO·CN 630 kVA epoxy resin dry type transformer Workshop:


Winding Workshop

Casting Storage Area

Winding Drying Area

Finished Product Storage


630 kVA epoxy resin dry type transformer Testing Center:



630 kVA epoxy resin dry type transformer Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine


CONSO·CN 630 kVA epoxy resin dry type transformer on Storage:
