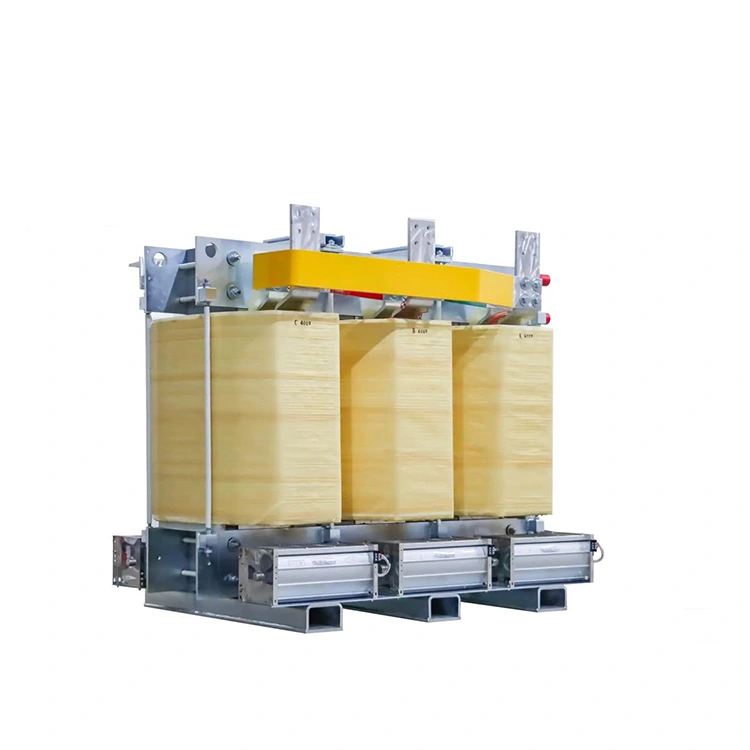

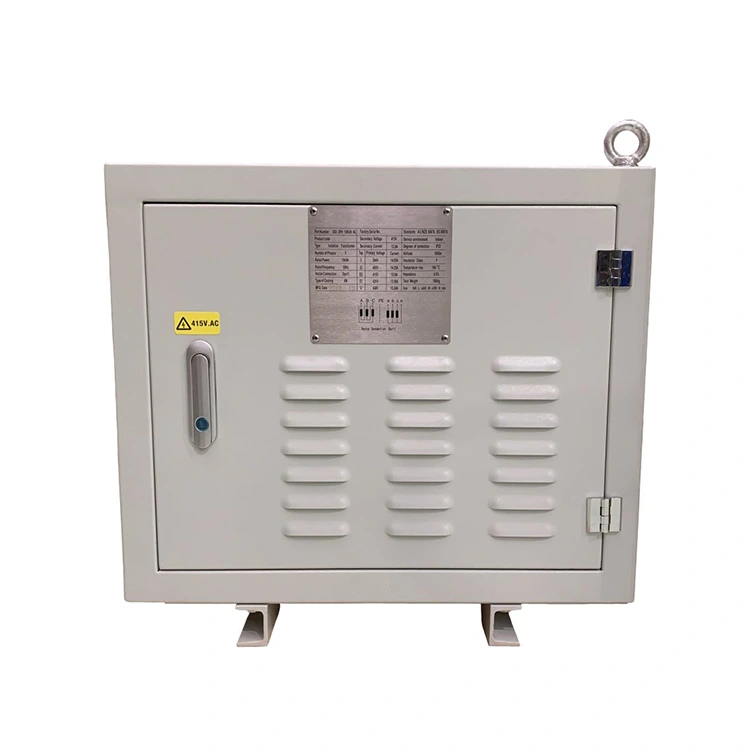

240 to 120 15Kva Dry Type Transformer

To produce a reliable 240 to 120 15Kva Dry Type Transformer, Conso Electrical Science and Technology Co., Ltd strictly controls the quality of distribution transformer, compact substation and electrical panel as the standard of ISO 9001 quality management. From the raw material purchasing to product delivering, Conso Electrical will check and inspect producing process is correct to match the technical specification from terminal users and ensure a fast delivery time. Of course, it also can drop producing costs as each step moves smoothly. Conso Electrical Science and Technology Co., Ltd wish to build a solid business relationship with friend from over the world.

Send Inquiry

Product Description

I. Operating Principle of a 240v to 110v 15kva dry type Transformer

A 240 to 120 15Kva Dry Type Transformer is a type of transformer designed to adjust voltage levels to meet the requirements of different electrical equipment. Its operating principle is based on electromagnetic induction. By varying the turns ratio between the primary and secondary windings, the 240v to 110v 15kva dry type Transformer achieves either a step up or step down effect. When alternating current is applied to the primary winding, it generates an alternating magnetic field, which in turn induces an electromotive force in the secondary winding, allowing the voltage to be transformed accordingly.

II. Key Features of a 240v to 110v 15kva dry type Transformer

High Efficiency: With well designed windings and the use of high quality materials, 240v to 110v 15kva dry type transformers can deliver efficient energy conversion while minimizing power losses.

Safety and Reliability: 240v to 110v 15kva dry type transformers offer strong overload tolerance and short circuit withstand capability to ensure stable operation even under harsh electrical conditions.

Ease of Maintenance: The straightforward structure of a 240v to 110v 15kva dry type Transformer makes routine inspection and maintenance simple and convenient.

III. Applications of 240v to 110v 15kva dry type Transformers

240v to 110v 15kva dry type transformers play an important role in modern power systems. They are commonly used in the transmission and distribution of electrical energy, particularly in situations where high voltages must be reduced to lower levels for residential or commercial consumption. In industrial settings, many machines and processes require specific voltage and current conditions, and low voltage dry type transformers provide the customized power supply needed to support such equipment.

Product Parameter:

Rated Capacity	15 kVA
Rated Capacity	50Hz; 60Hz
Voltage Ratio	480 V → 208/120 V; 480 V → 240/120 V; 240 V → 120/240 V;400 V → 230 V; 380 V → 220 V
Phase Number	Single Phase or Three Phase
Impedance	3.5% to 4.5%
No LoadCurrent	≤2.0%
No Load Loss	60 W to 120 W
Load Loss	300 W to 500 W
Thermal Insulation System	Class F (100K); Class H (115K)
Protection Class	IP00; IP23; IP44
Cooling Type	AN/AF
