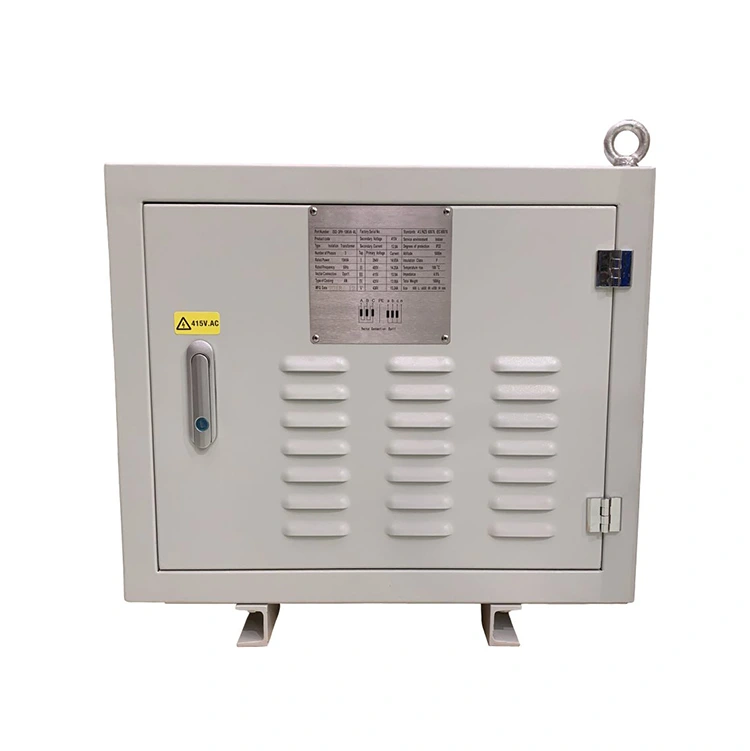

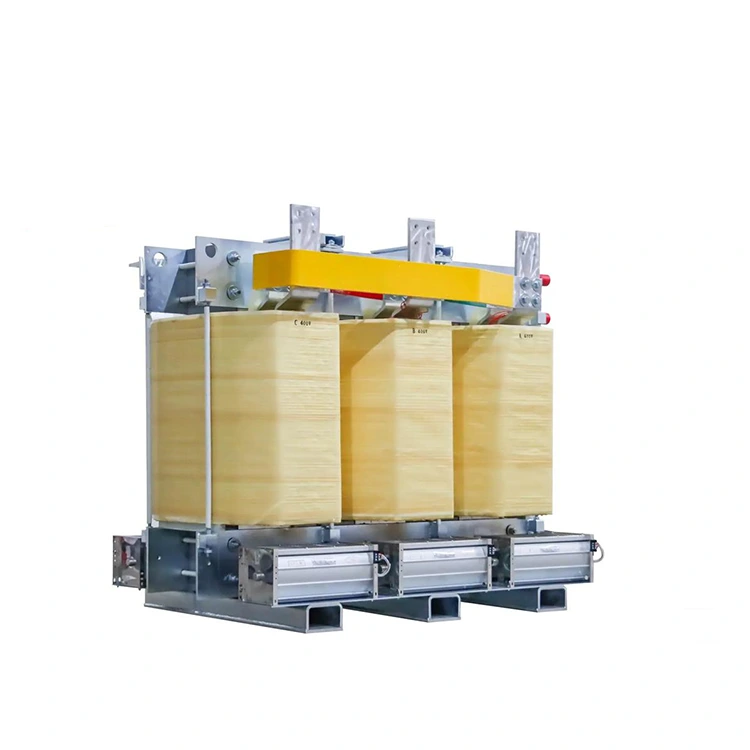

45kva Cast Resin Dry Type Transformer

Conso Electrical Science and Technology Co., Ltd is an experienced factory to produce cast resin dry type transformer, oil immersed transformer and compact substation. Cosno Electrical also produce 45kva cast resin dry type transformers for terminal users and clients from shopping malls, office buildings, industrial production, and power gird system. The company has explored business to Oceania, Africa, the Middle East, and Central Asian countries, meanwhile, the company also is one of the reliable supply in State Grid of China. Conso Electrical Science and Technology Co., Ltd wish to develop a solid and long term relationship to clients for overseas and domestic of China.

Send Inquiry

Product Description

Low voltage 45kva cast resin dry type transformers are electrical devices designed to reduce input voltage to a suitable output level, which are widely used in industrial, commercial, and residential applications. The major function of a 45kva cast resin dry type transformer is to convert primary voltage to a suitable level through electromagnetic induction. It provides the appropriate power required by various electrical equipment. Low voltage 45kva cast resin dry type transformers typically feature high efficiency which is up to 98% , low energy loss, and stable voltage output.

When selecting a low voltage 45kva cast resin dry type transformer, several factors should be considered:

Voltage ratio: Ensure that the input and output voltages match the technical specification of the target equipment.

Rated power: Choose a suitable capacity that matches the load demand.

Cooling method: Select natural or forced air cooling based on the working environment.

Protection level: Decide between open or enclosed designs according to environmental conditions.

Typical applications of low voltage cast resin dry type transformers include:

Industrial production lines: Providing stable voltage for machinery and equipment in workshop.

Building distribution systems: Supplying low voltage power for commercial and residential buildings to reduce the energy consume.

Renewable energy systems: Voltage conversion for solar inverters or similar applications.

Product Parameter:

Rated Capacity	45 kVA
Voltage Ratio	240/110 V; 480/120 V; 220/110 V; 240/120 V
Phase Number	Single Phase or Three Phase
Impedance	4% to 6%
No LoadCurrent	2.0% to 2.8%
No Load Loss	120 W to 180 W
Load Loss	650 W to 900 W
InsulationClass	Class B; Class F; Class H
Cooling Type	AN or AF
Protection Level	IP00; IP23; IP44
