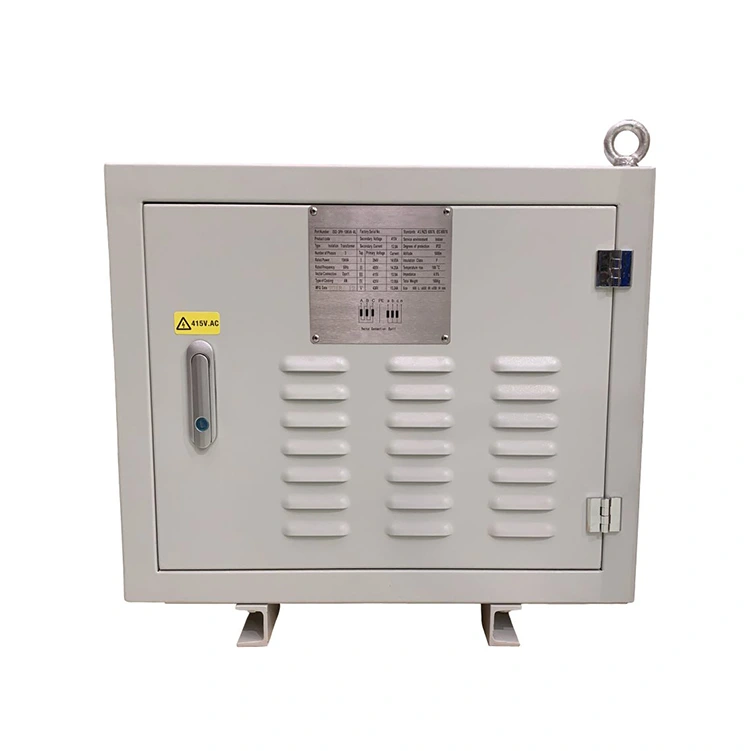

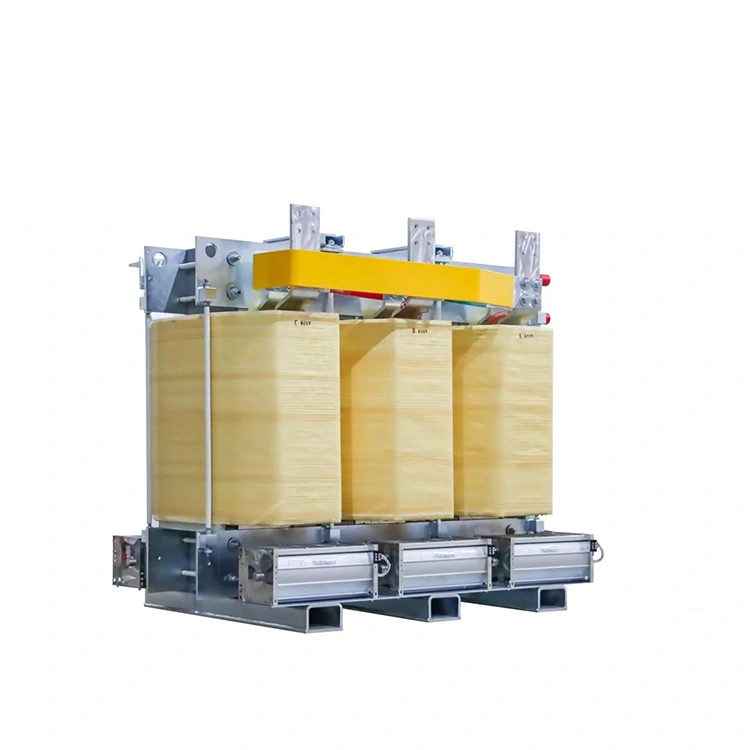

480 to 120 112.5 Kva Dry Type Transformer

Conso Electrical Science and Technology Co., Ltd is a professional manufacture to produce distribution transformers, compact substations and electrical panel. To produce a reliable 480 to 120 112.5 kva dry type transformer, Conso Electrical will check the specification of raw material to match the purchasing list, such as copper winding and prepreg. Before each 480 to 120 112.5 kva dry type transformer delivered, each unit will take serious factory test, such as temperature rise test, withstand voltage test, no load/load loss test, and etc. Conso Electrical Science and Technology Co., Ltd aims to produce solid quality products to develop a long term relationship with clients from overseas and domestic.

Send Inquiry

Product Description

480 to 120 112.5 kva dry type transformers have a very promising future in the new energy sector. As renewable technologies continue to advance and achieve wider adoption, the application of clean energy, such as solar and wind power, has been increasing steadily. This shift requires a large number of power transformers to support energy transmission and distribution. Because of their distinctive advantages, 480 to 120 112.5 kva dry type transformers are expected to play an increasingly important role in this field.

To begin with, 480 to 120 112.5 kva dry type transformers contain oil free and produce no pollution, which greatly reduces the risk of fire or explosion in working conditions, such as when exposed to radiant heat. This contributes significantly to the stability and safety of grid operation. Such qualities are essential for renewable power systems, especially in urban environments or densely populated areas where safety standards are particularly stringent.

In addition, 480 to 120 112.5 kva dry type transformers offer strong adaptability. They can be installed indoors or outdoors, and their dimension and capacity can be customized to meet technical specification of projects. Low voltage dry type transformers also have a long service life and require relatively little installation space to give them clear advantages in high altitude renewable energy sites. Since many renewable projects are located in remote regions or elevated areas with harsh and unpredictable climates, the use of air as the insulating medium allows low voltage dry type transformers to cope more easily with challenging environmental conditions.

Product Parameter:

Rated Capacity	112.5 kVA
Primary Voltage	400V; 415V; 480V; 600V; 800V
Secondary Voltage	400→230 V;380→220 V;480→208/120 V
Rated Frequency	50 Hz; 60Hz
Phase Number	Three Phase
Vector Group	Dyn11 or Yyn0
Impedance	3.5% to 6%
Working Temperature	−25°C ~ +40°C
InsulationClass	Class B; Class F; Class H
Cooling Type	AN or AF
Protection Level	IP00; IP23; IP44
