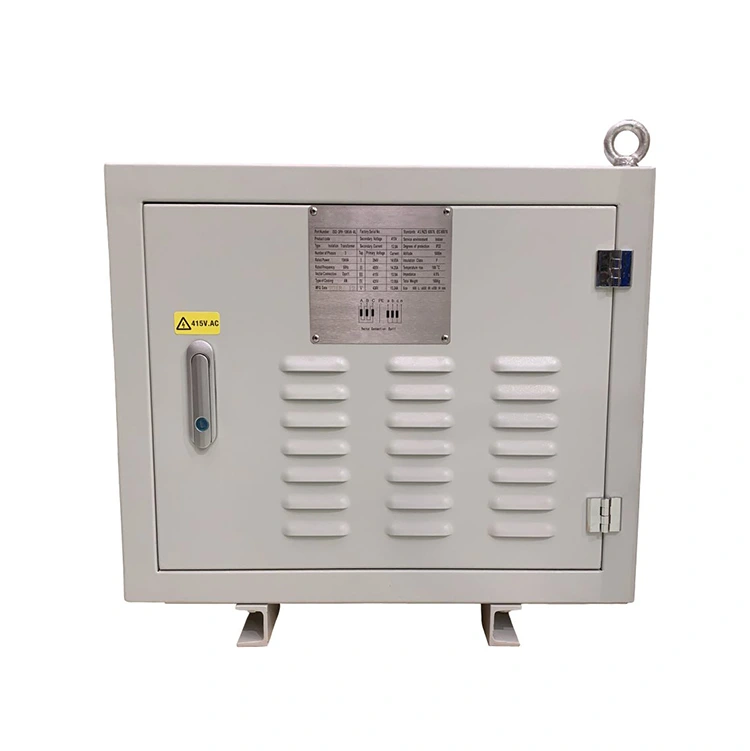

240 to 120 15 Kva Dry Type Transformer

Conso Electrical Science and Technology Co., Ltd is a professional manufacture, which has produced 240 to 120 15 kva dry type transformer since 2006. The sales team will check technical specification to clients from the terminal users before selling. When the order placed, the engineer team will design a 240 to 120 15 kva dry type transformer as the technical specification, meanwhile, to ensure the 15 kva dry type transformer has a better performance on heat dissipation, Conso Electrical will reasonable optimize internal structure of a 240 to 120 15 kva dry type transformer, specially the cooling air duct inside the unit.

Send Inquiry

Product Description

1. Power Systems

In power distribution systems, 15 kva dry type transformers are commonly used for energy distribution and voltage conversion. They are installed within distribution networks to step down primary voltage electricity to a suitable voltage levels for terminal users, which ensure a stable and reliable power supply system. Their strong overload capability and excellent short circuit resistance also make 240 to 120 15 kva dry type transformers as an important component in protect the safe operation for the entire power grid system.

2. Industrial Applications

In industrial environments, 15 kva dry type transformers provide stable power for a wide range of production equipment. Factories often have the trouble of harsh operating conditions such as high temperatures, humidity, and dust, which demand high reliability and environmental adaptability from the distribution transformer. Dry type transformers meet these requirements perfectly, of which the 15 kva dry type transformer operates continuously and reliably even under adverse conditions, thereby ensuring uninterrupted production and equipment stability.

3. Commercial Buildings

In Commercial complexes, it relies heavily on electrical systems to support lighting, HVAC, elevators, and other essential facilities. To guarantee reliable operation and reduce energy consumption, terminal user commonly prefer to install a low voltage dry type transformer for energy efficient. These 15 kva dry type transformers offer high efficiency and low losses, and many models include intelligent control features that adjust output voltage and current based on real time demand to reduce energy consume and operating costs.

Product Parameter:

Rated Capacity	15 kVA
Rated Capacity	50Hz; 60Hz
Primary Voltage	690V; 480V; 400V; 380V; 230V
Secondary Voltage	400V; 380V; 230V; 115V
Phase Number	Single Phase or Three Phase
Impedance	3.5% to 4.5%
No LoadCurrent	≤2.0%
No Load Loss	60 W to 120 W
Load Loss	300 W to 500 W
Thermal Insulation System	Class B; Class F; Class H
Protection Class	IP00; IP23; IP44
Cooling Type	Air Natural or Air Forced
Enclosure Material	Stainless steel; Cold rolled steel; Aluminum alloy sheet
