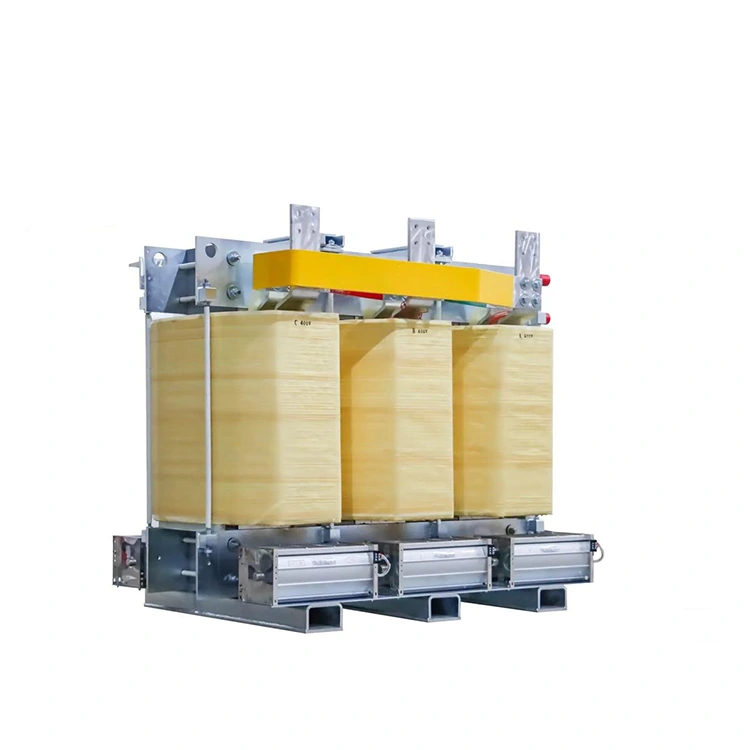

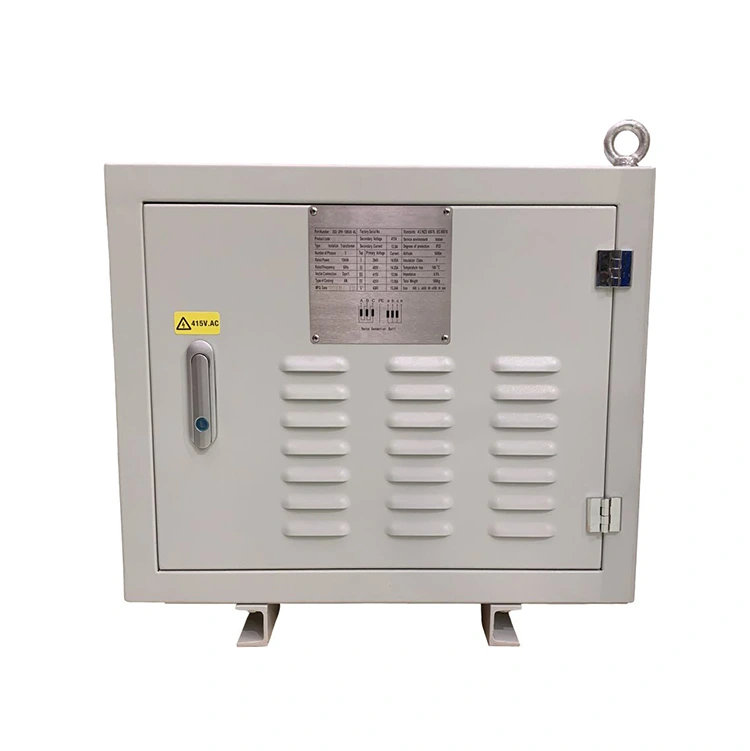

300 Kva Dry Type Isolation Transformer

Conso Electrical Science and Technology Co., Ltd is a factory which located in Yueqing Economic Development Zone Yueqing City Zhejiang Province China, of which the factory has produce 300 kva dry type isolation transformer since 2006. To manufacture a reliable dry type isolation transformer, Conso Electrical would confirm technical specification to clients from terminal users before selling. The workshop director will inspect raw material when arrived to Conso Electrical, meanwhile, to catch delivering schedule, intermediate components such as winding and enclosure will be inspect also. To ensure the finished 300 kva dry type isolation transformer meet the requirement of terminal users, Conso Electrical will provide factory test report for each unit.

Send Inquiry

Product Description

1. Electrical Isolation:

A 300 kva dry type isolation transformer physically separates the input and output windings, which provides complete electrical isolation between the two circuits. This separation could prevent unintended current paths from forming and reduces electrical interference and noise.

2. Safety Protection:

By isolating primary voltage systems from secondary voltage circuits, a 300 kva dry type isolation transformer offers an additional layer of safety for users who work with potentially hazardous electrical equipment.

3. Elimination of Ground Loops:

In systems with multiple grounding points, 300 kva dry type isolation transformers can eliminate ground loop problems caused by differences in ground potential. This helps reduce signal distortion and unwanted interference.

4. Voltage Conversion:

Although electrical isolation is the primary function, a 300 kva dry type isolation transformer can also be used for voltage transformation to meet the operating requirements of different devices.

5. Improved Signal Quality:

In audio, video, and other sensitive applications, dry type isolation transformers could drop electromagnetic and radio frequency interference, resulting in cleaner, higher quality signals.

Product Parameter:

Rated Capacity	300 kVA
Rated Frequency	50Hz, 60Hz
Primary Voltage	400 V, 415 V, 480 V, 600 V
Secondary Voltage	400 V, 230 V, 208 V, 220 V
Phase Number	Three Phase
Impedance	4% to 6%
No Load Loss	800 W to 1200 W
Load Loss	4800 W to 6000 W
InsulationClass	Class F (100K); Class H (115K)
Protection Class	IP23 (standard)
Protection Class	IP00; IP33; IP54 (optional)
Cooling Type	AN/AF
