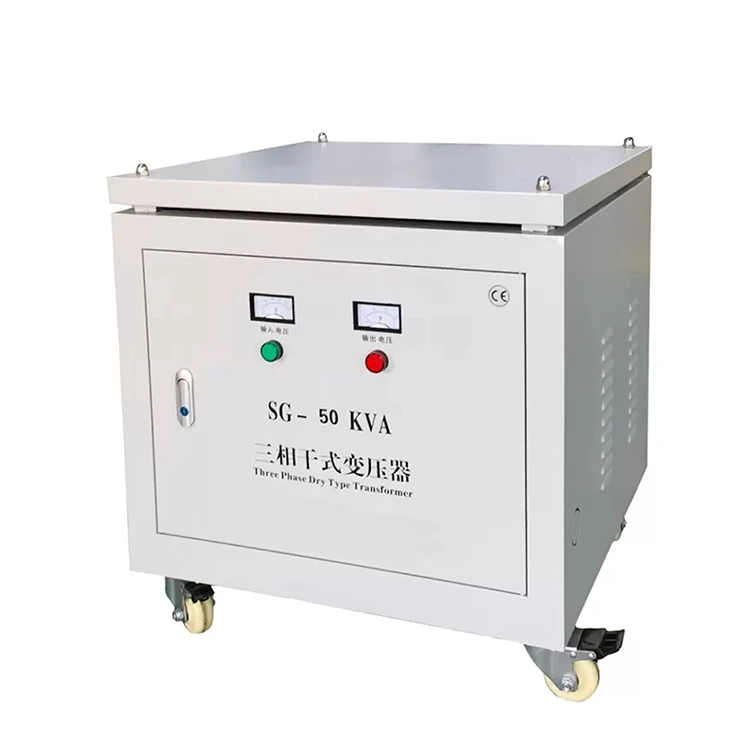

50 Kva Dry Type Transformer 110v to 240v

Conso Electrical Science and Technology Co., Ltd has produced 50 Kva Dry Type Transformer 110v to 240v since 2006. Conso Electrical strictly has followed ISO 9001 quality management system. Firstly, Conso Electrical start to control the quality of 50 kva dry type transformers 110v to 240v in the stage of purchasing. The raw material, such as transformer core, epoxy resin and copper winding, will be inspected before storing to match the specification with the purchasing list. Secondly, the workshop director will check processes executed correctly and smoothly in manufacturing. At the last, each 50 kva dry type transformers 110v to 240v will have a factory test before delivering to ensure the technical specification match to the demand.

Send Inquiry

Product Description

A 50 kva dry type transformer 110v to 240v is a power transformer that operates without mineral oil, of which the transformer uses natural air cooling or forced air cooling for heat dissipation. It is commonly installed in high rise buildings, substations, commercial complexes and other locations where fire protection, explosion resistance and moisture resistance are required. Since neither the core nor the windings use oil immersed insulation, meanwhile, the enclosure can be made of stainless steel, cold rolled steel or aluminum alloy, of which the enclose of lowe voltage dry type transformer offers flame retardant, explosion proof and maintenance free performance.

The product features of a 50 kva dry type transformer 110v to 240v can be show as the below:

1. A 50 kva dry type transformer 110v to 240v is flame retardant, explosion proof, non polluting and maintenance free. Meanwhile, it can be installed close to load centers to reduce overall project cost and operating expenses.

2. A 50 kva dry type transformer 110v to 240v has an excellent short circuit strength and high tolerance to lightning impulse stresses.

3. The enclosure of a 50 kva dry type transformer 110v to 240v is available in stainless steel, cold rolled steel or aluminum alloy. Cooling configurations include forced air and natural air designs. Meanwhile, cable input and output options can be top entry and top exit, bottom entry and top exit, or bottom entry and bottom exit.

4. A 50 kva dry type transformer can be equipped with a temperature monitoring and display system according to user requirements, and the dry type transformer can be integrated with an external temperature control system.

Product Parameter:

Rated Capacity	50 kVA
Primary Voltage	110 V; 120 V; 208 V
Secondary Voltage	240 V; 220V; 480 V
Impedance	4%± 10%
No Loading Loss	150 W to 200 W plus 15% tolerance
Loading Loss	1100 W to 1300 W plus 15% tolerance
Thermal Insulation System	Class F (155℃); Class H (180℃)
Insulation Material	Epoxy Resin
Cooling Type	AN/AF
Protection Class	IP23 for indoor; IP44 for outdoor
