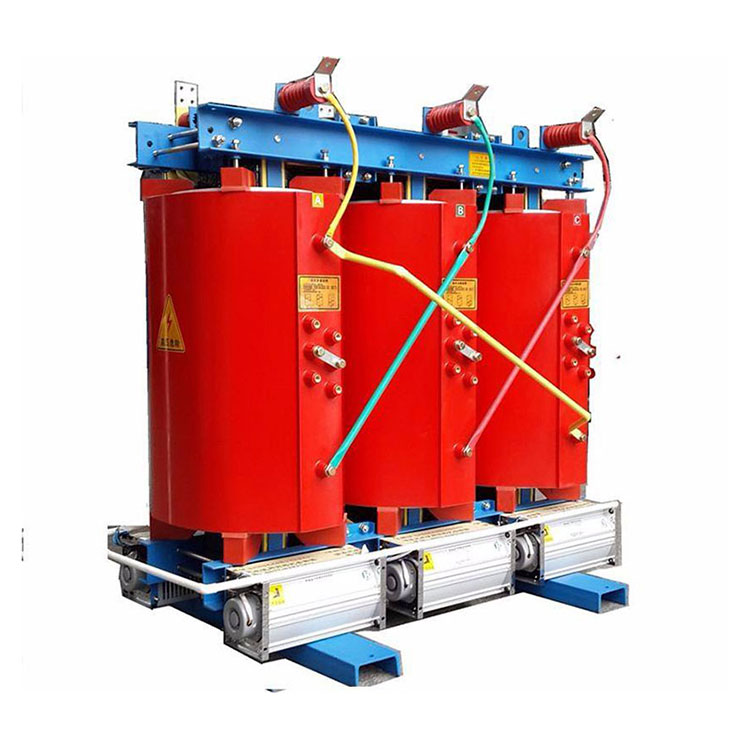

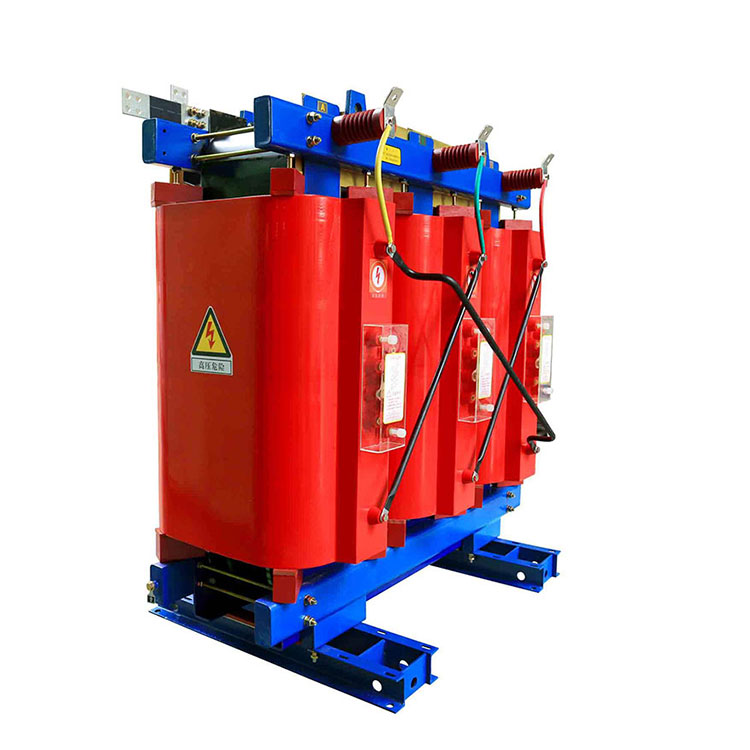

2500 Kva 2.5 Mva Dry Type Transformer

Conso Electrical Science and Technology Co., Ltd is located in Yueqing City,Zhejiang Province. It is a small and medium-size manufacturing firm, which owns about 12000m2 plant to produce 10 kv to 35kv power distribution transformer, sf6 GIS ring main unit, compact substation and vacuum circuit breaker. The company has a strong technical team to design a 2500 kva 2.5 mva dry type transformer in multiple solutions to match to requirements from clients. We are sincerely looking forward to global partnership opportunities.

Send Inquiry

Product Description

Video

The2500 kva 2.5 mva dry type transformer structural characteristics:

The2500 kva 2.5 mva dry type transformers are commonly used in high-performance environments due to their strong short-circuit resistance, low maintenance requirements, high operational efficiency, compact size, and low noise levels.

Safety, fire resistance, pollution-free operation at load centers.

Utilizing advanced domestic technology, high mechanical strength, strong short-circuit resistance, minimal partial discharge, excellent thermal stability, high reliability, and long service life.

Low losses, low noise, significant energy savings, and maintenance-free operation.

Excellent heat dissipation performance, robust overload capacity, and enhanced capacity operation when forced air cooling is applied.

Exceptional moisture resistance, suitable for operation in high humidity and harsh environments.

The2500 kva 2.5 mva dry type transformers can be equipped with comprehensive temperature monitoring and protection systems. They feature an intelligent signal temperature control system, which automatically detects and cyclically displays the operating temperatures of each phase winding, with automatic fan control, alarm, and trip functions.

Compact size, lightweight, minimal footprint, and low installation costs.

Technical Value:

Rated Capacity:	2500 kva or 2.5 mva;
Mode:	SCB(10)-2500 or depends;
No Loading Loss:	3800±15% W or depends
Loading Loss:	19190±15% W or depends;
Cooling System:	Air Nature/Air Forced;
Insulation Material:	Epoxy Resin;
Winding Material:	Copper or Aluminum;
Tapping Method:	offline Tap;
IP Rating:	IP00 (uncovered) / IP21 (with enclosure);
Overall Dimension:	155011701550 (mm)
