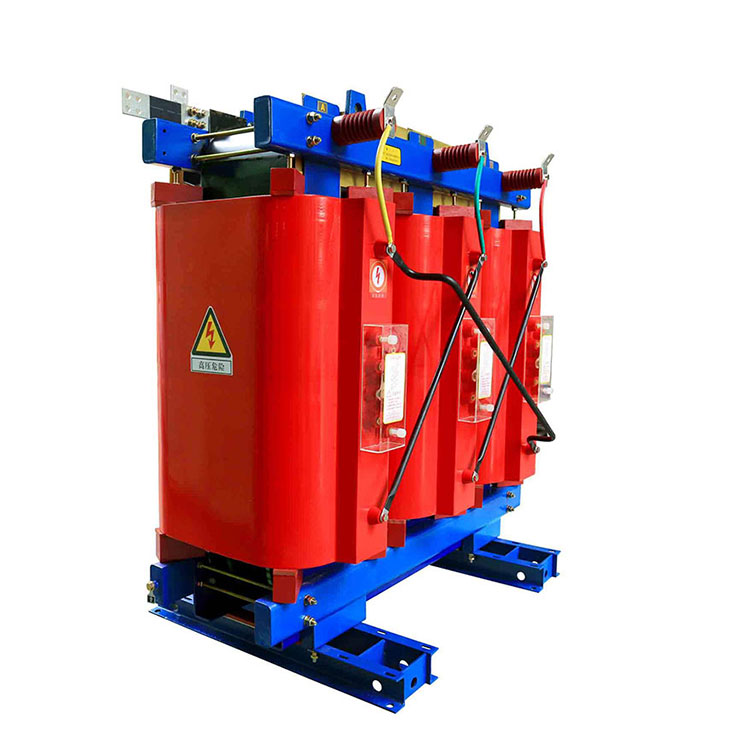

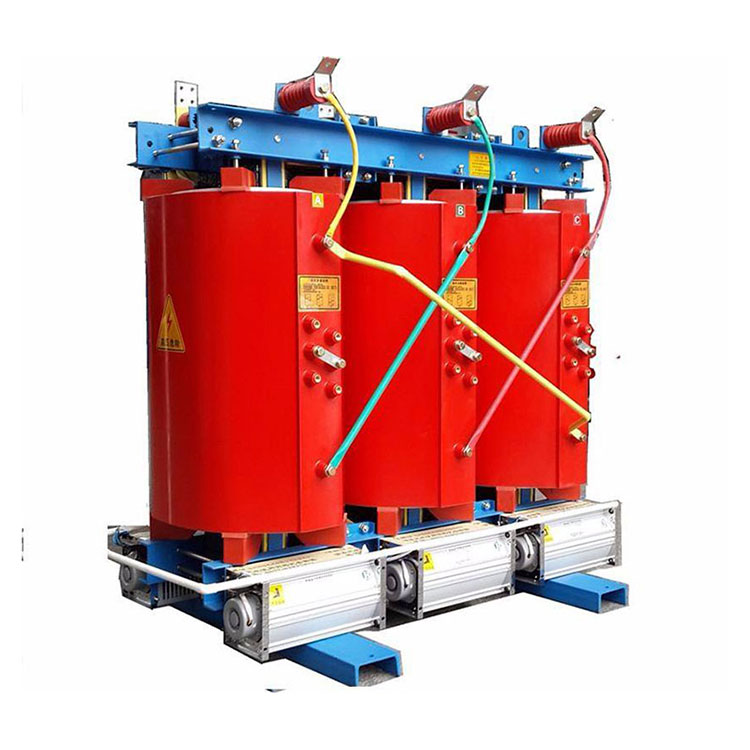

2000 Kva Dry Type Transformer

Since our inception in 2006, Conso Electrical Science and Technology Co., Ltd. has been dedicating all its resources to the production of dependable and high-quality 2000 kVA dry type transformers. In order to meet the marker demand, the company has accumulated production knowledge and enhanced the product development on epoxy resin transformers and modular substations to improve the product energy efficiency rating. We are lovely to produce 2000 kVA dry type transformers as the requirement from clients.

Send Inquiry

Product Description

Video

The 2000 kVA dry type transformer advantages:

Safety:

2000 kVA dry type transformers are widely used in applications that require high levels of safety, such as hospitals, schools, office buildings, and other public places. They do not rely on oil as an insulating material, which means that in emergencies like fires, they do not release any toxic or harmful gases. Additionally, there is no risk of oil leakage during their operation, resulting in minimal environmental impact. These factors make dry-type transformers a safer choice.

Maintainability:

Compared to2000 kVA oil immersed transformers,2000 kVA dry type transformers are easier to maintain. They do not require regular oil replacement or monitoring of oil contamination. When maintenance is required, simple cleaning and inspections are sufficient. This reduces maintenance costs and minimizes inconvenience for users.

Durability:

2000 kVA dry type transformers have a longer service life in power transmission and distribution systems. Since they are not susceptible to contamination from insulating oil, they can better withstand environmental pollution and everyday wear and tear. Additionally,2000 kVA dry type transformers are typically constructed using more durable materials, such as insulation materials that are highly heat-resistant, enabling them to withstand higher temperatures and loads.

Flexibility:

Due to the absence of oil-related considerations during transportation and installation,2000 kVA dry type transformers are relatively more flexible. For example, in certain situations, they can be more conveniently installed and adjusted. Because they are made from lighter materials, they can be moved to desired locations more easily. Furthermore, 2000 kVA dry type transformers can be installed in more diverse locations, as they do not require consideration of distance and positioning restrictions with other equipment.

Product Parameter:

Rated Capacity:	2000 kVA or 2 mVA;
Operating Mode:	SCB(10)-2000 or as required;
No-Load Loss:	2840±15% W or as needed;
Load Loss:	13940±15% W or as required;
Power Frequency withstand Voltage:	35kV;
Impulse withstand Voltage:	75kV;
Cooling Method:	Air Natural/Air Forced (AN/AF);
Noise Level:	≤70 dB;
Insulation Type:	epoxy resin type;
Dimensions:	165011001311 (mm) for the body.
