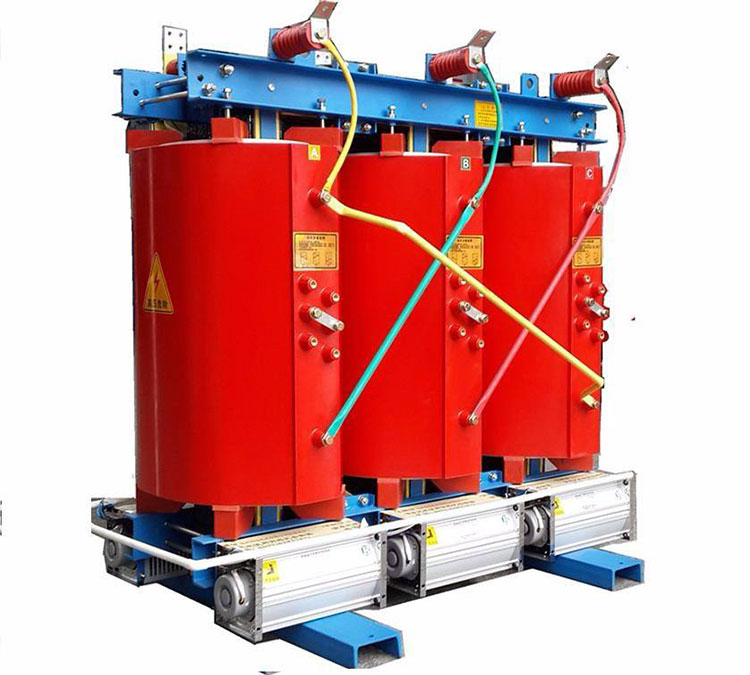

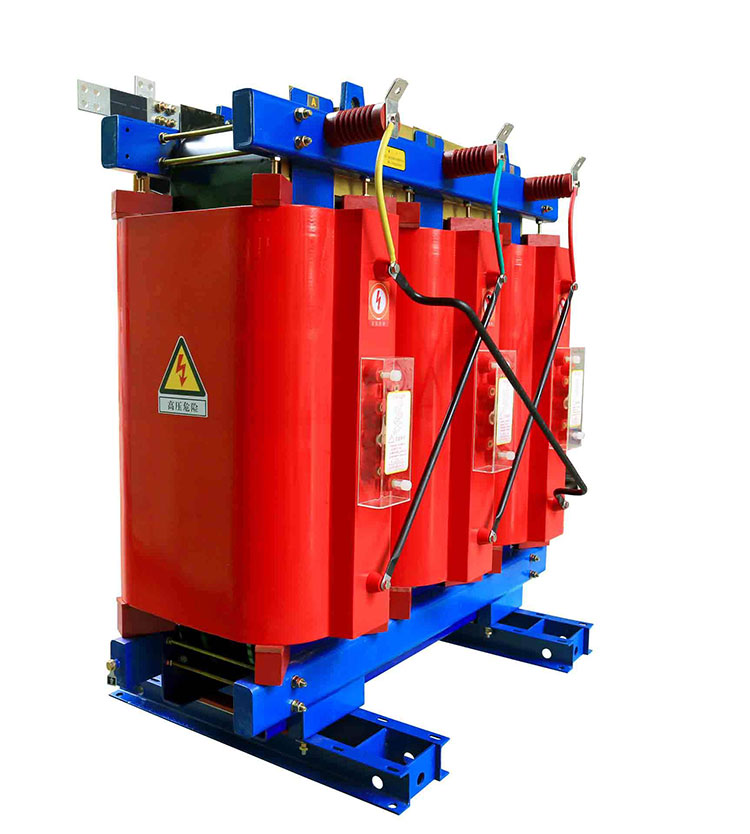

1600 kva cast resin type transformer is one of the most optimal solution to supply electricity to users who has the serious requirement on fireproof, such as a food processing plants, railway station, supermarket, and hospital. Meanwhile, compare with a 1600 kva oil immersed transformer, a 1600 kva cast resin type transformer does not impacted by the change of altitude and natural ambient temperature. In this case, a 1600 kva cast resin type transformer is also a excellent solution for users in high altitude area or in a movable compact substation.
Obviously, 1600 kva cast resin type transformer can support 1600 kva electricity in hour totally. However, not all electricity is used on energy conversation. A minor part of electricity is used to keep the voltage stable and improve power transmission efficiency. In most of countries and areas, the reactive power cannot be larger than 10% of apparent power. Thus, a 1600 kva cast resin type transformer can support 1440 kW electricity on energy conversation.
Rated Capacity: |
1600 kva |
Mode: | SCB(10)-1600 or depends; |
No Loading Loss: | 3240±15% W or depends |
Loading Loss: | 18640±10% W or depends; |
Phase Number: | three phase; |
Tapping Method: | ±2*2.5%, OFFLTC; |
Cooling Method: | AN/AF; |
Vector Group: | Dyn11 or Yyn0; |
Enclosure Material: | aluminum alloy, 201 stainless steel; |
The Body Dimension: | 3450*2000*1600 (mm) |
Aluminum Alloy |
A Transformer with Enclosure |
Stainless Steel |
Winding |
Casting Resin |
Ready to assemble |
Amorphous Alloy Core |
Winding Workshop |
Casting Storage Area |
Winding Drying Area |
Finished Product Storage |
Transformer Oven |
Casting Equipment |
Foil winding machine |
