1500 1600 Kva Dry Type Transformer

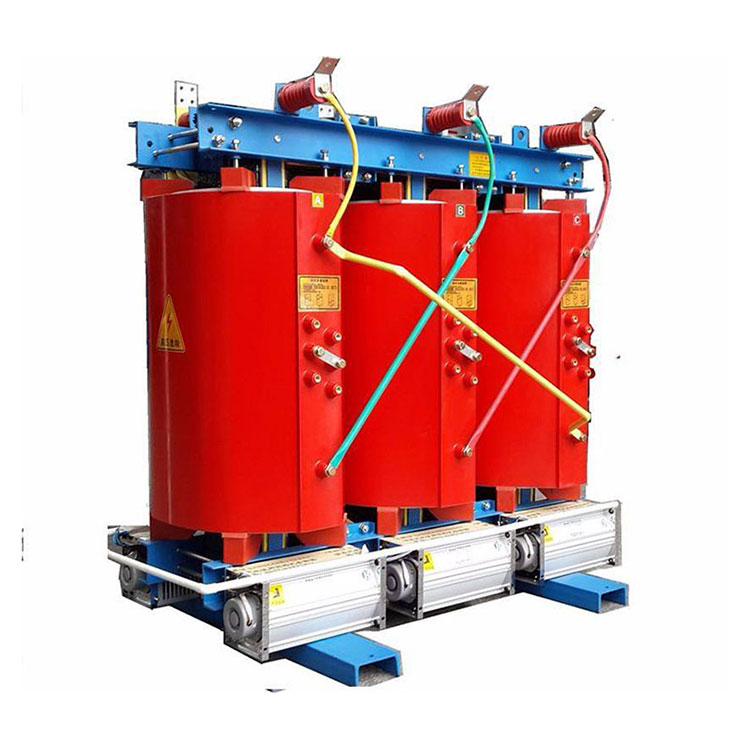

  • 1500 1600 Kva Dry Type Transformer1500 1600 Kva Dry Type Transformer

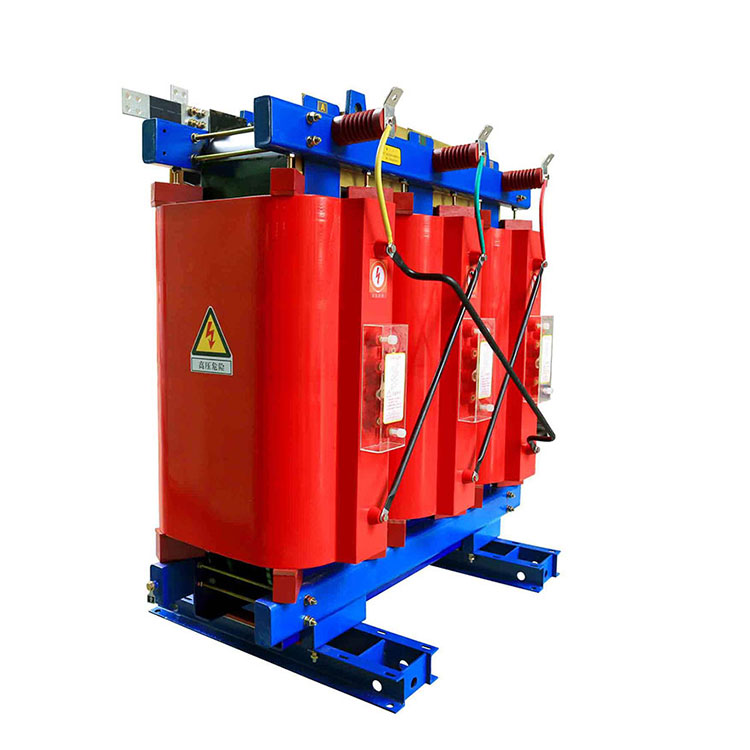

  • 1500 1600 Kva Dry Type Transformer1500 1600 Kva Dry Type Transformer

1500 1600 Kva Dry Type Transformer

onso Electrical Science and Technology Co., Ltd. is a industry specific production company in the area of medium voltage power and distribution transformer. The production workers in conso electrical have about 10 years experience in assembling The 1500 1600 kVA dry type transformer. Meanwhile, the company equips intelligent production machinery to control the quality of a 1500 1600 kVA dry type transformer, such as automatic pouring equipment. We're genuinely interested in pursuing international cooperation and partnerships.

Send Inquiry

Product Description

Video



The 1500 1600 kVA dry type transformer inroduction:


1500 1600 kVA dry type transformers are widely used in various applications, including local lighting, high-rise buildings, airports, ports, CNC machinery, and more. In simple terms, dry-type transformers refer to transformers where the core and windings are not immersed in insulating oil.

1500 1600 kVA dry type transformers have two cooling methods: natural air cooling (AN) and forced air cooling (AF). When naturally air-cooled, the transformer can operate continuously at its rated capacity for an extended period. With forced air cooling, the transformer's output capacity can be increased by 50%. This is suitable for intermittent overload operation or emergency overload situations. However, it's not advisable to operate the transformer under continuous overload conditions for an extended period due to increased load losses and impedance voltage amplification during overload, which results in uneconomical operation.

Note: The abbreviations AN and AF stand for "natural air cooling" and "forced air cooling," respectively.


Product Parameter:


Rated Capacity:  1600 kva, 1500 kva;
Mode: SCB(10)-1600 or depends;
No Loading Loss:   2400±15% W or depends
Loading Loss:  13100±15% W or depends;
Cooling System:  Air Nature/Air Forced;
Winding Material: 100% Copper or 100% Aluminum;
Vector Group:  Dyn11 or Yyn0;
Protection Rating: IP00 for the body, IP21 when enclosed;
Enclosure Material Options:  aluminum alloy or stainless steel;
The Body Dimension:  1410*1100*13780 (mm)


CONSO·CN 1500 1600 kVA dry type transformer and Enclosure:


Aluminum Alloy

A Transformer with Enclosure

Stainless Steel


CONSO·CN 1500 1600 kVA dry type transformer in Process:


Winding

Casting Resin

Ready to assemble

Amorphous Alloy Core


CONSO·CN 1500 1600 kVA dry type transformer Workshop:


Winding Workshop

Casting Storage Area

Winding Drying Area

Finished Product Storage


1500 1600 kVA dry type transformer Testing Center:



1500 1600 kVA dry type transformer Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine


CONSO·CN 1500 1600 kVA dry type transformer on Storage:




1500 1600 kVA dry type transformer FAQ:


How to start an customized order of a 1500 1600 kVA dry type transformer ?

A: first, we need the technical requirement document or the specification sheet from client; And then, our engineer will design as the document;

At last, we will send the quotation according to the calculation from our engineers. Normally, it will take one to three days.

Do you have a minimum order requirement on 1500 1600 kVA dry type transformer ?

A: for the 1500 1600 kVA dry type transformer, Conso Electrical does not have the MOQ. The client can order one piece the transformer.

Can a 1500 1600 kVA dry type transformer be used out the door ?

A: a 1500 1600 kVA dry type transformer can be used eight indoor or outdoor as long as the protection rate reach to the requirement.

What is protection in a 1500 1600 kVA dry type transformer ?

A: a 1500 1600 kVA dry type transformer shall have Gas Protection, Temperature Protection, Fast Trip Protection ,Overcurrent Protection, and Zero Sequence Protection.
