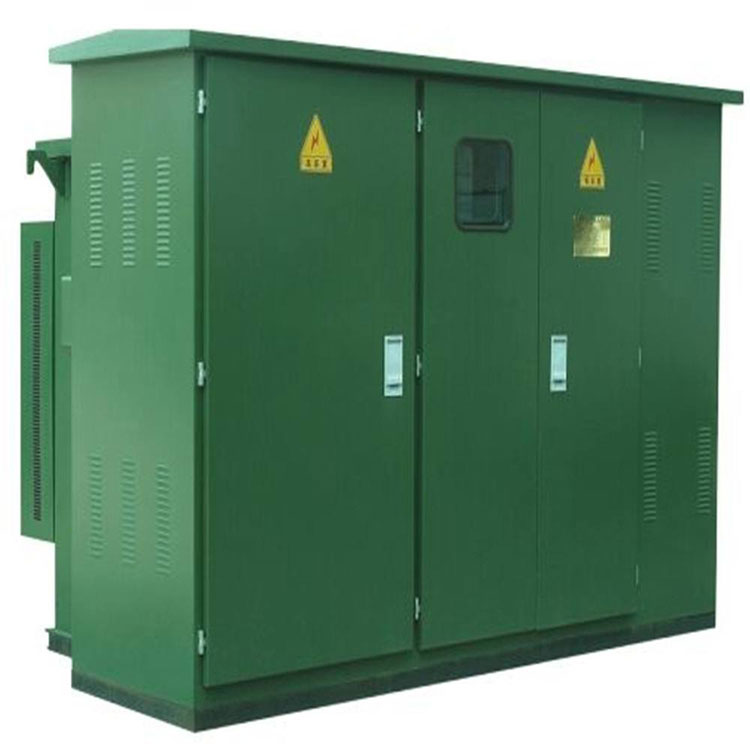

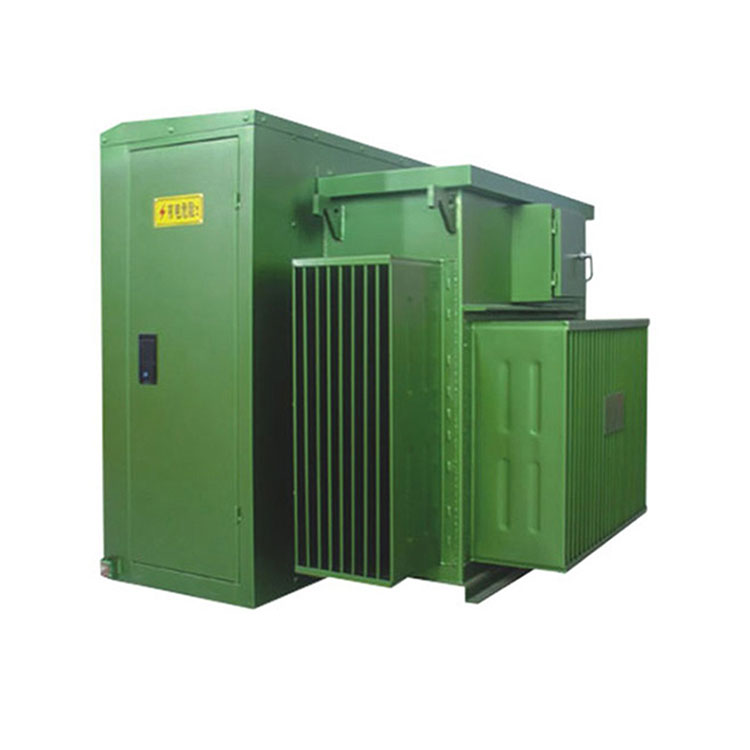

500 Kva Pad Mounted Transformer

Compare with a 500 kva compact substation, a 500 kva pad mounted transformer has the same basic function and the less area occupied, which could load into a 20GP or 40GP container. Conso Electrical Technology and Science Co., Ltd is the manufacture to produce 500 kva pad mounted transformers from the year of 2006. the company could produce 20 pieces of 500 kva pad mounted transformer in 30 days. Before shipping, each of pad mounted transformer will have the required test. We wish our pad mounted transformers would bring a comfortable user experience to clients.

Send Inquiry

Product Description

Video

500 kva pad mounted transformer Maintenance：

1.Regular Cleaning:

500 kva pad mounted transformers are prone to dust and oil buildup on the surface. Regular cleaning should be performed using a dry cloth or a soft brush. Avoid using a wet cloth to prevent electrical short circuits.

2.Preventing Moisture Ingress:

Humidity and moisture can damage the 500 kva pad mounted transformer, so it's important to maintain a dry environment around the transformer. You can install humidity regulators near the 500 kva pad mounted transformer and promptly address any water leakage issues to prevent moisture from entering the equipment.

3.Temperature Control:

Excessive temperatures can affect the normal operation of the 500 kva pad mounted transformer. Therefore, it's essential to control the ambient temperature and the 500 kva pad mounted transformer's internal temperature. Ventilation and cooling equipment can be used to reduce the 500 kva pad mounted transformer's temperature and prevent overheating, which could lead to equipment damage.

500 kva pad mounted transformer Technical Parameter:

Mode Number:	ZGS11-500;
Rated Capacity:	500 kva;
Primary Voltage:	10.5 kV, 15 kV, 30 kV or depends;
Secondary Voltage:	0.24kV, 0.433 kV or depends;
Protection Rate:	IP68 for Transformer Tank, IP54 for Enclosure;
Vector Group:	Dyn11, Yyn0;
Core material:	cold rolled grain oriented steel or Amorphous Alloy;
Working temperature:	-40 ℃ to 40 ℃;
Rated Frequency:	50 or 60Hz;
Rated Breaking Current:	50 KA.
