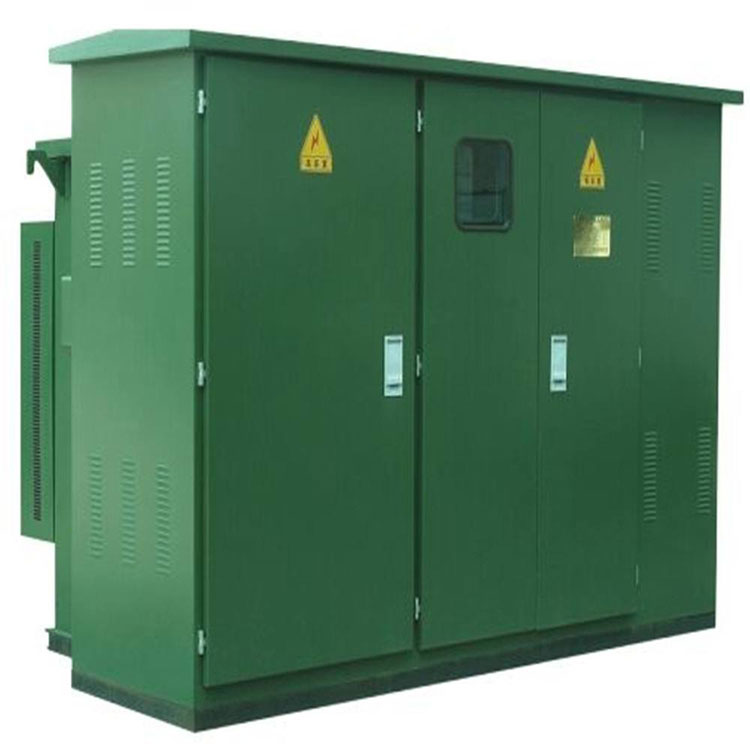

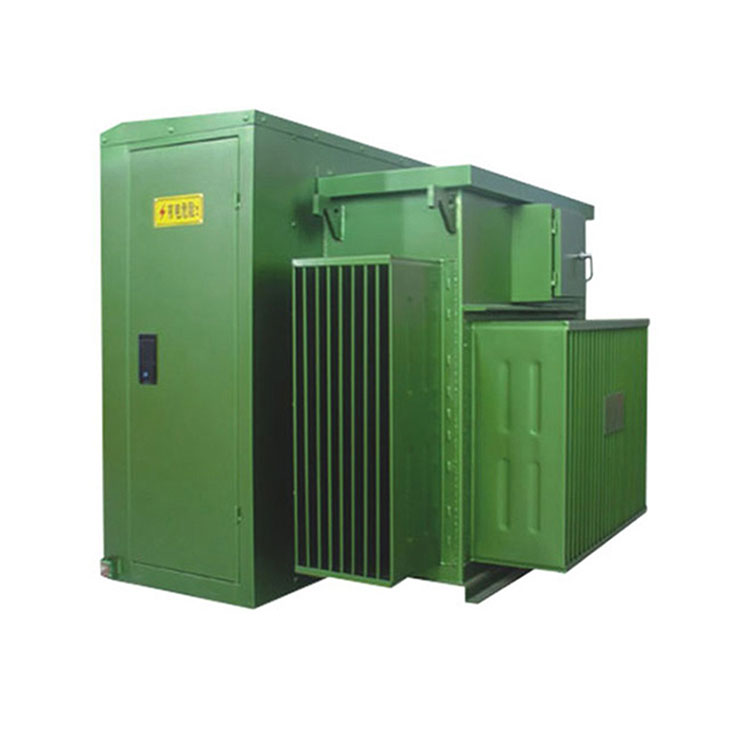

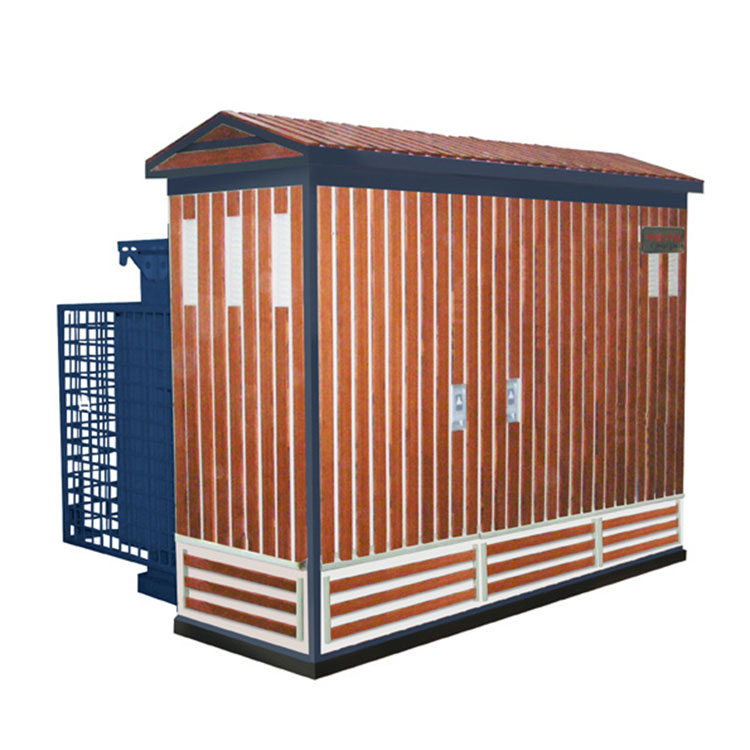

2000 Kva Ground Pad Mounted Transformer
  • 2000 Kva Ground Pad Mounted Transformer2000 Kva Ground Pad Mounted Transformer
  • 2000 Kva Ground Pad Mounted Transformer2000 Kva Ground Pad Mounted Transformer
  • 2000 Kva Ground Pad Mounted Transformer2000 Kva Ground Pad Mounted Transformer

2000 Kva Ground Pad Mounted Transformer

Conso Electrical Science and Technology Co., Ltd has produced 2000 kva ground pad mounted transformer since 2006 in Central Industry Park of Yueqing, Yueqing City, Zhejiang province, China. Conso Electrical has collected plenty experience and solution from cooperation with distributors and terminal users. Conso Electrical exported 35 kv pad mounted transformer to Cameroon, and 35 kv solar compact substation to Samoa. The company also supply a 35/10 kv 16 mva power transformer and a set of switchgear to Wudongde hydroelectric power station in Sichuan province. The development of Conso Electrical always accompany with the support of clients.

Send Inquiry

Product Description

Video



2000 kva ground pad mounted transformer Introduction:


Obviously, a 2000 kva ground pad mounted transformer could support 2000 kva appearance power to users. However, users can not connect 2000 kW electrical consumer units to a 2000 kva ground pad mounted transformer. It because a bit part of the 2000 kva power is used to keep voltage stable, which is called reactive power. Normally, in most of country and areas, it enforces the reactive power cannot exceed 10% of appearance power. Therefor, a 2000 kva pad ground pad mounted transformer could supply at least 1800 kW active power to users for energy conversation.

However, it is harmful to the 2000 kva ground pad mounted transformer that fully load during running time. It will cause the actual service life lower than the designed. Fortunately, the 50% to 80% of load rate could bring the 2000 kva ground pad mounted transformer to the best state, which the energy consumption is the lowest.

In additional, to keep the 2000 kva ground pad mounted transformer in an ideal usage. Normally, the 20% to 40% of rated transformer capacity is needed to equip on the 2000 kva ground pad mounted transformer as reactive power compensation device.


2000 kva ground pad mounted transformer Technical Parameter:


Mode Number:  ZGS11-2000;
Rated Capacity:  2000 kva;
Capacity of capacitor:  20% to 40%;
Rated Frequency:  50 Hz or 60 Hz;
Primary Voltage:  10kV, 11kV, 13.8kV or depends;
Secondary Voltage:  0.4 kV,0.415 kV or depends;
Power Frequency withstand Voltage:  35kV;
Lighting Impulse withstand Voltage:  75kV;
Installation Environment:  outdoor;
Average Altitude:  ≤1000M.


CONSO·CN 2000 kva ground pad mounted transformer Detail:


Primary Distribution Side
Transformer Body
Secondary Distribution Side


Corrugated Radiator
Panel-Type Radiator


CONSO·CN 2000 kva ground pad mounted transformer Workshop:



2000 kva ground pad mounted transformer in Process:



2000 kva ground pad mounted transformer Testing Center:



CONSO·CN 2000 kva ground pad mounted transformer Ready to Ship:
