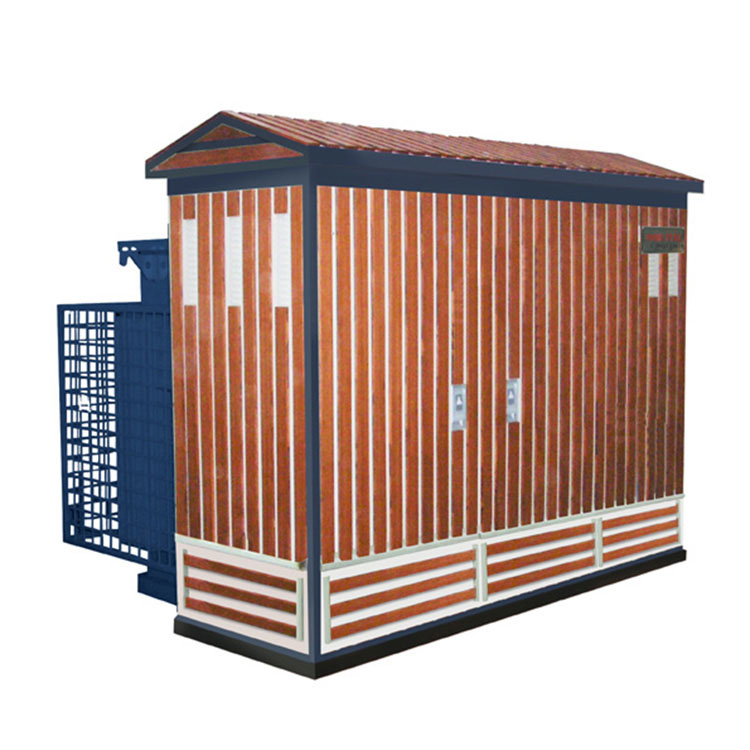

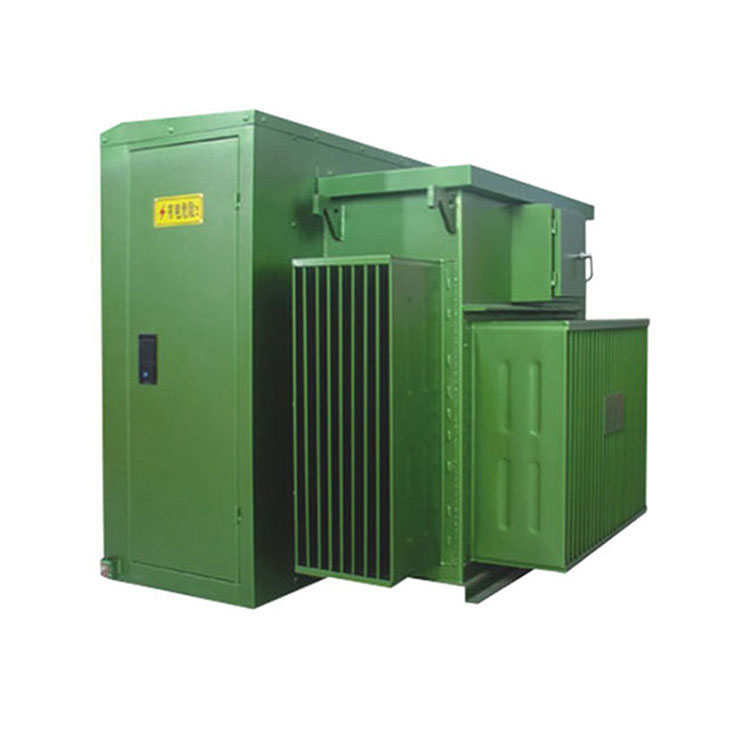

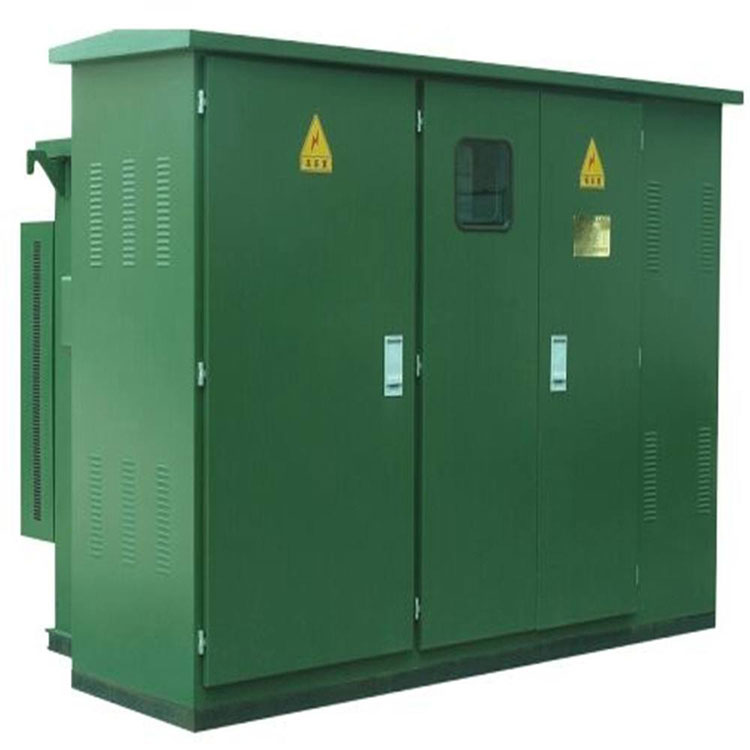

2500 Kva Three Phase Pad Mounted Transformer
  • 2500 Kva Three Phase Pad Mounted Transformer2500 Kva Three Phase Pad Mounted Transformer
  • 2500 Kva Three Phase Pad Mounted Transformer2500 Kva Three Phase Pad Mounted Transformer
  • 2500 Kva Three Phase Pad Mounted Transformer2500 Kva Three Phase Pad Mounted Transformer

2500 Kva Three Phase Pad Mounted Transformer

As a 10 kV to 35 kV electrical equipment manufacturer, Conso Electrical Science and Technology Co., Ltd major produce distribution transformers, pad mounted transformers, compact substations, gas insulated switchgears and Vacuum circuit breakers. In Conso Electrical, the management team aims to distribute the impact of product technology, not only simply selling 2500 kva three phase pad mounted transformers. The technology team will design each 2500 kva three phase pad mounted transformer to fit the demands of terminal users. In the quality control, the producing team strictly follows the requirement of ISO 9001 quality management system to manufacture 2500 kva three phase pad mounted transformers. Conso Electrical believes a solid relationship of cooperation would bring a stable development.

Send Inquiry

Product Description

Video



2500 kva three phase pad mounted transformer Advantages:


Convenient to Installation: a 2500 kva three phase pad mounted transformer is an electrical facility to combine with a distribution transformer, controlling unit, protecting unit and measuring unit. That is to say, a 2500 kva three phase pad mounted transformer has a smaller dimension than a 2500 kva compact substation. Ever more, the structure of a 2500 kva three phase pad mounted transformer is more simple and clear, which is easy to test before installing.

High Space Utilization: it benefits from the compact designing. The 2500 kva three phase pad mounted transformer has a flexible dimension than a compact substation. Therefore, a  2500kva three phase pad mounted transformer can fit any outdoor working environment where every inch land is valuable.

Beautiful appearance: the enclosure of a 2500 kva three phase pad mounted transformer is made by 1.8mm cold rolled steel plate. Conso Electrical could paint the enclosure as the requirements of clients, even it is the artwork from Van Gogh.


2500 kva three phase pad mounted transformer Technical Parameter:


Mode Number:  ZGS11-2500;
Rated Capacity:  2500 kva;
Primary Voltage:  10kV, 11kV, 13.8kV or depends;
Secondary Voltage:  0.4 kV,0.23kV or depends;
Cooling method:  ONAN;
Working Temperature:  -40 ℃ to 40 ℃;
Noise Level:  not greater than 55dB;
Power Frequency withstand Voltage:  35kV;
Lighting Impulse withstand Voltage:  75kV;
Rated Breaking Current:  50 KA.


CONSO·CN 2500 kva three phase pad mounted transformer Detail:


Primary Distribution Side
Transformer Body
Secondary Distribution Side


Corrugated Radiator
Panel-Type Radiator



CONSO·CN 2500 kva three phase pad mounted transformer Workshop:



2500 kva three phase pad mounted transformer in Process:



2500 kva three phase pad mounted transformer Testing Center:



CONSO·CN 2500 kva three phase pad mounted transformer Ready to Ship:
