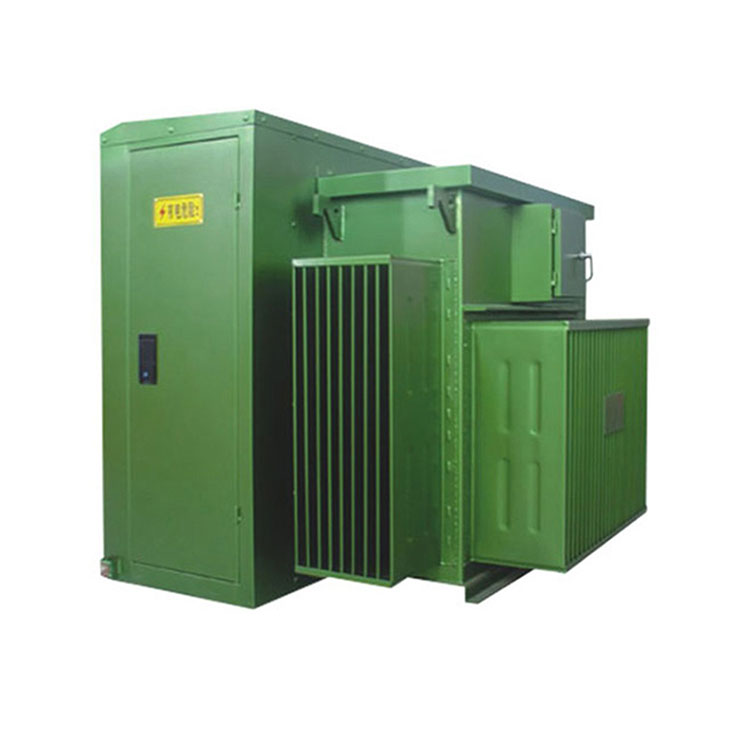

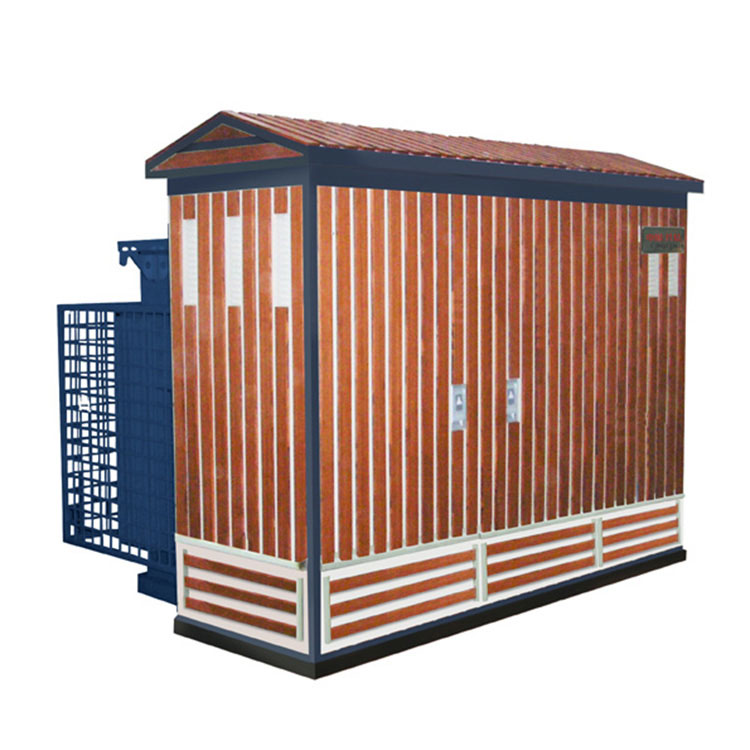

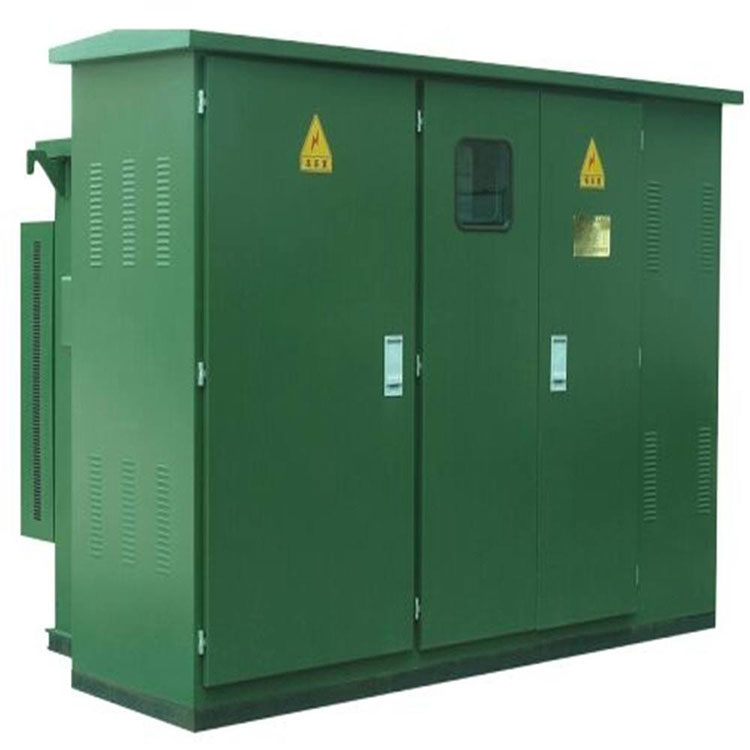

25 Kva Pad Mounted Transformer 3 Phase

A 25 Kva Pad Mounted Transformer 3 Phase typically is designed for small electricity consumers such as public lighting system, small residential. Conso Electrical Technology and Science Co., Ltd developed a serious quality management system to produce pad mounted transformers. The management will inspect start from the purchasing incoming materials until a pad mounted transformer accessed the factory tests. Each pad mounted transformer has 12 month Warranty start from the date of installation and usage. Our goal is to provide a great user experience for customers.

Send Inquiry

Product Description

Video

25 kva pad mounted transformer 3 phase Introduction：

Maintenance:

1.Perform an annual oil analysis on the transformer oil, and top up the oil level if it is too low.

2.After a fuse has blown, promptly investigate the cause and replace it with the specified model.

3.After an automatic trip of low voltage switchgear, immediately identify the cause. If electrical components need replacement, ensure proper fastening of the fittings.

4.Conduct a preventive performance test on surge arresters before and after the thunderstorm season each year.

Option Tips:

1.Before operating the pad-mounted transformer, pull out the pressure relief valve to release the pressure inside the tank.

2.Before removing plug-in fuses, ensure the power source and secondary load are disconnected, and release the pressure in the oil to prevent hot oil from splashing.

3.When operating the load switch, rotate the handle to the correct position. The load switch is used to disconnect loads below the rated current value.

4.Before operating the de-energized tap changer switch, confirm that the secondary of the substation is without a load, and that the primary is disconnected from the power source.

25 kva pad mounted transformer 3 phase Technical Parameter:

Mode Number:	ZGS11-25;
Rated Capacity:	25 kva;
Primary Voltage:	11 kV or depends;
Secondary Voltage:	0.433 kV or depends;
Protection Rate:	IP68 for Transformer Tank, IP54 for Enclosure;
Altitude:	not exceed 2000 m above the sea level;
Rated Frequency:	50 or 60Hz;
Insulation Material:	25# 45# Mineral Oil;
Vector Group:	Dyn11; Yyn0;
Rated Breaking Current:	50 KA.
