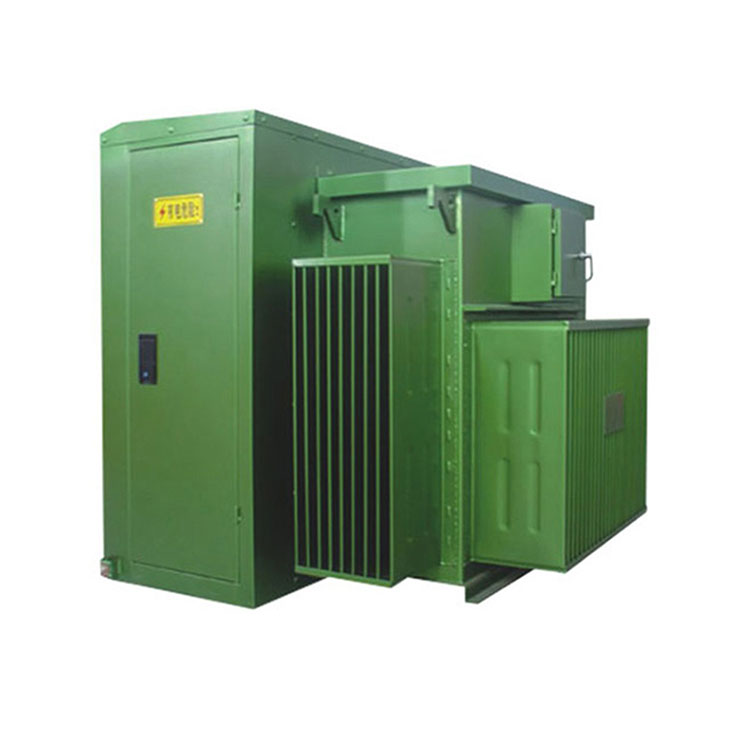

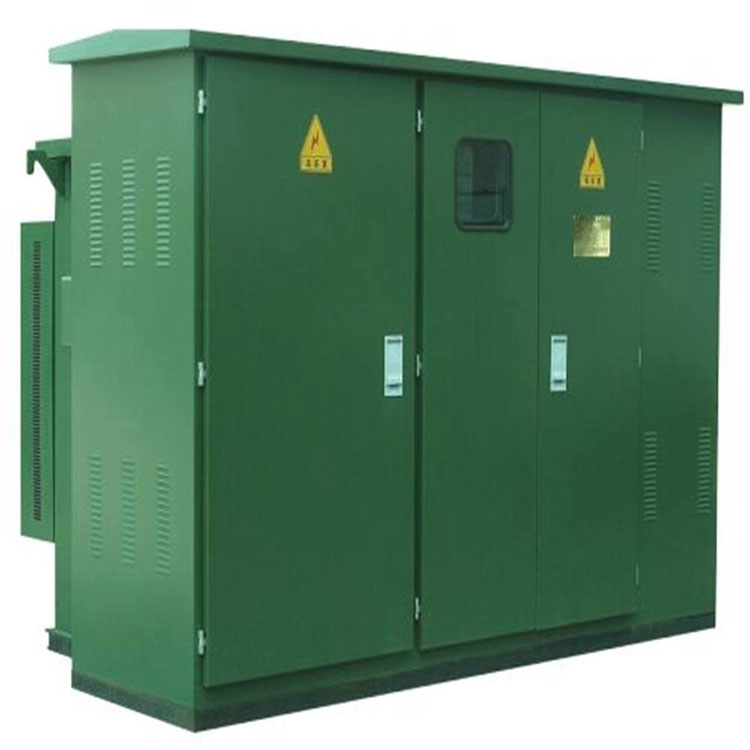

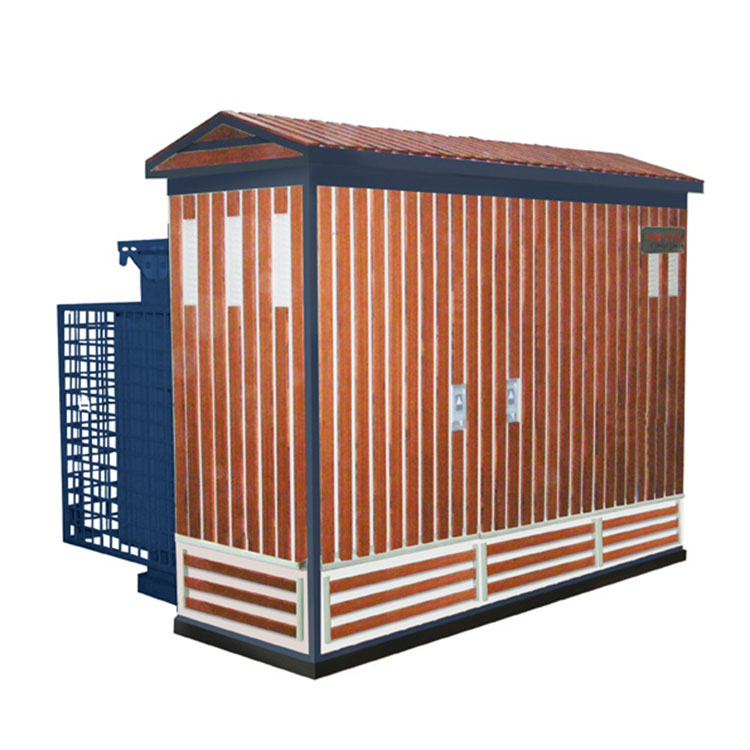

Before using the 1000 kva pad mounted transformer transformer, a comprehensive equipment inspection should be conducted:
A. Ensure the reliable connection of the high-voltage plug; verify the grounding of surge arresters and the 1000 kva pad mounted transformer.
B. Check the normal operation of various meter pointers on the high-voltage side.
C. Verify if the plug-in fuses are properly installed, and if the tap changer is in the correct position.
D. Ensure that the load switch is in the off position.
E. All electrical components on the low-voltage side should be in the off position.
After completing the inspection, follow the installation and operating instructions provided with the respective accessories for installation and operation
Mode Number: | ZGS11-1000; |
Rated Capacity: | 1000 kva; |
Primary Voltage: | 10 kV, 22 kV, 35 kV or depends; |
Secondary Voltage: | 220V, 400V, 433V or depends; |
Protection Rate: | IP68 for Transformer Tank, IP54 for Enclosure; |
Tapping Method: | 5 steps each for 2.5%, offline tapping; |
Insulation Material: | 25# 45# Mineral Oil; |
Altitude: | not exceed 2000 M above the sea level; |
Winding Material: | 100% Copper; |
Rated Breaking Current: | 50 KA. |
Primary Distribution Side
|
![]()
Transformer Body
|
![]()
Secondary Distribution Side
|
![]()
Corrugated Radiator
|
![]()
Panel-Type Radiator
|
