3 Phase Pad Mounted Distribution Transformer

Conso Electrical Technology and Science Co., Ltd. has been a manufacturing company to produce 3 phase pad mounted distribution transformers since it founded in 2006. To assemble a high quality 3 phase pad mounted distribution transformer, Conso Electrical use 2 mm thick cold-rolled steel plate as the enclosure of primary and secondary distribution room. Meanwhile, Conso Electrical has the ability to provide the customized service to produce a 3 phase pad mounted distribution transformer above the IEC standard. It is one of the original manufactures to assemble 3 phase pad mounted distribution transformer, which Cooperates with Shanghai DeLixi Group Corporation.

Send Inquiry

Product Description

Video

3 phase pad mounted distribution transformer Introduction：

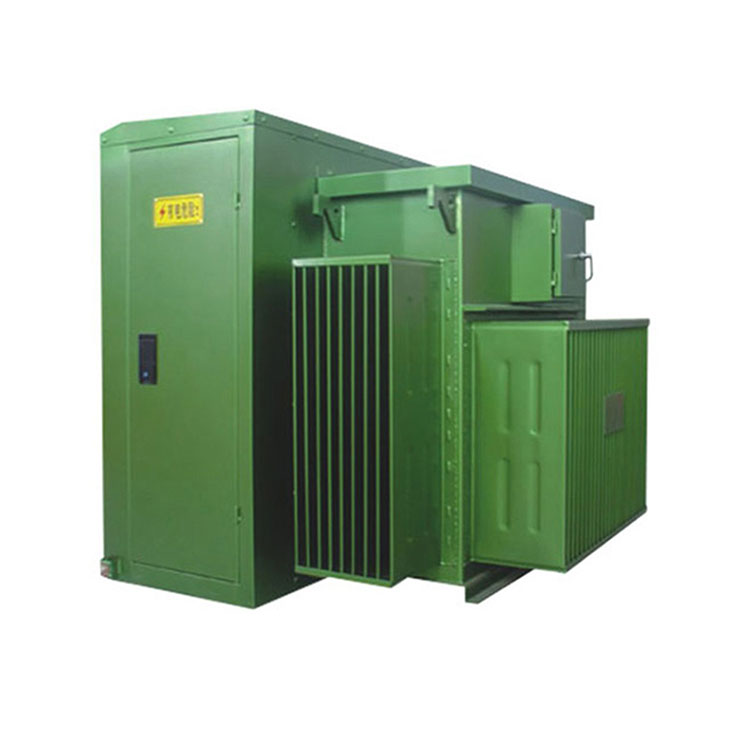

The 3 phase pad mounted distribution transformer is composed of upper and lower oil tanks and switch cabinet parts. The separation of the oil tank of the high-voltage switch cabinet and the oil circuit of the 3 phase pad mounted distribution transformer ensures that the electrical arc generated by the switch during the load operation will not affect the quality of the oil in the 3 phase pad mounted distribution transformer, and the heat generated by the 3 phase pad mounted distribution transformer will not significantly affect the temperature rise of the high-voltage load switch. With low loss and strong overload ability; it can be used in ring network power supply, dual power supply or terminal power supply system, with convenient power supply method conversion and reliable operation.

The high-voltage side oil-immersed load switch or SF6 load switch can be upgraded automatically. Lay the foundation for the realization of distribution system automation.

3 phase pad mounted distribution transformer Technical Parameter:

Rated Capacity:	25 kva to 1600 kva (equipped capacity bank and distribution branch) 2000 kva,2500 kva (equipped Connection pile head on secondary side)
Primary Voltage:	10kV,11kV,15kV,22kV,33kV;
Secondary Voltage:	0.4 kV;0.415kV;0.433kV;
Cooling System:	ONAN;
Working Temperature:	-40 ℃ to 40 ℃;
Protection Rate:	IP43;
Tapping Method:	offline, 2.5% or 5% for each step.
Noise Level:	≤50 db;
High Voltage Backup Fuse Breaking Current: 5	0kA;
Plug-in Fuse Breaking Current:	2.5kA;
