100 Kva Pad Mount Transformer
  • 100 Kva Pad Mount Transformer100 Kva Pad Mount Transformer
  • 100 Kva Pad Mount Transformer100 Kva Pad Mount Transformer
  • 100 Kva Pad Mount Transformer100 Kva Pad Mount Transformer

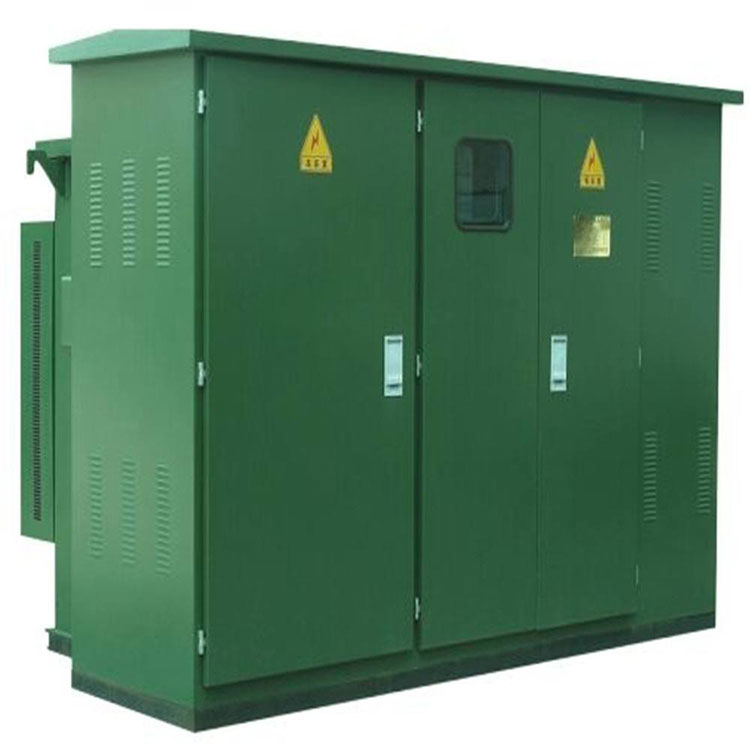

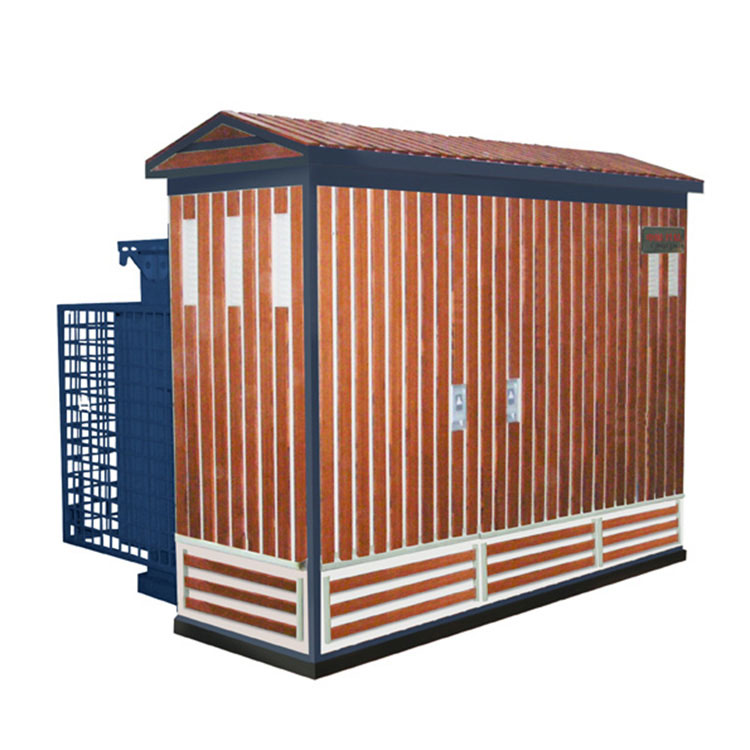

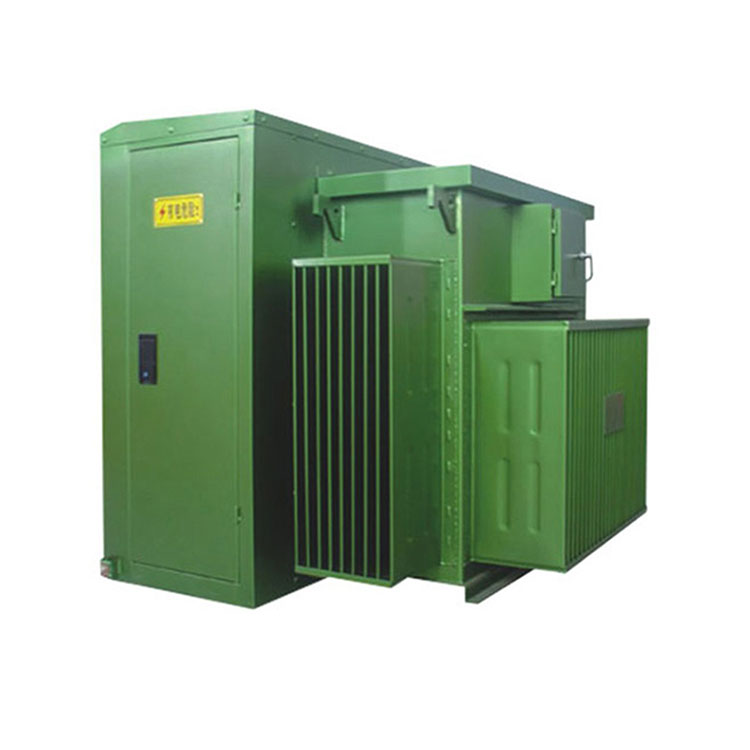

100 Kva Pad Mount Transformer

CONSO·CN high quality 100 Kva Pad Mount Transformer is typically used in street power support, since the pad mounted transformer has a small footprint, maximizing green space. Conso Electrical Technology and Science Co., Ltd. produce 100 kva pad mounted transformers strictly according to the IEC standards and the client’s requirements. During supply pad mounted transformers to State Gird Corporation of China, Conso Electrical enhances the quality control of pad mounted transformers. We wish to deliver our products to friends around the world.

Send Inquiry

Product Description

Video



100 kva pad mount transformer Features:


Main Features of Pad Mounted Transformers :


1.High Capacity: Pad Mounted Transformers are typically used in large power systems and are characterized by their high capacity and high voltage.

2.High Reliability: These substations incorporate multiple protective measures, such as lightning arrestors, isolation switches, circuit breakers, etc., ensuring the stability and reliability of the electrical system.

3.Versatility: In addition to transmitting and distributing power, American-style substations can also perform functions like regulating power quality and providing reactive power compensation. In contrast, pad-mounted transformers are smaller substations mainly used in medium-sized power systems or at the edges of electrical grids.


Advantages of Pad mounted Transformers:


1.Compact Size: They are small in size and have a small footprint, making them suitable for use in space-constrained areas like urban environments.

2.They typically utilize new technologies such as solid-state switches, ensuring high reliability and safety.


100 kva pad mount transformer Technical Parameter:



Mode Number:  ZGS11-100;
Rated Capacity:  100 kva;
Primary Voltage:  10 kV, 11kV, 13.8kV, and 15kV;
Secondary Voltage:  400V, 415V,433V;
Phase Number:  three phase;
Protection Rate:  IP68 for Transformer Tank, IP54 for Enclosure;
Basic Insulation Level:  75kV/35kV(LI/AC) or depends;
Working temperature:  -40 ℃ to 40 ℃;
Rated Breaking Current:  40 KA;
Rated Current of Fuse:  20 A to 100A.



CONSO·CN 100 kva pad mount transformer Detail:


Primary Distribution Side
Transformer Body
Secondary Distribution Side


Corrugated Radiator
Panel-Type Radiator



CONSO·CN 100 kva pad mount transformer Workshop:



100 kva pad mount transformer in Process:



100 kva pad mount transformer Testing Center:



CONSO·CN 100 kva pad mount transformer Ready to Ship:
