Kyn28 12 Medium Voltage Vacuum Switchgear
  • Kyn28 12 Medium Voltage Vacuum SwitchgearKyn28 12 Medium Voltage Vacuum Switchgear
  • Kyn28 12 Medium Voltage Vacuum SwitchgearKyn28 12 Medium Voltage Vacuum Switchgear

Kyn28 12 Medium Voltage Vacuum Switchgear

CONSO·CN high quality Kyn28 type vcb panel has an advanced designing which the vacuum circuit breaker shall be pull out from the medium voltage vacuum switchgear when power system needs inspection and maintenance. Conso Electrical Science and Technology Co., Ltd , that as a sophisticate manufacturer of medium voltage switchgear and compact substation, got the Registration Certificate for Scientific and Technological Achievements of kyn28 panel in 2007. during those decades, Conso Electrical has keep design the structure of a kyn28 12 medium voltage vacuum Switchgear in advenaced. We eagerly anticipate your visit for a more in-depth discussion of collaboration opportunities.

Send Inquiry

Product Description
Dive into the realm of excellence with our premium Kyn28 12 Medium Voltage Vacuum Switchgear. This introduction aims to deepen your comprehension of the superior features and capabilities embedded in our state-of-the-art switchgear. Embrace the opportunity to join hands with us – both esteemed existing clients and prospective ones – as we collectively pave the way for a future defined by innovation and success. We extend an open invitation to foster enduring partnerships, ensuring that together, we shape a future that surpasses expectations. Welcome to a journey where cutting-edge technology meets reliability, and collaboration fuels progress!

kyn28 12 medium voltage vacuum Switchgear Introduction:


CONSO·CN high quality kyn28 12 medium voltage vacuum Switchgear (short for panel as below) is a new product, of which based on the introduction of advanced foreign design and manufacturing technology. It will be a substitute for old fashioned metal-enclosed switch-gear, such as KYN-12, JYN-12, GFC-12, etc. The panel applies to 3.6~12kV 3 phase AC 50Hz network for receiving and distributing power energy and also for control, monitor and protection. The manufacturing standard of KYN28-12 is IEC62271-200 AC Metal Enclosed Switch and Control Equipment above 1kV and below 52kV IEC60694 Standard Common Clauses for HV Switch-gear, DIN. VDE AC Switch-gear at Rated Voltage Above 1kV, GB3906 3~35kV AC Metal Enclosed Switch-gear and so on. It has perfect and reliable prevention function to against misoperation.


kyn28 12 medium voltage vacuum Switchgear parameter:

Item

Unit

Value

Rated Insulation Level

1 Min Power Frequency (the Phase to the ground)

KV

42/48

Lighting Impulse withstand voltage (the Phase to the ground)

KV

75/85

Rated Voltage

KV

6 to12

Rated Frequency

Hz

50/60

Rated Current

A

630~4000

Main Busbar Rated Current

A

1250/1600/2000/2500/4000

Branch Busbar Rated Current

A

630/1250/1600/2000/2500/3150

Rated Short time Withstand Current(4S)

KA

16/20/25/31.5/40/50

Rated Peak Withstand Current

KA

40/50/63/80/100/125

Protection Level


Enclosure IP4X


kyn28 12 medium voltage vacuum Switchgear in assembling:

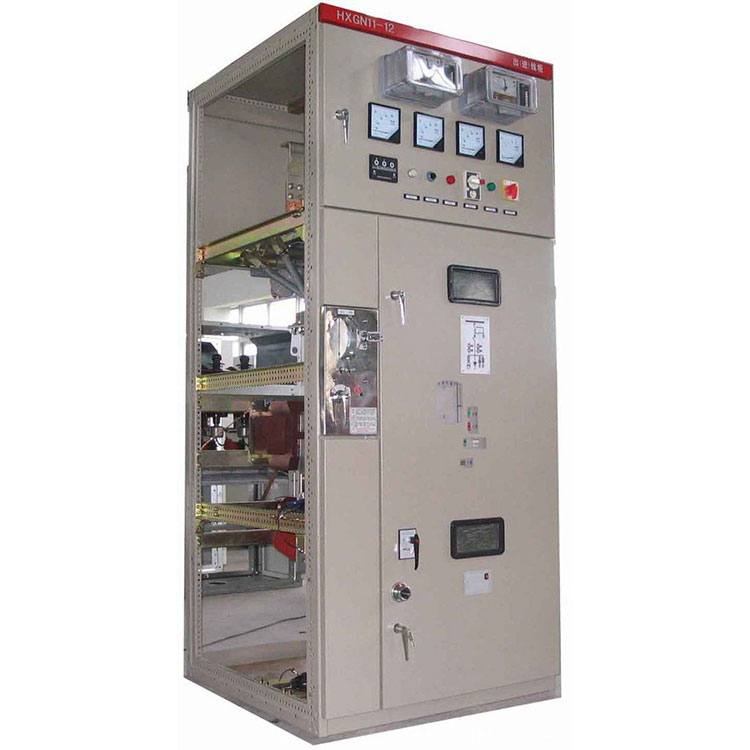

HXGN10-12

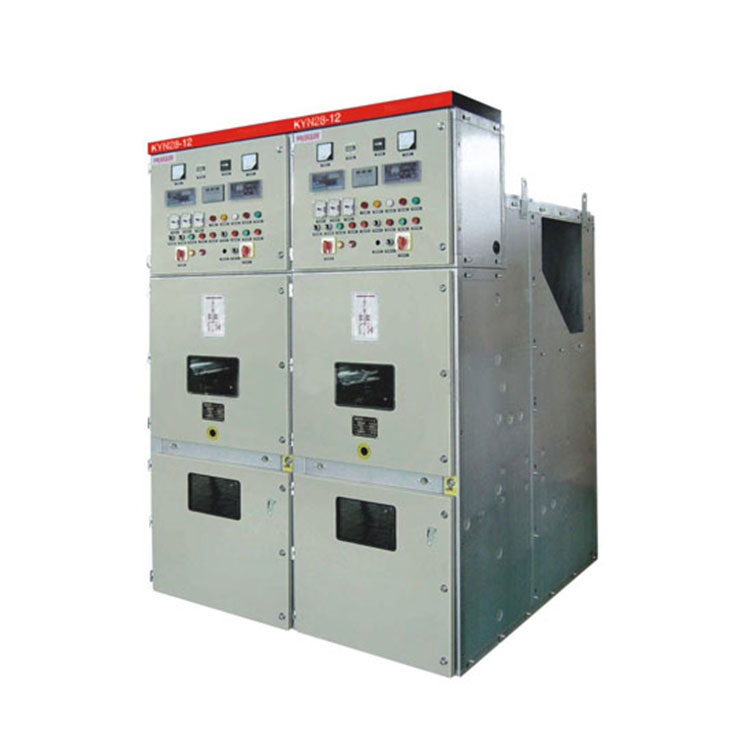

KYN28-12

HYXGN10-24

KYN61-40.5

kyn28 12 medium voltage vacuum Switchgear in testing:



kyn28 12 medium voltage vacuum Switchgear in Package:



kyn28 12 medium voltage vacuum Switchgear Workshop:



kyn28 12 medium voltage vacuum Switchgear in Application:
