Rest assured in your decision to procure tailor-made 24kV Medium Voltage LV and MV Switchgear from us. Anticipate a collaborative journey as we eagerly await the opportunity to work with you. For further insights and inquiries, feel free to initiate a consultation with us. Your queries will receive prompt attention, solidifying our commitment to providing timely and informative responses. Choose customized solutions that align seamlessly with your electrical needs, and embark on a partnership where excellence and responsiveness converge. Consult with us now to explore the possibilities of optimized medium voltage switchgear tailored to your specifications.

24kv medium voltage lv and mv switchgear Operating Environment：

1. 24kv medium voltage lv and mv switchgear operating environment temperature:

      a) Natural meteorological environment temperature: -40°C to +40°C.

      b) Ambient air temperature during operation: -25°C to +40°C.

      c) 24-hour average temperature: not exceeding +35°C.

      d) Maximum daily temperature difference: not greater than 25K, permissible for storage and transportation at -35°C.

2.24kv medium voltage lv and mv switchgear operating Altitude: Areas below 1000m; for areas between 1000-3000m, altitude correction factors need to be considered.

3.Environmental relative humidity (at 25°C):

      a)Daily average: not exceeding 95%.

      b) Monthly average: not exceeding 90%.

4.24kv medium voltage lv and mv switchgear operating Air quality: No significant dust, smoke, corrosive, or flammable gases; no pollution from water vapor or salt.

24kv medium voltage lv and mv switchgear in assembling：

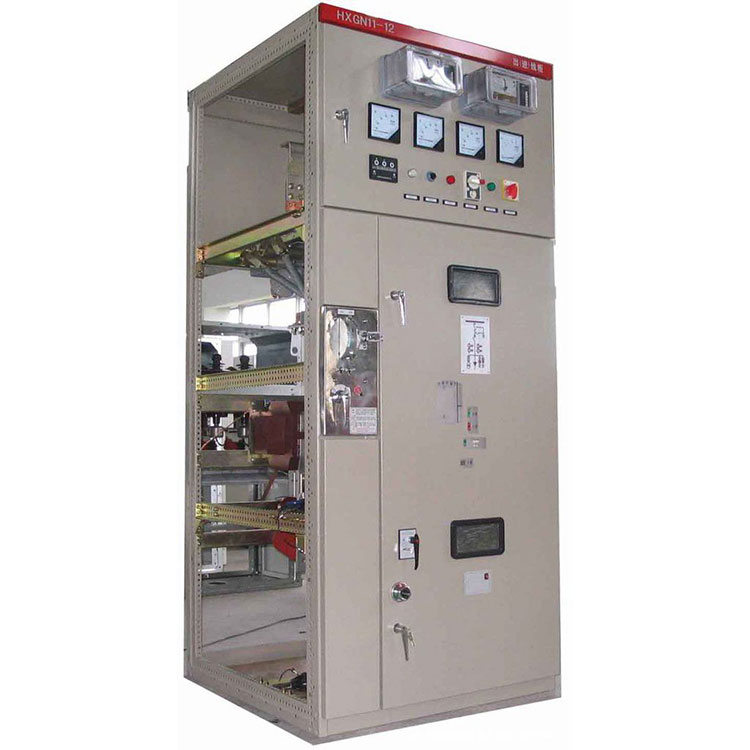

HXGN10-12

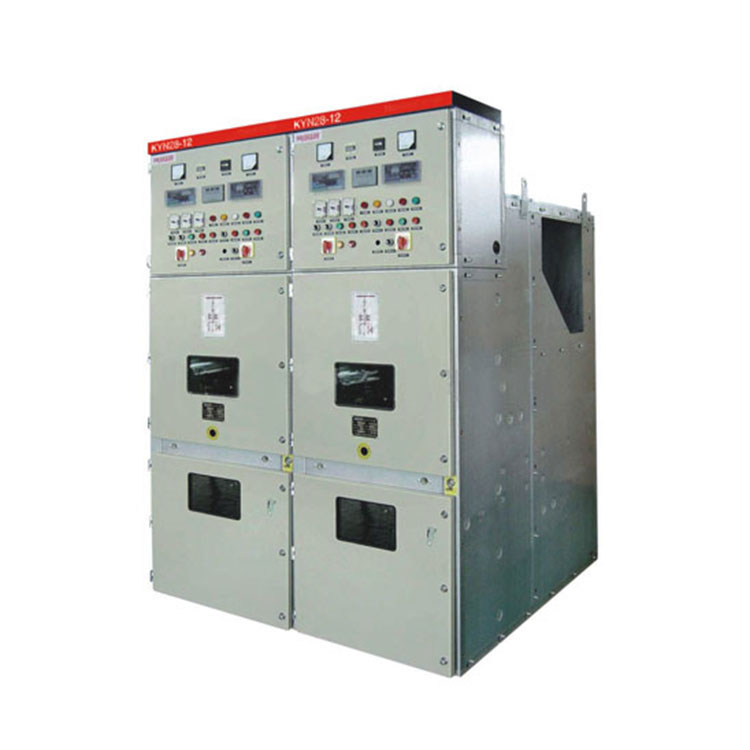

KYN28-12

HYXGN10-24

KYN61-40.5

24kv medium voltage lv and mv switchgear in testing：

24kv medium voltage lv and mv switchgear in Package：

24kv medium voltage lv and mv switchgear Workshop：

24kv medium voltage lv and mv switchgear in Application：

24kv medium voltage lv and mv switchgear Ordering Instructions:

When placing an order, customers are required to provide the following technical information:

1. Main wiring scheme number and single-line system diagram, arrangement diagram, and layout plan.

2. Secondary circuit wiring schematic diagram and terminal arrangement diagram.

3. Models, specifications, and quantities of electronic components inside the switch cabinet.

4. Specifications and materials of main busbars and branch busbars.

5. Names and quantities of spare parts and components.

6. Special requirements to be discussed with our company.

7. Given that the standards, materials, technical requirements, and installation dimensions mentioned in this document are continuously improving and evolving over time, our company reserves the right to make modifications.
