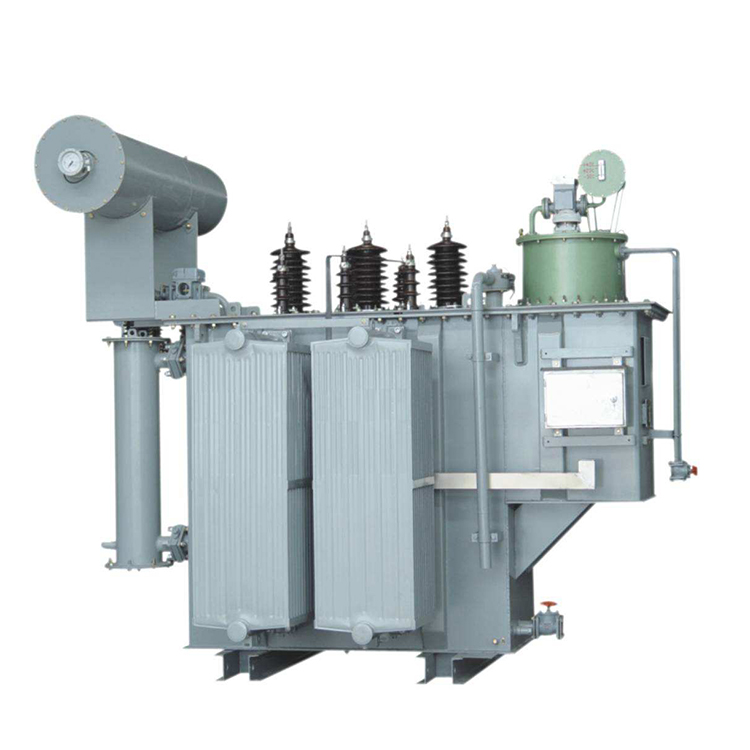

5 Mva 33 11kv Solar Power Transformer

Conso Electrical Technology and Science Co., Ltd has been a medium size high-tech manufacture to produce 33kv power transformer since the year of 2006. It has 12000 m2 manufacturing plant, which located in Central industry Park Yueqing City Zhejiang Province China, to assemble 33kv large capacity power transformers, such as a 5 mva 33 11kv solar power transformer. The company has a well-developed supplier selection system to ensure each components assembled on a 5 mva 33 11kv solar power transformer is reliable. Evermore, it is essential in Conso Electrical that the designing engineer has to inspect procedure to ensure factory test runs smoothly.

Send Inquiry

Product Description

Video

5 mva 33 11kv solar power transformer Features:

Role of Photovoltaic Transformers:

Photovoltaic transformers play a crucial role in photovoltaic power generation systems by regulating and controlling electrical energy. When solar panels generate electricity, photovoltaic transformers transform the voltage and frequency of the electrical energy to meet the requirements of the grid. Additionally, photovoltaic transformers also provide protection for photovoltaic power generation systems to ensure their safe and stable operation.

Characteristics of Photovoltaic Transformers:

Photovoltaic transformers possess several unique characteristics. Firstly, they have high energy conversion efficiency, effectively converting solar energy into electricity and maximizing utilization. Secondly, photovoltaic transformers are compact and lightweight, making them easy to install and transport. Furthermore, they exhibit high durability and resistance to environmental corrosion, enabling long-term operation in various challenging climate conditions.

5 mva 33 11kv solar power transformer. Technical Parameter:

Rated Capacity:	5000kVA or 5 mva;
Mode:	S11-M-5000 or depends;
Voltage Ratio:	13.8/35 kV or 15/33 kV or 10/30 kV;
No loading loss:	according to IEC60076;
loading loss:	according to IEC60076;
Usage:	step up transformer;
Power Frequency withstand Voltage:	85 kV;
Lighting Impulse withstand Voltage:	200 kV;
Insulation Material:	25# 45# Mineral Oil;
