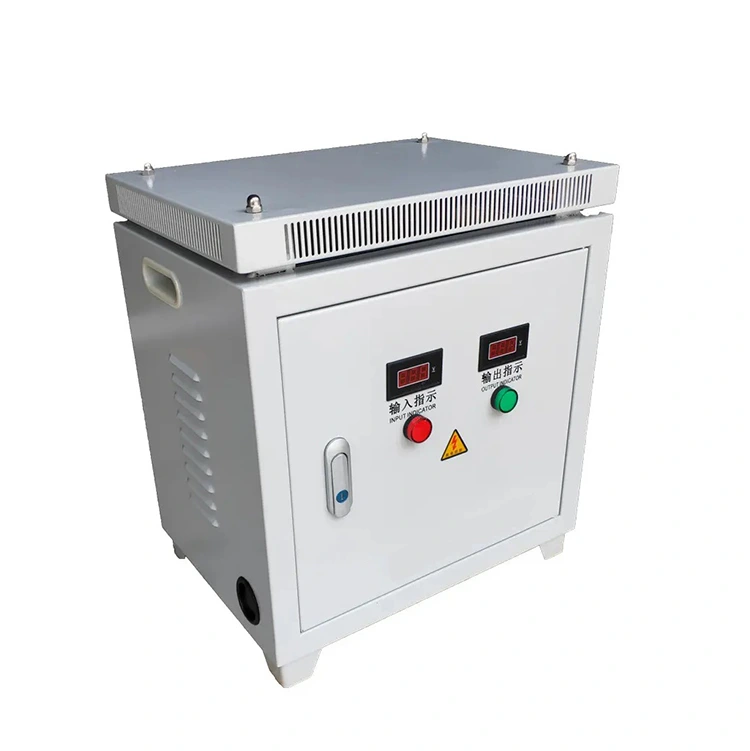

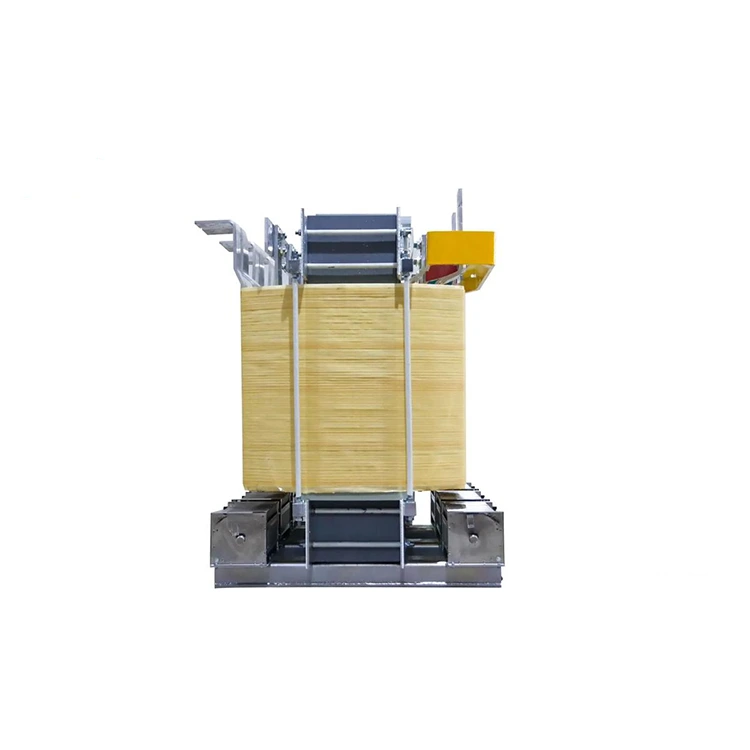

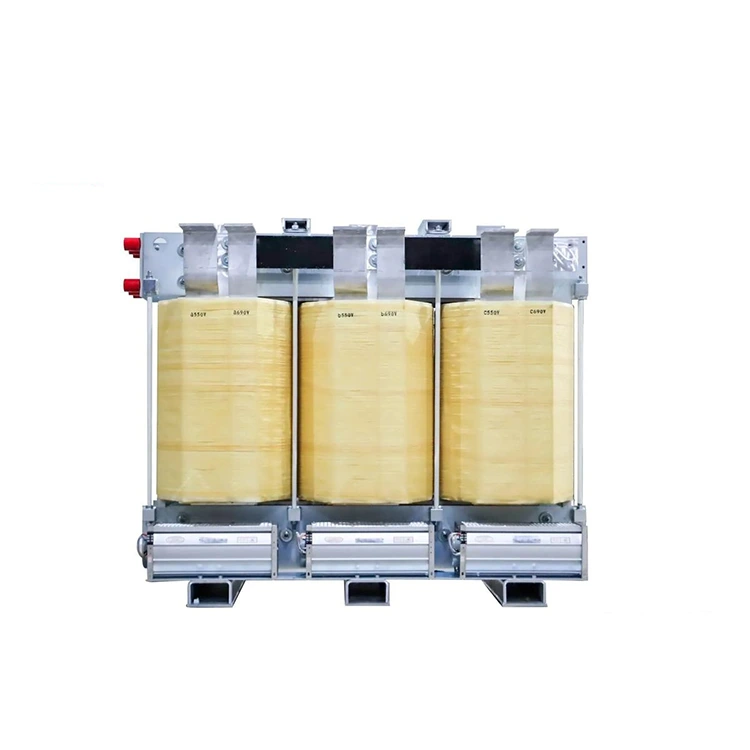

Step Up Power Transformer 110v To 220v 10000w

To produce a reliable and stable step up power transformer 110v to 220v 10000w, Conso Electrical Science and Technology Co., Ltd high magnetic permeability silicon steel sheet and high purity copper conductor to reduce the no load loss and load loss. Ever more, Conso Electrical will test the necessary specifications in the producing process of 110v to 220v 10000w step up power transformer to refuse the failure components come out. Meanwhile, each 110v to 220v 10000w step up power transformer must take factory acceptance test before deliver to verify that the product conforms to the design documents, technical specifications, standards requirements, and contractual agreements.

Send Inquiry

Product Description

1. Voltage Transformation

10000w step up power transformers convert utility power to suitable voltage levels required by end use equipment, to make it meet the supply needs of different loads. They are a important component in the low voltage distribution systems.

2. Electrical Isolation

By separating the primary and secondary circuits, 110v to 220v 10000w step up power transformers enhance system safety, reduce electrical interference, and protect both personnel and connected equipment.

3. Power Distribution and Stable Supply

10000w step up low voltage power transformers provide a stable and reliable low voltage power source for control circuits, lighting systems, and auxiliary equipment, to ensure the continuous and dependable operation of electrical systems.

4. Industrial and Building Applications

10000w step up low voltage power transformers are widely used in industrial machinery, automation systems, commercial buildings, residential complexes, hospitals, schools, and other low voltage power distribution environments.

5. Special and Auxiliary Applications

10000w step up low voltage power transformers are suitable for specialized uses such as control transformers, isolation transformers, and grounding transformers. They are also commonly applied as auxiliary power sources in renewable energy systems, rail transit projects, and complete electrical installations.

Product Parameter:

Rated Capacity		10 kVA
Primary Voltage		220/230/240; 380/400/415; 690/800
Secondary Voltage		400/230; 380/220; 120/110
Rated Frequency		50 Hz or 60 Hz
Impedance		4% to 6%
Phase Number		Three Phase or Single Phase
Max. Working Temperature		40℃
Min Working Temperature		-25℃; -40℃; -60℃
InsulationClass	Dry type	Class F (150℃), Class H (180℃ )
	Oil immersed	Class A (105℃)
Cooling Method	Dry type	AN/AF
	Oil immersed	ONAN
