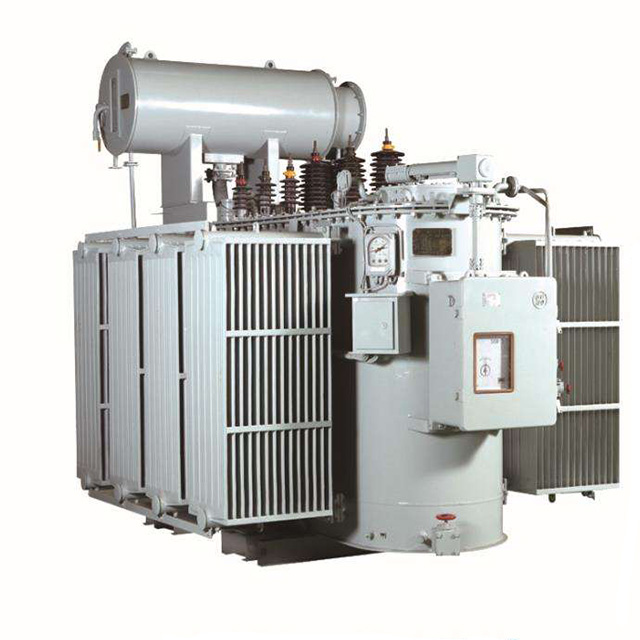

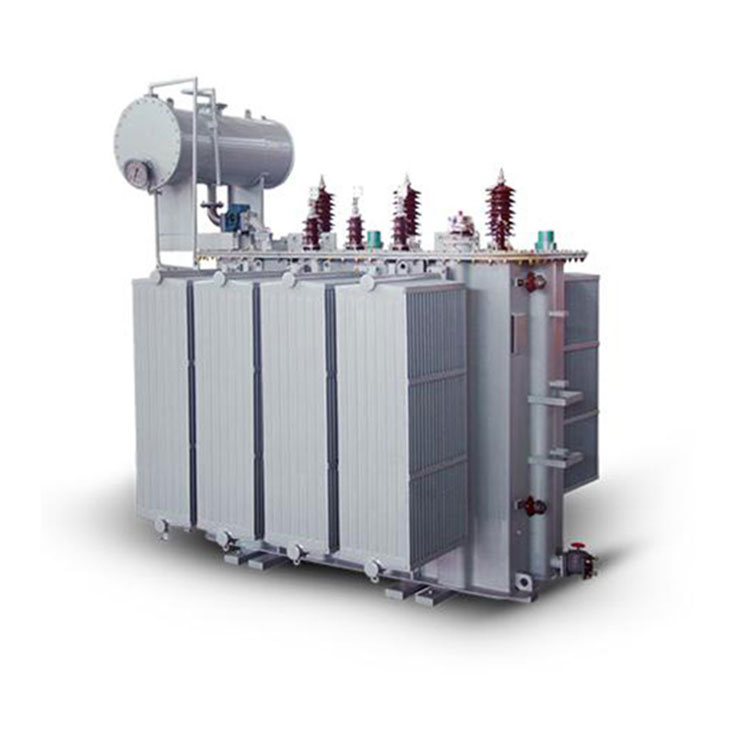

34.5 Kv 10000 Kva 10000kva Power Transformer
  • 34.5 Kv 10000 Kva 10000kva Power Transformer34.5 Kv 10000 Kva 10000kva Power Transformer
  • 34.5 Kv 10000 Kva 10000kva Power Transformer34.5 Kv 10000 Kva 10000kva Power Transformer

34.5 Kv 10000 Kva 10000kva Power Transformer

Conso Electrical Science and Technology Co., Ltd has became a manufacturer to develop the technology of 34.5 kv 10000 kva 10000kva Power transformer since the year of 2006. the company has achieved 27 invention patents and technological breakthroughs to develop efficient processes in compact substations and power distribution transformers. it has 45 production workers who has 10 years manufacturing experience, and automatic manufacturing machinery such as automated welding manipulator, and foil winding machine. The company is a high-technology SMEs sincerely to deliver qualified 34.5 kv 10000 kva 10000kva Power transformer and service

Send Inquiry

Product Description

Video



34.5 kv 10000 kva 10000kva Power transformer Introduction


A 34.5 kv 10000 kva 10000kva power transformer is an essential equipment used in electrical power systems. It serves the function of converting high voltage into low voltage to meet the requirements of various electrical devices. This transformer typically consists of a core and windings, which generate a magnetic field through changes in current, leading to voltage transformation. The design and manufacturing of a 34.5 kv 10000 kva 10000kva power transformer need to consider numerous factors, including rated capacity, short-circuit capability, overload capacity, and insulation levels. Strict adherence to national standards and regulations is crucial to ensure the safe and reliable operation of the transformer. Furthermore, regular maintenance and inspection of the transformer are also of paramount importance.

The rated capacity of a 34.5 kv 10000 kva 10000kva power transformer refers to the maximum load it is designed and manufactured to withstand. Short-circuit capability is whether the transformer can endure current surges without damage during a short-circuit fault. Overload capacity indicates the transformer's ability to temporarily carry loads exceeding its rated capacity. Insulation level pertains to the transformer's insulation performance, with higher insulation levels ensuring that the transformer won't experience interruptions or failures during operation.


34.5 kv 10000 kva 10000kva Power transformer Technical Parameter:


Rated Capacity:  10000 kva;
Mode:  S11-M-10000 or depends;
Primary Voltage: 34.5kv;
No loading loss:  8700 W ±15% or depends;
loading loss:  45300 W ±15% or depends;
No loading Current: ≤0.35%
Winding Material:  100% Copper Winding;
Vector Group:  YNd11;
Tapping Method:  off-line or on-line;
Cooling System:  ONAN or depends.


CONSO·CN 34.5 kv 10000 kva 10000kva Power transformer Detail:


Transformer Winding:



Transformer in Application:


CONSO·CN 34.5 kv 10000 kva 10000kva Power transformer Workshop:


Winding Workshop

Coil Drying Area

Oil Filling Area

Finished Product Area


34.5 kv 10000 kva 10000kva Power transformer Testing Center:



34.5 kv 10000 kva 10000kva Power transformer Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine


CONSO·CN 34.5 kv 10000 kva 10000kva Power transformer Ready to Ship:



Package method:


Wooden Box

Steel Structure
