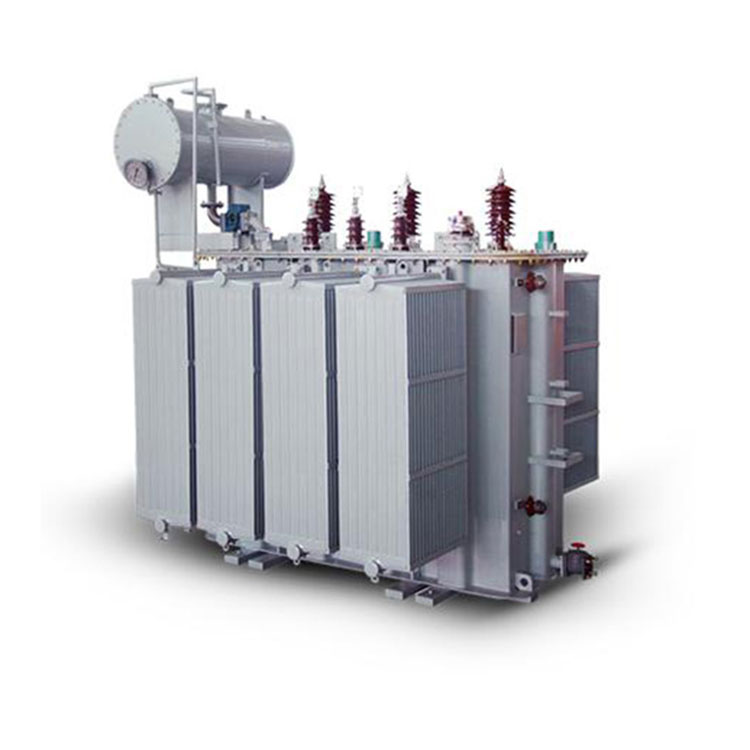

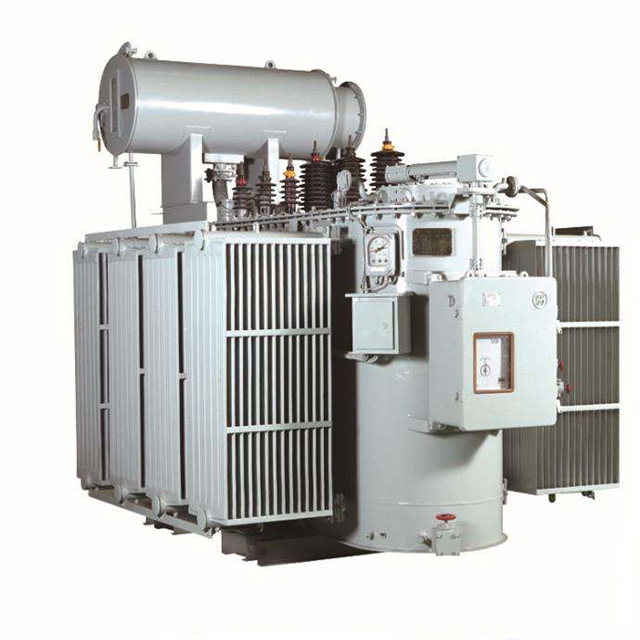

33kv To 11kv 25000 Kva Main Power Transformer
  • 33kv To 11kv 25000 Kva Main Power Transformer33kv To 11kv 25000 Kva Main Power Transformer
  • 33kv To 11kv 25000 Kva Main Power Transformer33kv To 11kv 25000 Kva Main Power Transformer

33kv To 11kv 25000 Kva Main Power Transformer

Conso Electrical Technology and Science Co., Ltd concertante on developing advanced technology and procedure to produce a 33kv to 11kv large capacity power transformer, such as a 33kv to 11kv 25000 kva main power transformer. Since 2006, Conso Electrical has achieved 27 patent, which aims to enhance the efficiency of 33kv power transformers. Meanwhile, the company improved the quality control system. In Conso Electrical, the raw material is from the suppliers which shares a Solid Reputation in the industry, especially to a 33kv to 11kv 25000 kva main power transformer. A specialist will inspect the manufacturing process of the main power transformers to ensure it will runs successfully on users’ hand.

Send Inquiry

Product Description

Video



33kv to 11kv 25000 kva main power transformer Introduction:



The electrical energy generated from power plants must be transmitted over long transmission lines to distant users. To minimize energy losses along the transmission lines, it is necessary to use high voltage or extra high voltage for transmission. However, the voltage produced by power plants is generally limited due to insulation constraints. This necessitates the use of transformers to raise the voltage of electricity generated at the power plants before it is delivered to the power grid. These transformers, designed for voltage elevation, are collectively referred to as step-up transformers.



For end-users, the voltage requirements for various electrical equipment are generally not as high as the transmission voltage. Therefore, transformers are used to lower the high voltage from the power system to match the rated voltage required by various electrical devices. Transformers designed for this purpose are collectively known as step-down transformers.



As such, electrical transformers are the primary electrical devices in the power system used to adjust voltage levels.



From the perspective of the power system, an electrical grid connects many power plants and users, dividing it into a main system and several subsystems. The voltages in different subsystems do not necessarily match, but the main system must operate at a uniform voltage level. This requires transformers of various specifications and capacities to interconnect different systems. Therefore, electrical transformers are indispensable components in the power system.



33kv to 11kv 25000 kva main power transformer Technical Parameter:



Rated Capacity:  25 mva;
Mode:  S11-M-25000 or depends;
Voltage Ratio:  33/11 kV;
No loading loss:  17 kW ± 15%;
loading loss:  94 kW ± 15%;
Impedance:  10% ± 15%;
Short Circuit Current: ≤0.25%;
Cooling method:  ONAN or ONAF;
Power Frequency withstand Voltage:  85kV;


CONSO·CN 33kv to 11kv 25000 kva main power transformer Detail:


Transformer Winding:



Transformer in Application:



CONSO·CN 33kv to 11kv 25000 kva main power transformer Workshop:


Winding Workshop

Coil Drying Area

Oil Filling Area

Finished Product Area


33kv to 11kv 25000 kva main power transformer Testing Center:



33kv to 11kv 25000 kva main power transformer Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine


CONSO·CN 33kv to 11kv 25000 kva main power transformer Ready to Ship:



Package method:


Wooden Box

Steel Structure
