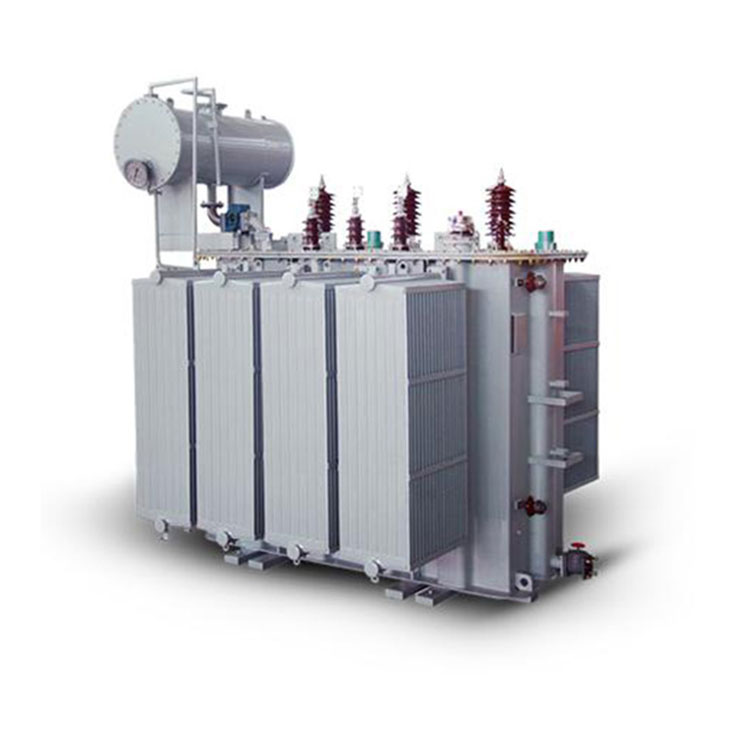

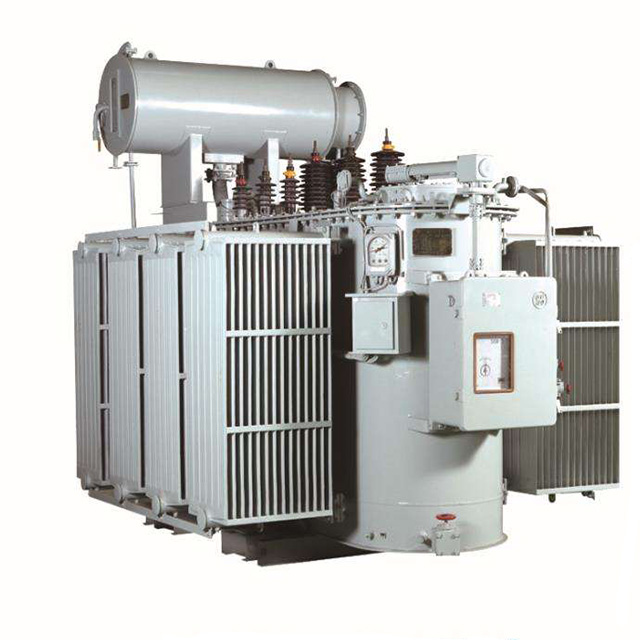

33 11 Kv 20 Mva Power Supply Transformer
  • 33 11 Kv 20 Mva Power Supply Transformer33 11 Kv 20 Mva Power Supply Transformer
  • 33 11 Kv 20 Mva Power Supply Transformer33 11 Kv 20 Mva Power Supply Transformer

33 11 Kv 20 Mva Power Supply Transformer

Conso Electrical Technology and Science Co., Ltd has been a medium size high-tech manufacture to produce 33kv power transformer since the year of 2006. It has 12000 m2 manufacturing plant, which located in Central industry Park Yueqing City Zhejiang Province China, to assemble 33kv large capacity power transformers, such as a 33 11 kv 20 mva power supply transformer. The company has a well-developed supplier selection system to ensure each components assembled on a 33 11 kv 20 mva power supply transformer is reliable. Evermore, it is essential in Conso Electrical that the designing engineer has to inspect procedure to ensure factory test runs smoothly.

Send Inquiry

Product Description

Video



33 11 kv 20 mva power supply transformer Features:



1.High-voltage winding with copper strip winding technology to enhance lightning surge resistance.

2.Low-voltage winding with copper foil winding technology, using premium Grade A insulation materials for high-quality insulation.

3.Minimal leakage, high mechanical strength, and strong short-circuit withstand capability.

4.Iron core with a 45° fully mitered stepped structure: Precision machining is ensured through the use of laser cutting machines and CNC punching, shearing, and folding equipment.

5.Electrostatic powder coating treatment, providing long-lasting paint adhesion (corrosion resistance exceeding 100 hours, hardness ≥ 0.4).

6.Fully sealed structure, maintenance-free, and maintenance-free, with a normal operating lifespan of over 20 years.

7.High-quality cold-rolled grain-oriented silicon steel sheets with mineral oxide insulation for the iron core material (sourced from Baosteel and Wusteel in China).

8.By controlling the process of cutting and stacking the silicon steel sheets, losses, no-load current, and noise levels are minimized.

9.Special reinforcement of the iron core to ensure the transformer's structural integrity during both normal operation and transportation.

10.Low-voltage winding made with high-quality copper foil for excellent insulation resistance.

11.High-voltage winding typically made with insulated copper wire for exceptional resistance to radial stress caused by short circuits.



33 11 kv 20 mva power supply transformer Technical Parameter:


Rated Capacity:  20000kVA or 20 mva;
Mode:  SZ11-M-20000 or depends;
Voltage Ratio:  33/11 kV;
No loading loss:  15500 W±15% or depends;
loading loss:  82700 W±15% or depends;
Impedance:  8.0±15%;
No loading Current: ≤0.30%;
Vector Group:  YNd11;
Basic Insulation Level: 200k


CONSO·CN 33 11 kv 20 mva power supply transformer Detail:


Transformer Winding:



Transformer in Application:



CONSO·CN 33 11 kv 20 mva power supply transformer Workshop:


Winding Workshop

Coil Drying Area

Oil Filling Area

Finished Product Area


33 11 kv 20 mva power supply transformer Testing Center:



33 11 kv 20 mva power supply transformer Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine


CONSO·CN 33 11 kv 20 mva power supply transformer Ready to Ship:



Package method:


Wooden Box

Steel Structure
