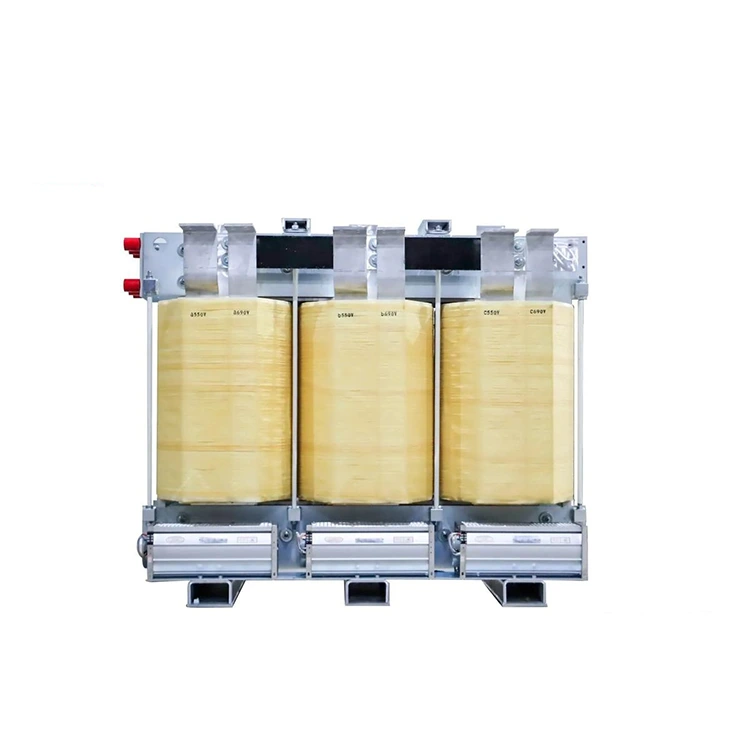

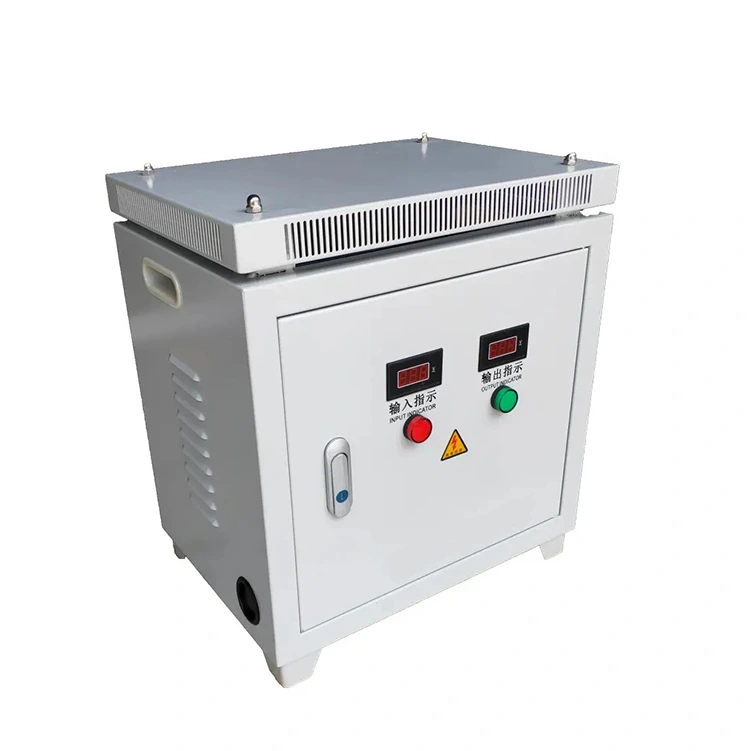

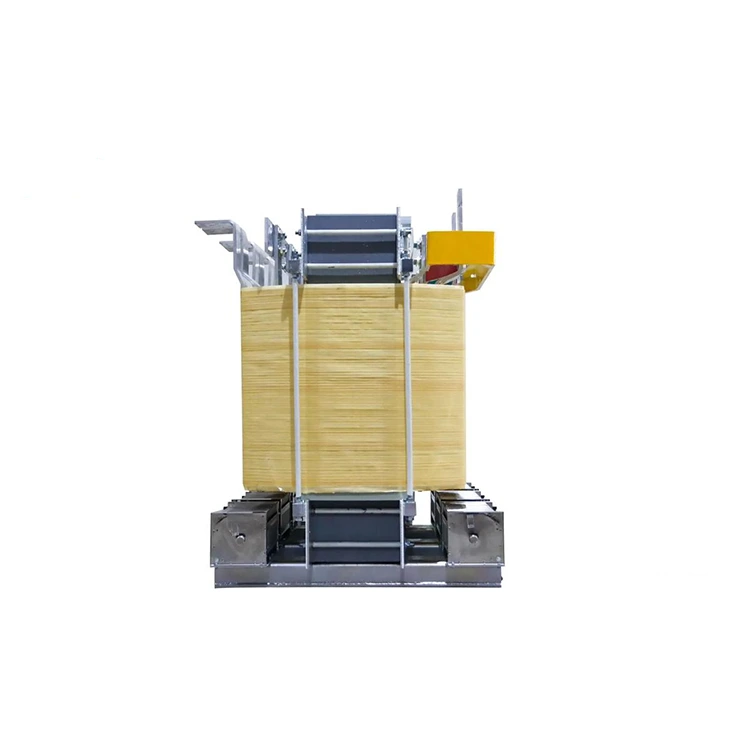

30 Kva Step Up Power Transformer 3 Phase

Conso Electrical Science and Technology Co., Ltd has headquartered in Yueqing City Zhejiang Province since 2006, which is one of the earliest making medium voltage and low voltage power distribution transformers in Yueqing City, such as 30 Kva Step Up Power Transformer 3 Phase in both dry type transformer and oil immersed transformer. Conso Electrical also produce medium voltage and low voltage compact substations. In Conso Electrical, the marketing and producing teams believes it is the ideal method to build solid business relationship to produce 3 phase 30 kva step up power transformers according to technical specification from terminal users.

Send Inquiry

Product Description

Product Features:

1. High Safety and Reliability: Excellent insulation and isolation performance to ensure each 3 phase 30 kva step up power transformer is stable and secure operation of the power system.

2. Energy Efficient Design: Optimized magnetic circuits and winding structures help reduce both no load and load losses in compliance with relevant efficiency requirements.

3. Flexible Customization: Available in various ratings and configurations, with options for customized capacity, voltage levels, connection methods, and enclosure protection.

4. Compact Structure and Easy Installation: Space saving design allows a 3 phase 30 kva step up power transformer is capable for panel mounting or standalone installation, making it suitable for diverse installation environments.

5. Low Operating Noise: Designed for quiet operation, making 3 phase 30 kva step up power transformers suitable for locations with strict noise control requirements.

Product Parameter:

Rated Capacity		30 kVA
Primary Voltage		400V/ 415V/ 480V/ 690V
Secondary Voltage		400 V/230 V; 380 V/220 V
Impedance		4% to 6%
Phase Number		Three Phase or Single Phase
Vector Group		Y/Y、Δ/Y、Y/Δ
No Load Loss		120 Wto180 W
Load Loss		450 Wto 650 W
InsulationClass	Dry type	Class F (150℃), Class H (180℃ )
	Oil immersed	Class A (105℃ )
Cooling Method		AN/AF (dry type); ONAN(oil immersed)
Power Frequency Withstand Voltage		2.5kV/3kV (1 min)
