3 Phase 208 To 240 112.5 Kva Power Transformer

Since it established in 2006, Conso Electrical has focused on producing and supplying medium voltage and low voltage power distribution transformer. Conso Electrical owns a 12000 square meters producing land to manufacture more than 200 pieces 3 phase 208 to 240 112.5 kva power transformer within 30 working days. In Conso Electrical, each producing workers are well trained before producing 3 phase 208 to 240 112.5 kva power transformer. Those power transformers are widely applied in the are of Industrial power distribution systems, New energy systems, Rail transit and etc.

Send Inquiry

Product Description

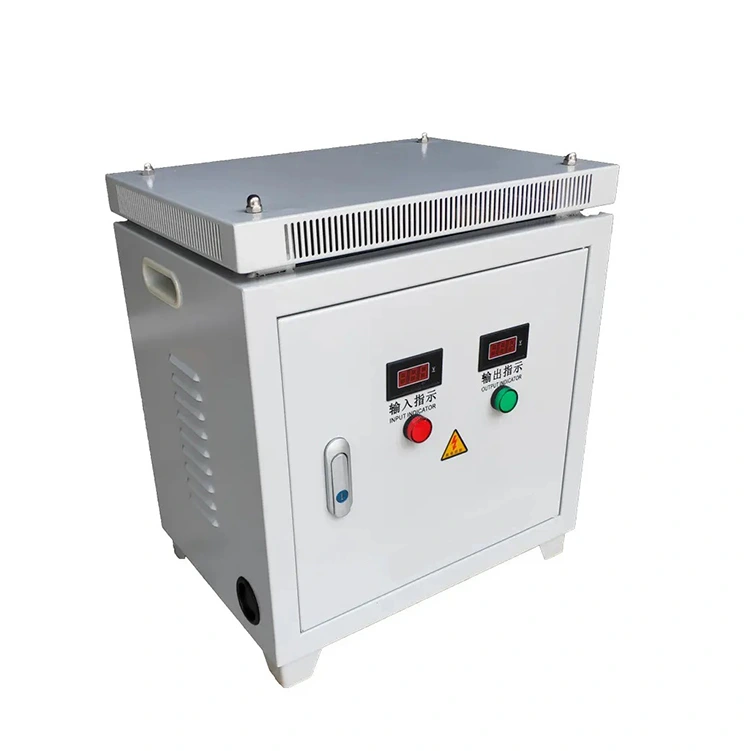

A 3 phase 208 to 240 112.5 kva power transformer is an essential piece of equipment used in low voltage power distribution systems. Its primary functions include voltage transformation, electrical isolation, and system protection. 3 phase 208 to 240 112.5 kva power transformers are widely applied in industrial facilities, commercial buildings, residential projects, and infrastructure developments.

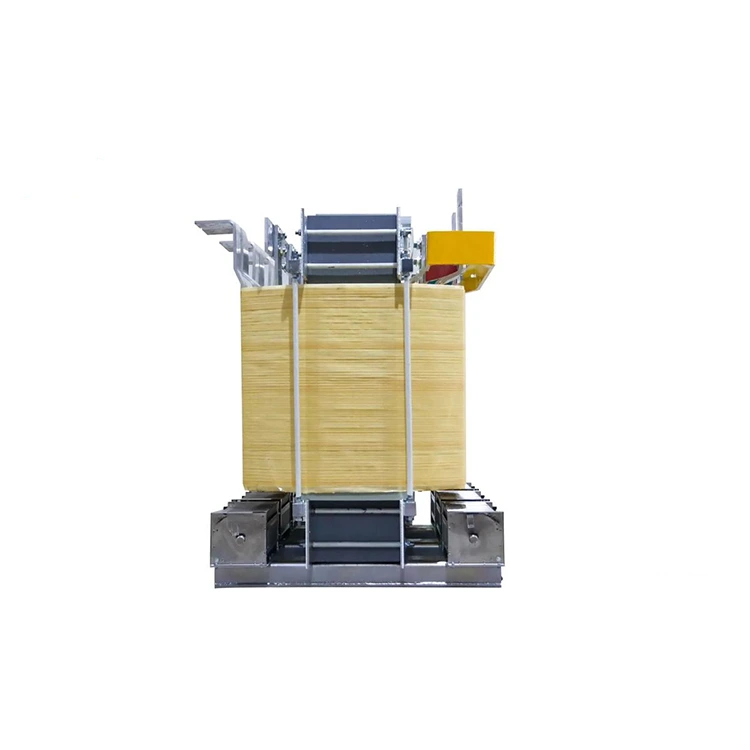

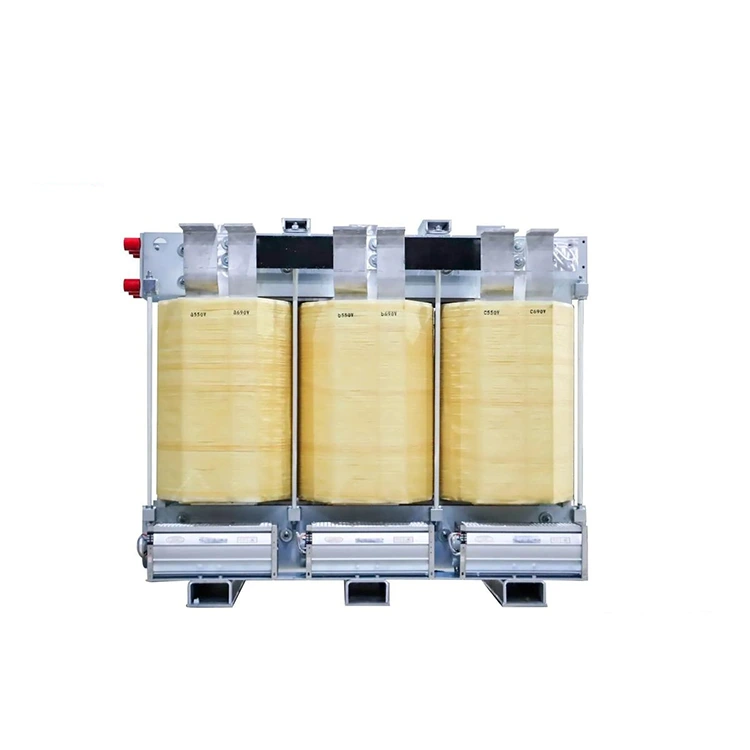

3 phase 208 to 240 112.5 kva power transformers are manufactured using high quality silicon steel cores and high conductivity copper or aluminum windings. With a compact structure, stable operation, low losses, and reduced noise levels, the low voltage power transformers are designed to perform reliably under various operating conditions and application requirements.

Selection Considerations

1.Rated Capacity: Select the appropriate transformer capacity based on calculated load demand.

2.Voltage Ratings: Confirm the required input and output voltage levels according to system standards.

3.Environmental Conditions: Choose between dry type or oil immersed designs and appropriate enclosure protection based on ambient conditions.

4.Cooling Method: Options include natural air cooling and forced air cooling, depending on operating requirements.

Product Parameter:

Rated Capacity		112.5 kVA
Primary Voltage		400V/ 415V/ 480V/ 690V
Secondary Voltage		400 V/230 V; 380 V/220 V
Phase Number		Three Phase
Vector Group		Y/Y、Δ/Y、Y/Δ
No Load Loss		250 to400 W
Load Loss		1500 to2200 W
InsulationClass	Dry type	Class F (150℃), Class H (180℃ )
	Oil immersed	Class A (105℃ )
Cooling Type		AN/AF (dry type); ONAN(oil immersed)
Power Frequency Withstand Voltage		2.5kV/3kV (1 min)
