A 240v to 100v 75kva 3 phase power transformer is designed for power conversion and electrical isolation in low voltage distribution systems. Its primary functions include voltage transformation, electrical isolation, and ensuring stable power supply. The 240v to 100v 75kva 3 phase power transformer is suitable for AC systems operating at 50 Hz or 60 Hz with a rated voltage of up to 1 kV. It features a compact structure, high operational safety, and reliable long term performance.

When selecting a low voltage power transformer, the following key specifications should be carefully evaluated:

1.Rated Capacity (kVA)

The transformer rating should be determined based on the actual load demand and starting current characteristics. It is generally recommended to allow a capacity margin of 10% to 20% to ensure reliable operation.

2. Rated Voltage

The primary and secondary voltages, as well as permissible voltage tolerances, must be clearly defined. Requirements for tapping ranges or multiple output voltages should also be considered.

3. Phase Configuration and Connection Type

Selection should be made between single phase and three phase designs according to the application. The appropriate vector group, such as Yyn0, Dyn11, or Dd0, should be specified based on system requirements.

4. Insulation Class and Temperature Rise

Common insulation classes include Class F and Class H. The selected insulation system should be suitable for the ambient temperature and operating conditions at the installation site.

5. Cooling Method

Natural air cooling is typically used for standard applications, while forced air cooling  may be required for higher capacity low voltage power transformers or installations with limited ventilation.

6. Installation and Protection Requirements

Installation conditions should be defined, such as panel mounted or free standing installation. The required degree of protection, for example IP20, IP23, or IP31, should be selected according to the operating environment.

7. Standards and Certifications

The low voltage power transformer should comply with relevant standards such as IEC and GB. For export projects, additional certifications such as CE or GOST/EAC may be required.

Product Parameter:

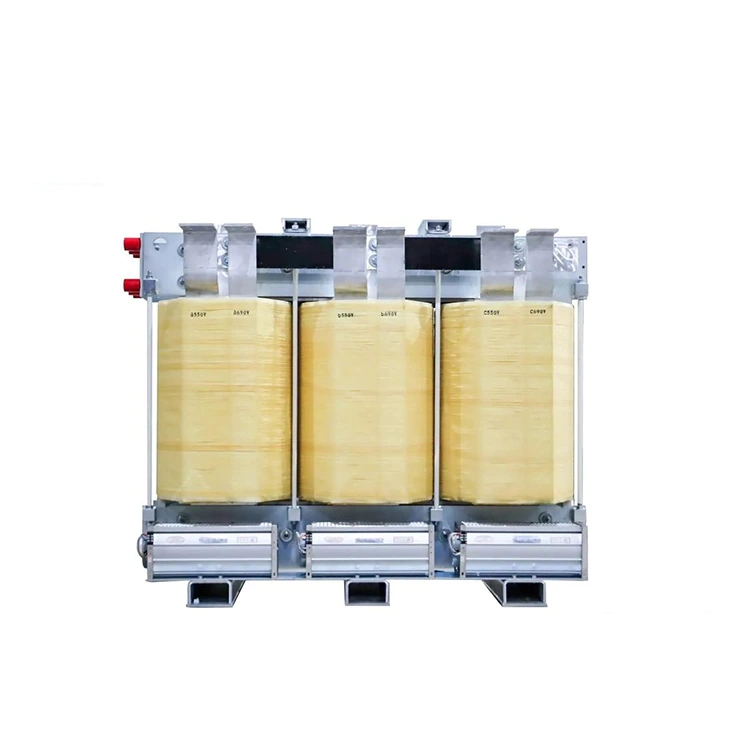

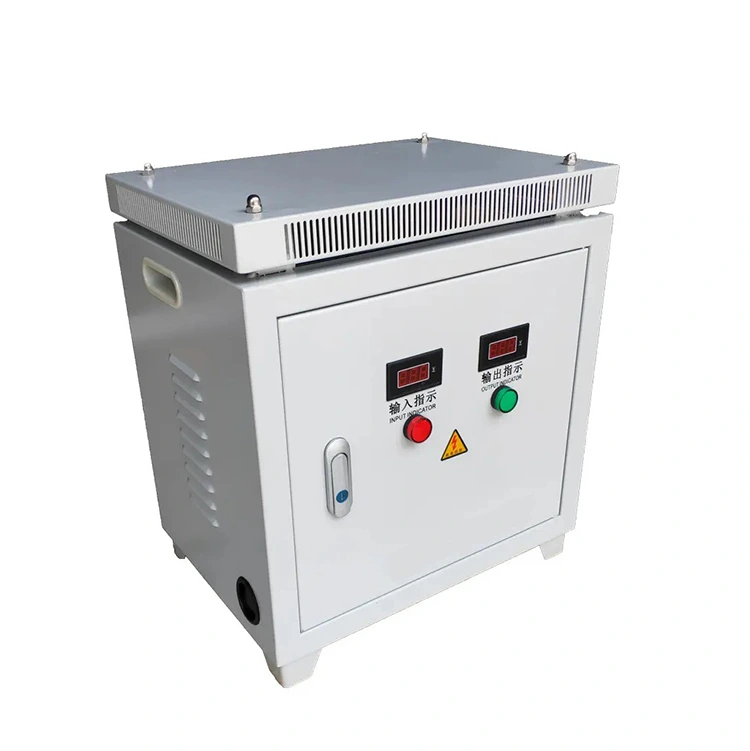

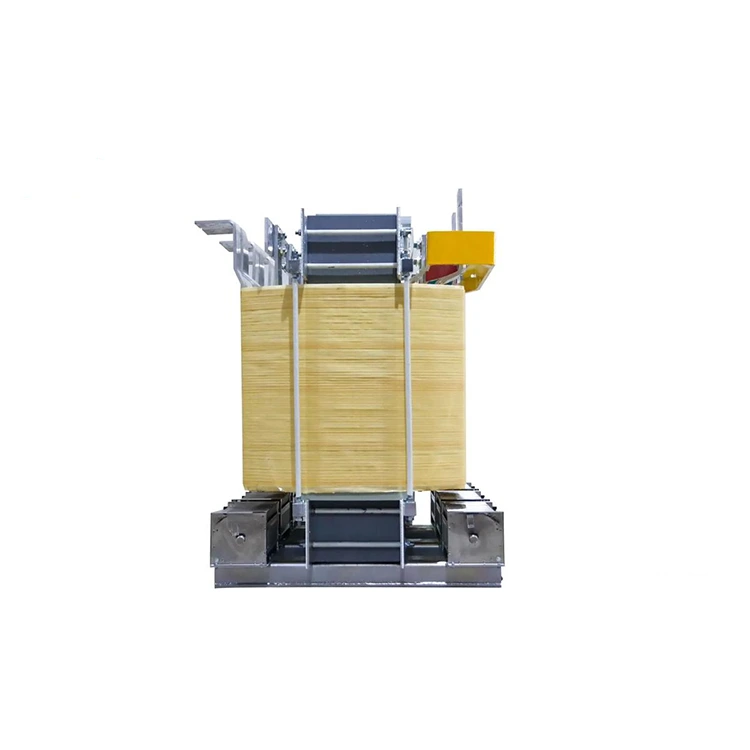

CONSO·CN 240v to 100v 75kva 3 phase power transformer and Enclosure:

CONSO·CN 240v to 100v 75kva 3 phase power transformer in Process:

CONSO·CN 240v to 100v 75kva 3 phase power transformer Workshop:

240v to 100v 75kva 3 phase power transformer Testing Center：

240v to 100v 75kva 3 phase power transformer Producing Equipment:

CONSO·CN 240v to 100v 75kva 3 phase power transformer on Storage:
