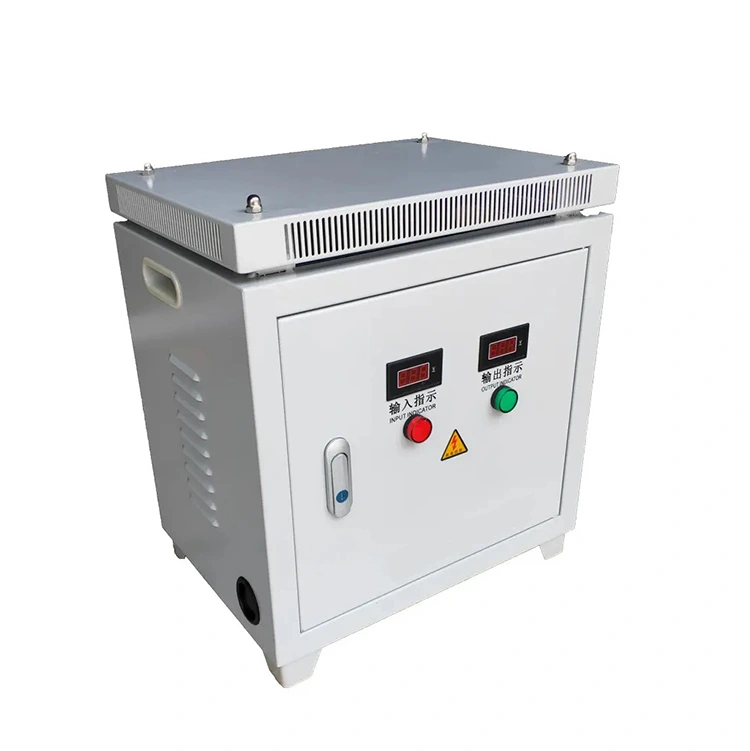

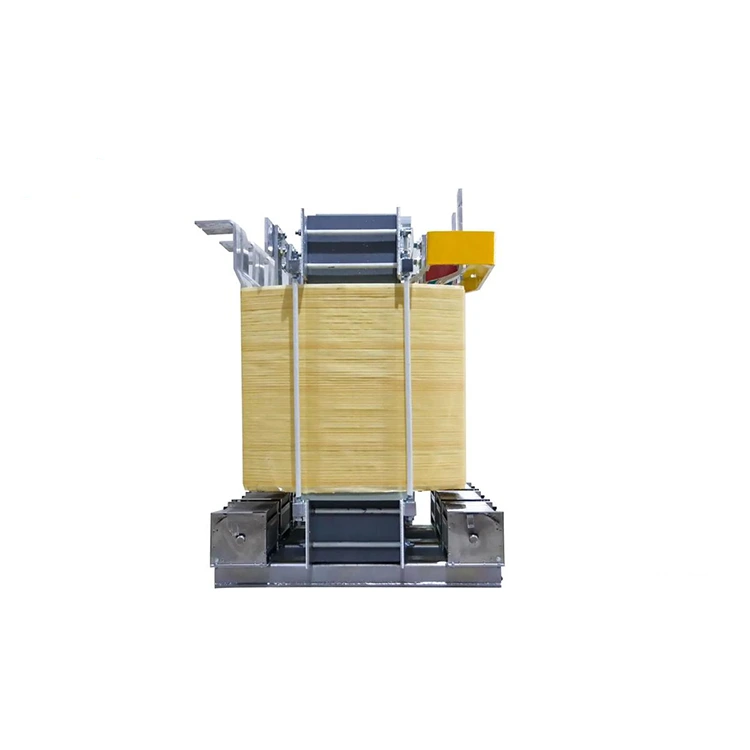

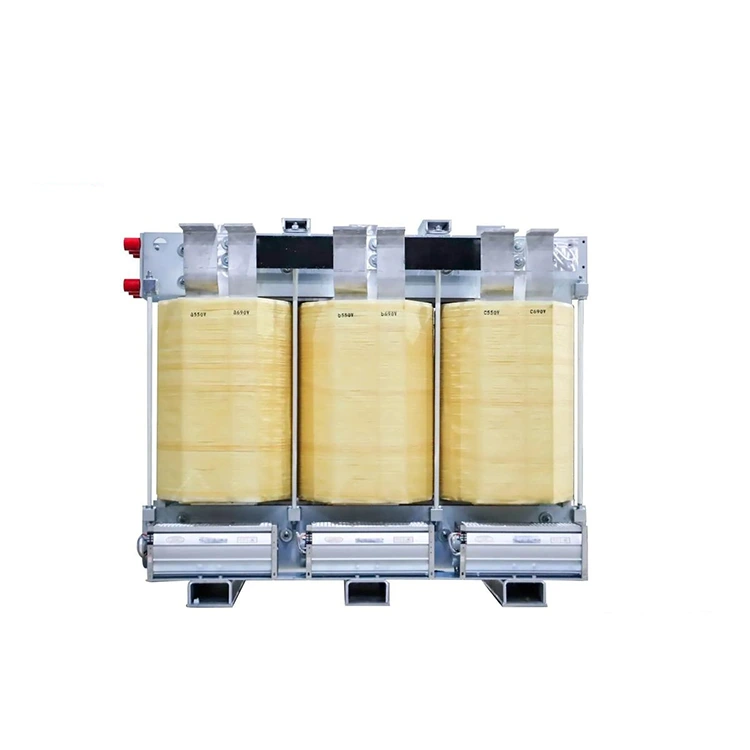

225 Kva Power Isolation Transformer 120v To 220v

To Manufacture each 225 kva power isolation transformer 120v to 220v matching the requirements from terminal users, Conso Electrical Science and Technology Co., Ltd will confirm technical specification of 225 kva power isolation transformers with the terminal users before preparing the quotation to ensure engineers designs a 225 kva power isolation transformer 120v to 220v with a competitive material costs. In Conso Electrical, the producing workers is experienced in producing medium voltage and low voltage power transformers, which owns at least 10 years producing experience on average. Before deliver 225 kva power isolation transformers, a standard factory test must be taken to match the technical specification from terminal users.

Send Inquiry

Product Description

Product Core Functions and Applications:

1. Voltage Reduction: 225 kva power isolation transformers could convert higher supply voltages to safe and usable low voltage levels, such as 400V/230V, which is suitable for end user equipment.

2. Electrical Isolation and Protection: 225 kva power isolation transformers could provide effective electrical isolation between primary and secondary circuits, to minimize the risk of fault propagation and enhance system safety.

3. Voltage Regulation and Power Quality Improvement: Certain designs, such as magnetic saturation transformers, offer voltage stabilization, while specialized configurations of a power isolation transformer can help improve power quality.

4. Impedance Matching: 225 kva power isolation transformers adjust circuit impedance to optimize power transfer and overall system performance.

Product Parameter:

Rated Capacity		225 kVA
Primary Voltage		400V/ 415V/ 480V/ 690V
Secondary Voltage		400 V/230 V; 380 V/220 V
Rated Frequency		50 Hz or 60 Hz
Phase Number		Three Phase
Vector Group		Y/Y、Δ/Y、Y/Δ
No Load Loss		350 Wto550 W
Load Loss		2800 Wto 3800 W
InsulationClass	Dry type	Class F (150℃), Class H (180℃ )
	Oil immersed	Class A (105℃ )
Cooling Method		AN/AF (dry type); ONAN(oil immersed)
Optional configurations		1. Multiple tap voltage; 2. Temperature monitoring device; 3. Forced air cooling system; 4. Designed for special environments, such ashigh temperature, high humidity, high altitude, etc.
