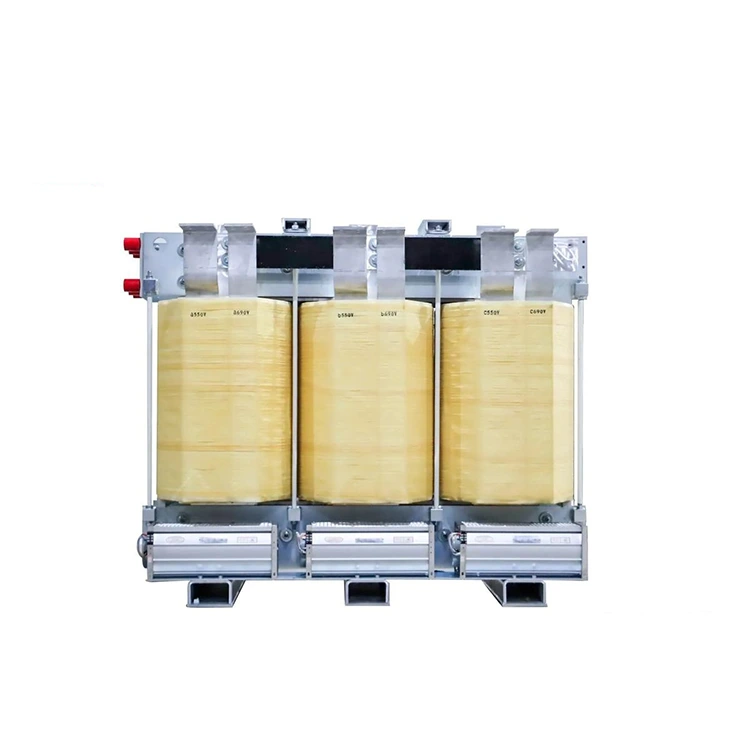

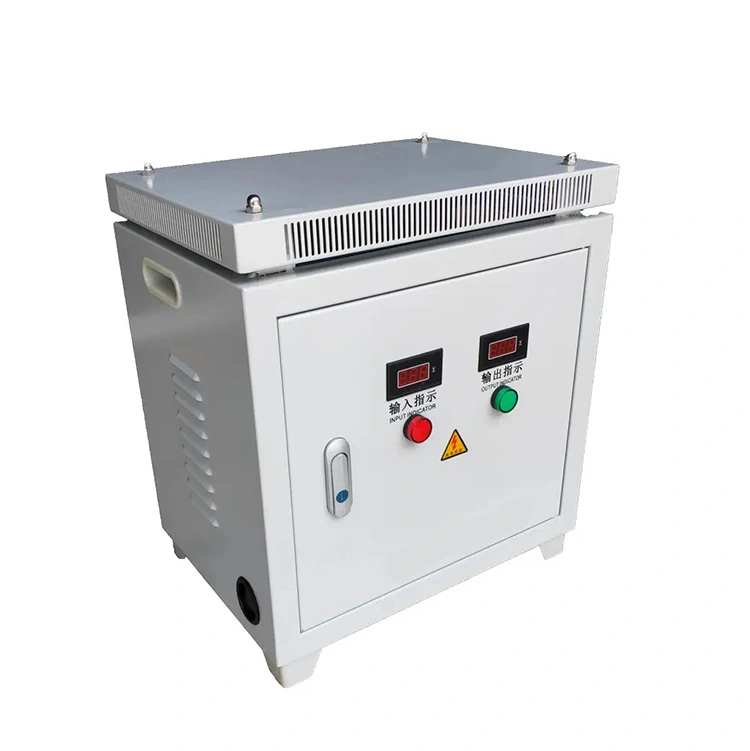

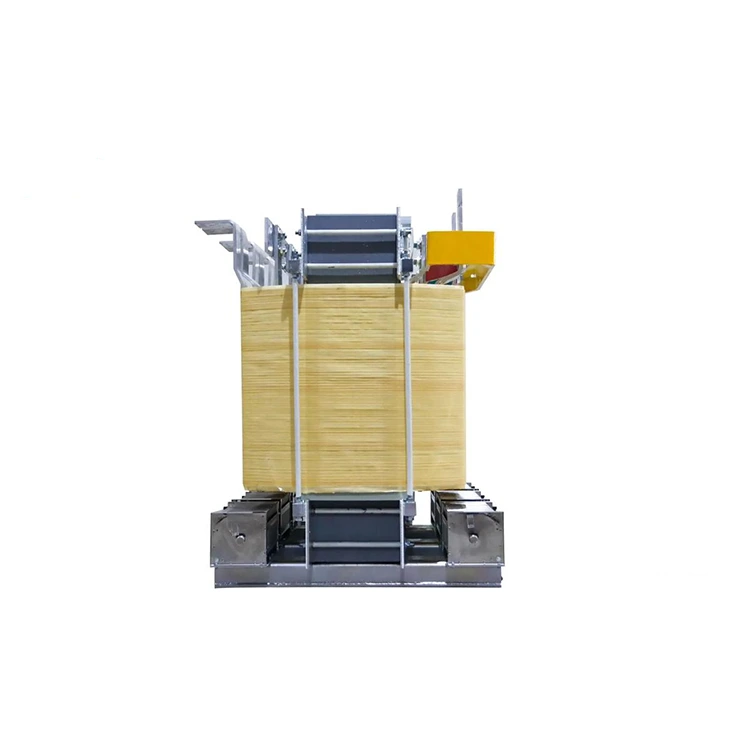

16 Kva 220v 110v Step Down Power Transformer

Conso Electrical Science and Technology Co., Ltd is a professional manufacturer of 16 kva 220v 110v step down power transformers, focusing on design, and manufacturing. Conso Electrical offers stable quality, flexible customization, fast delivery, and have experience with international certifications, enabling us to meet the diverse needs of domestic and overseas engineering projects.
Conso Electrical Science and Technology Co., Ltd locates in Yueqing Economic Development Zone, Yueqing City, Zhejiang Province China. The Company owns more than 12000 squarer meters’ producing land and 80 experienced producing workers to manufacture and supply solid 16 kva 220v 110v step down power transformers to our business partners.

Send Inquiry

Product Description

16 kva 220v 110v step down power transformers offer strong growth potential in the renewable energy sector. As renewable technologies continue to advance and achieve wider acceptation, the application of clean energy sources such as solar and wind power is expanding rapidly. This trend creates increasing demand for power transformers to support energy transmission and distribution. Because of their inherent design advantages, 220v 110v step down power transformers are well positioned for extensive application in this field.

One of the important advantages is the oil free and environmentally friendly design. The absence of insulating oil significantly reduces the risk of fire or explosion under harsh operating conditions, such as high ambient temperatures or strong radiant heat. This greatly enhances the safety and stability of power systems, which is particularly critical for renewable energy installations, especially those located in urban areas or densely populated regions.

In addition, 220v 110v step down power transformers offer strong adaptability to different installation environments. They can be mounted both indoors and outdoors, and their dimensions and capacity can be tailored as the requirements of each projects. Their long service life and compact design make them especially suitable for renewable energy projects under unique climatic environment. Many renewable energy facilities are built in remote or elevated areas where climatic conditions are complex and severe. By using cast epoxy resin as the primary insulating medium, 220v 110v step down power transformers demonstrate superior tolerance to such environmental challenges.

Product Parameter:

Rated Capacity		16 kVA
Primary Voltage		220/230/240; 380/400/415
Secondary Voltage		110V/ 120V; 380/220; 400/230
Rated Frequency		50 Hz or 60 Hz
Phase Number		Single Phase orThree Phase
Tapping Ranges		±5% or±2*2.5%
No Load Loss		≤200 W
Load Loss (75℃)		≤700 W
InsulationClass	Dry type	Class F (150℃), Class H (180℃ )
Temperature Rise	Dry type	≤100 K(Class F);≤125 K(Class H)
Cooling Method		AN/AF
Max. Working Temperature		+40℃
Min. Working Temperature		-25℃, -40℃ or -60℃
