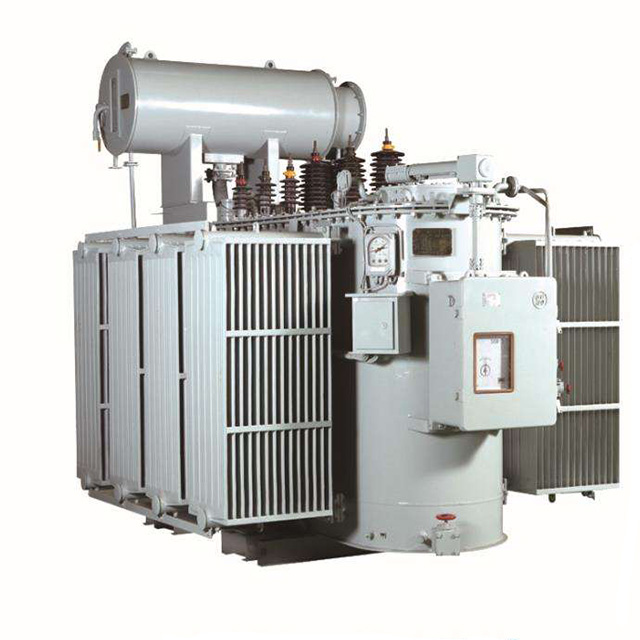

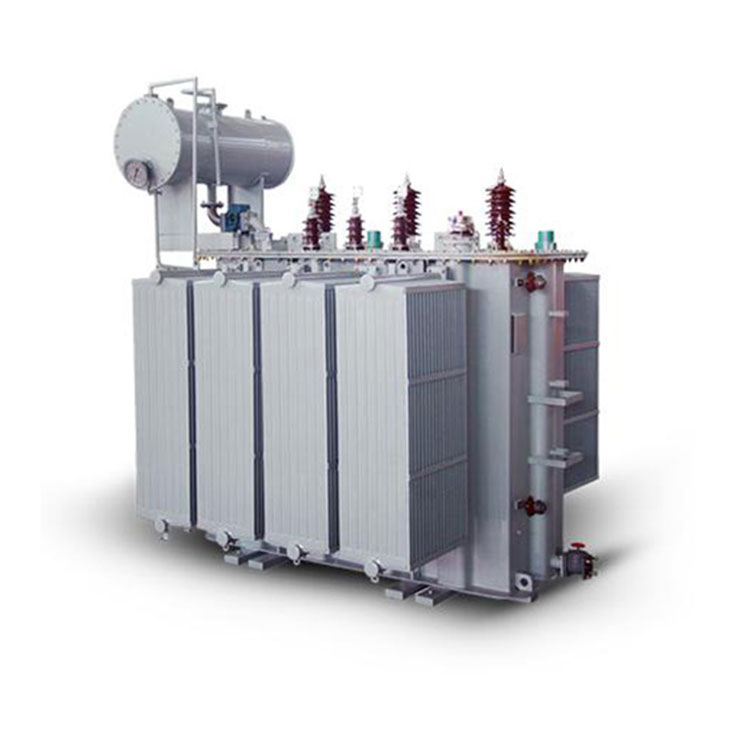

16 20 Mva Oil Immersed Power Transformer

Conso Electrical Science and Technology Co., Ltd has the experience to manufacture a large capacity 35kv oil immersed transformer each year, such as 16 20 mva oil immersed power transformers. Since it founded in 2006, Conso Electrical has achieved production experience of 20 mva oil immersed power transformers through work with mining company, hydroelectric station and chemistry plant. We also shipped 35kv oil immersed transformer to Oceania, Africa and Mid Asia. Conso Electrical sincerely to invite our friends from the world to visit our factory to take about the partnership.

Send Inquiry

Product Description

Video

16 20 mva oil immersed power transformer introduction:

1. Good technical and economic performance

Using high-quality imported materials and advanced technology, the product has reduced no-load loss by 5% and load loss by 10% compared to similar products in S11. It has the characteristics of high efficiency, low loss, and low noise, reaching the advanced level of similar products at home and abroad.

2. Strong resistance to sudden short circuits

Many improvements have been made on the basis of traditional structure and mature technology, using a perfect combination of advanced production equipment and lean manufacturing processes to make the crystal structure reasonable. It has the advantages of reliable operation and strong short-circuit resistance

3. Overall appearance, not prone to oil leakage

oil immersed power transformers with a capacity of 3150KVA and above are equipped with a folded edge oil tank, which greatly enhances the mechanical strength of the oil tank, reduces strong welding, and makes the overall appearance of the product beautiful.

16 20 mva oil immersed power transformer Technical Parameter:

Rated Capacity:	16000 kva or 16 mva;
Mode:	SZ11-M-16000 or depends;
Primary Voltage:	30kV, 33kV, 35kV;
Secondary Voltage:	6.3kV, 10.5kV, 13.8kV, 22kV;
No loading loss:	13100 W±15% or depends;
loading loss:	70300 W±15% or depends;
Impedance:	8.0±15%;
No loading Current:	≤0.35%;
Temperature Rise:	55K/65K or adhere to requirements;
Basic Insulation Level:	200kV/85kV(LI/AC).
