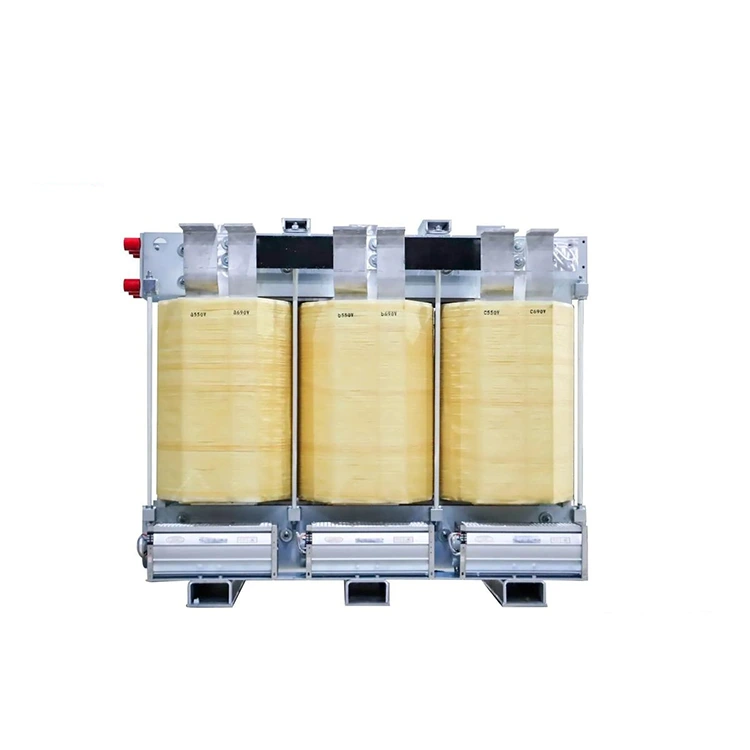

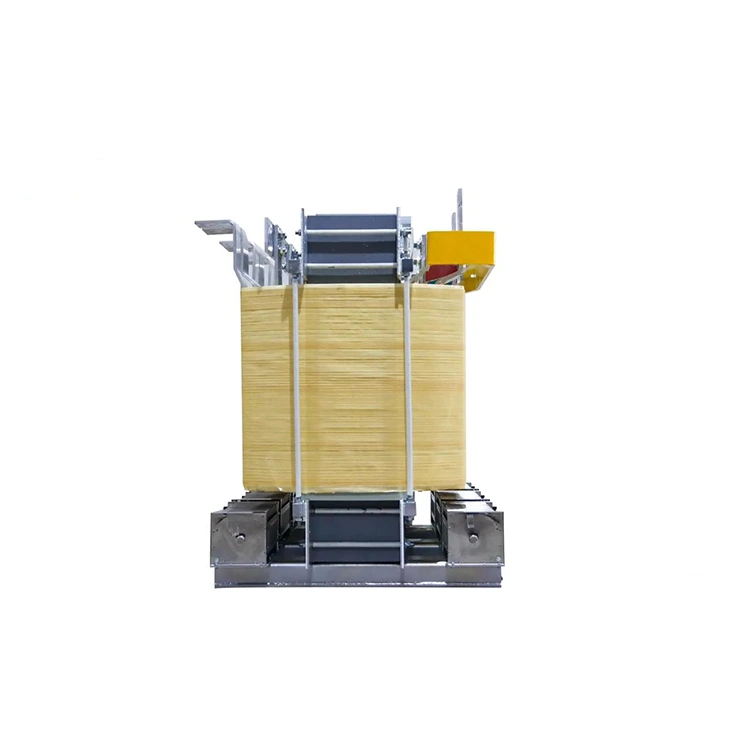

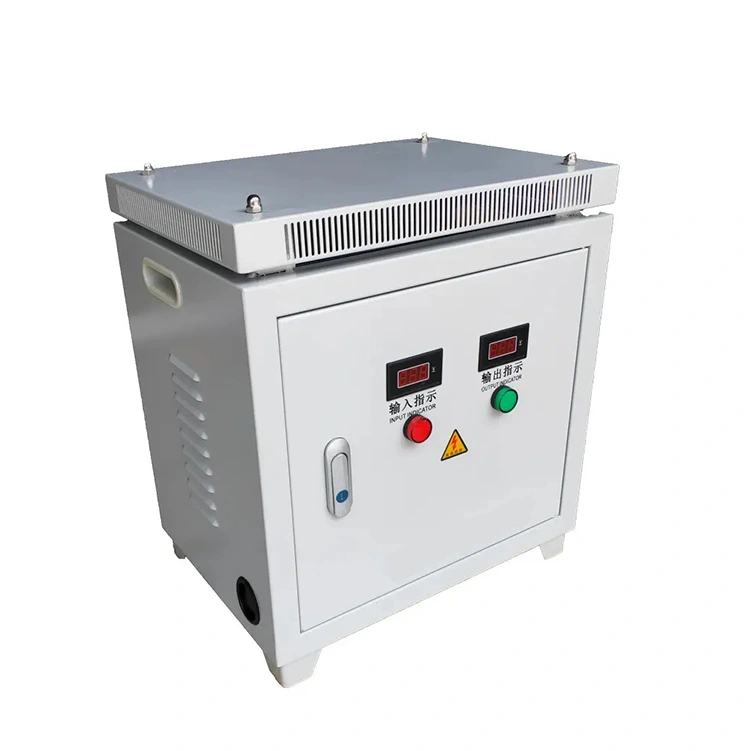

100v To 240v 15 Kva Single Phase Power Transformer

To fulfill the demands from terminal users, Conso Electrical Science and Technology Co., Ltd adopts high performance cold rolled grain oriented silicon steel sheets, such as 23GH90, 23GH85 or 23GH80, to produce each 100v to 240v 15 kva single phase power transformer to match the low energy consumption requirements. Meanwhile, Conso Electrical could produce more than 500 piece of 100v to 240v 15 kva single phase power transformers to make sure delivery within two to three weeks. Each 100v to 240v 15 kva single phase power transformer will be run a standard factory test before shipping to satisfy the technical specification from end users.

Send Inquiry

Product Description

High Safety and Reliability

The 100v to 240v 15 kva single phase power transformer is built with high grade silicon steel cores offering excellent magnetic performance and reduced losses. The windings are made of high purity conductors, to ensure low temperature rise and extended service life.

2. Effective Electrical Isolation

The 100v to 240v 15 kva single phase power transformer could clearly separate primary and secondary circuits to provide reliable electrical isolation. This design minimizes system interference and significantly improves operational safety.

3. Energy Efficient Performance

The 100v to 240v 15 kva single phase power transformer has optimized electromagnetic design, which results in low no load and load losses. The single phase power transformer meets the efficiency requirements specified in relevant IEC and GB standards.

4. Compact Design and Easy Installation

The compact structure requires minimal installation space, which makes the single phase power transformer suitable for integration into complete electrical assemblies. Both vertical and horizontal mounting options are available.

Product Parameter:

Rated Capacity		15 kVA
Primary Voltage		220/230/240; 380/400/415
Secondary Voltage		110V/ 120V
Rated Frequency		50 Hz or 60 Hz
Phase Number		Single Phase
Tapping Ranges		±5% or±2*2.5%
No Load Loss		≤ 1% of rated capacity
Load Loss		≤2.5% of rated capacity
InsulationClass	Dry type	Class F (150℃), Class H (180℃ )
Temperature Rise	Dry type	≤100 K(Class F);≤125 K(Class H)
Cooling Method		AN/AF
Max. Working Temperature		+40℃
Min. Working Temperature		-25℃, -40℃ or -60℃
