1.6 Mva Step Down Mini Substation Type Transformer
  • 1.6 Mva Step Down Mini Substation Type Transformer1.6 Mva Step Down Mini Substation Type Transformer
  • 1.6 Mva Step Down Mini Substation Type Transformer1.6 Mva Step Down Mini Substation Type Transformer
  • 1.6 Mva Step Down Mini Substation Type Transformer1.6 Mva Step Down Mini Substation Type Transformer

1.6 Mva Step Down Mini Substation Type Transformer

As a professional manufacturer of power distribution transformer, Conso Electrical Science and Technology Co., Ltd has been produce 1.6 mva step down mini substation type transformer since 2006 in Central Industrial Park of Yueqing, Yueqing City, Zhejiang Province, China. In Conso Electrical, it has collected rich experience to produce 1.6 mva step down mini substation type transformers. Ever more, Conso Electrical could produce 33kv 1.6 mva oil immersed transformers, 33kv 1.6 mva cast resin distribution transformers, and 1.6 mva compact substations. Conso Electrical has expected to build cooperation with clients by multiple options and possibilities.

Send Inquiry

Product Description

Video



1.6 mva step down mini substation type transformer Introduction:



The 1.6 mva means the total power of a 1.6 mva step down mini substation type transformer could supply. In Conso Electrical, it could produce various types of 1.6 mva step down mini substation type transformer, the advantages is as the followings:

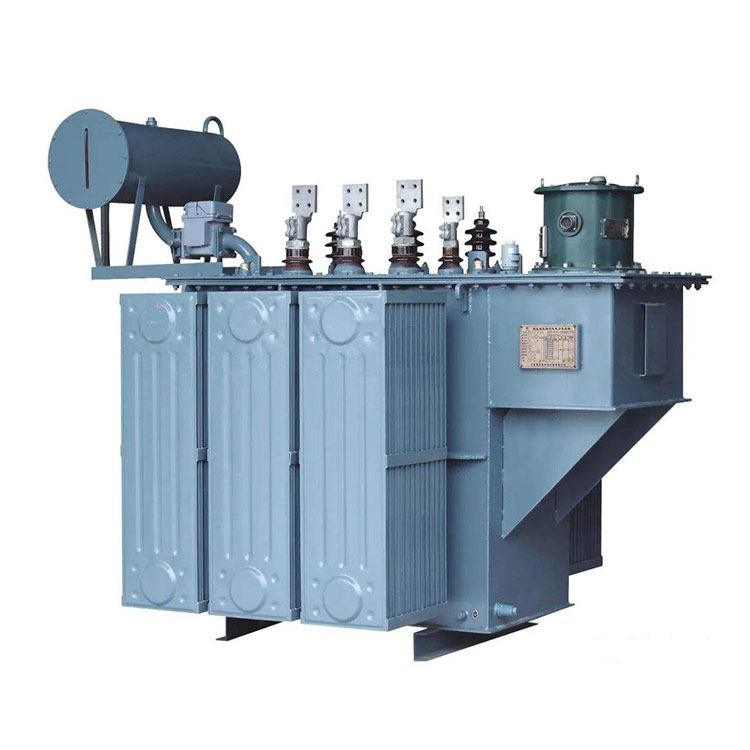

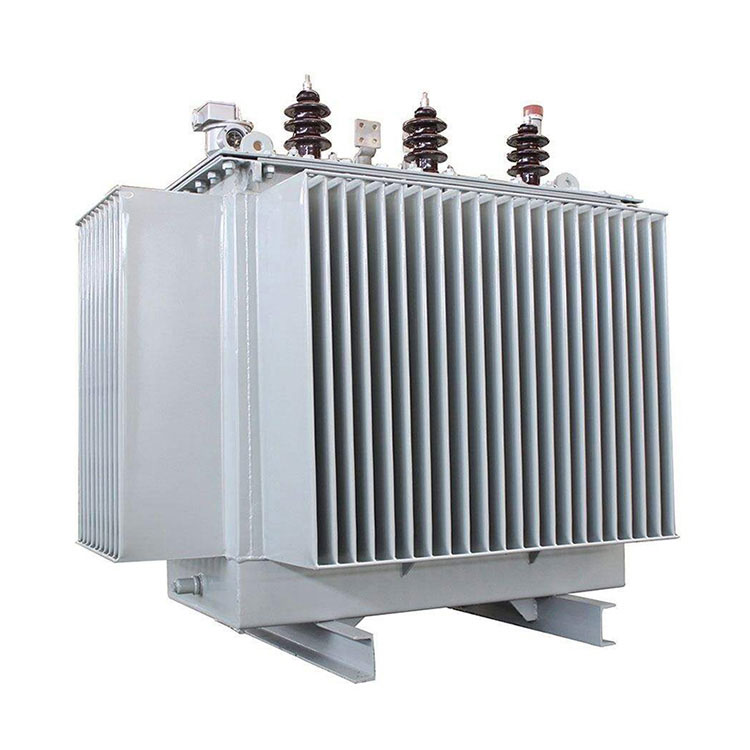

1.6 mva oil immersed transformer: a 1.6 mva oil immersed transformer has the lower material costs than a 1.6 mva cast resin transformer. Ever more, a 1.6 mva oil immersed transformer has the outstanding ability of over load within two hours that would not affect the designed service life. Additionally, the mineral oil of a 1.6 mva oil immersed transformer not only could supply the insulation demands, but also could keep coils and other components within designed working temperature.

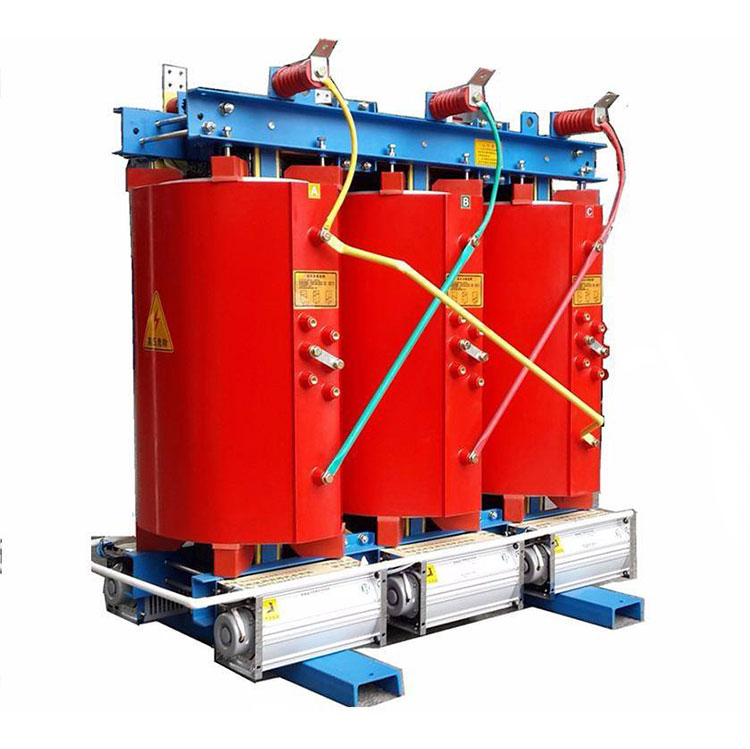

1.6 mva dry type transformer: the 1.6 mva dry type transformer is designed based on oil free to survive from environment pollution and fire risks caused by oil leakage. This makes 1.6 mva dry type transformers more popular in some environmentally sensitive places, such as hospitals, shopping malls, etc. Secondly, the insulation material of a 1.6 mva dry type transformer will not be influenced by the changing of natural temperature and altitude. It allows a 1.6 mva dry type transformer adopts various working environment such as on the mountain or in the desert. Additionally, compare with a 1.6 mva oil immersed transformer, a 1.6 mva dry type transformer is more convenient to maintain as it does not need to replace mineral oil.

1.6 mva pad mounted transformer: it is a electrical facility combines a oil immersed transformer, controlling units, protecting units, and measuring units. A 1.6 mva pad mounted transformer could install deep to the central of electricity demand independently.




1.6 mva step down mini substation type transformer Technical Parameter:


Rated Capacity:  1.6 mva or 1600 kva;
Mode:  S20-M-1600 or depends;
Voltage Ratio: 11/0.415 kV or depends;
Vector Group:  Dyn11; Yyn0;
Tapping Range:  -5%, 2.5%, 0, 2.5%, 5%;
Cooling System:  ONAN or AN/AF;
No loading loss:  1.05 kW ± 15%;
loading loss:  11.6 kW ± 15%;
Impedance:  4.5% ± 15%;
Short Circuit Current: ≤0.18%.


CONSO·CN 1.6 mva step down mini substation type transformer. Detail:


Transformer Winding:



Transformer in Application:



CONSO·CN 1.6 mva step down mini substation type transformer. Workshop:


Winding Workshop

Coil Drying Area

Oil Filling Area

Finished Product Area


1.6 mva step down mini substation type transformer. Testing Center:



1.6 mva step down mini substation type transformer. Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine


CONSO·CN 1.6 mva step down mini substation type transformer. Ready to Ship:



Package method:


Wooden Box

Steel Structure
