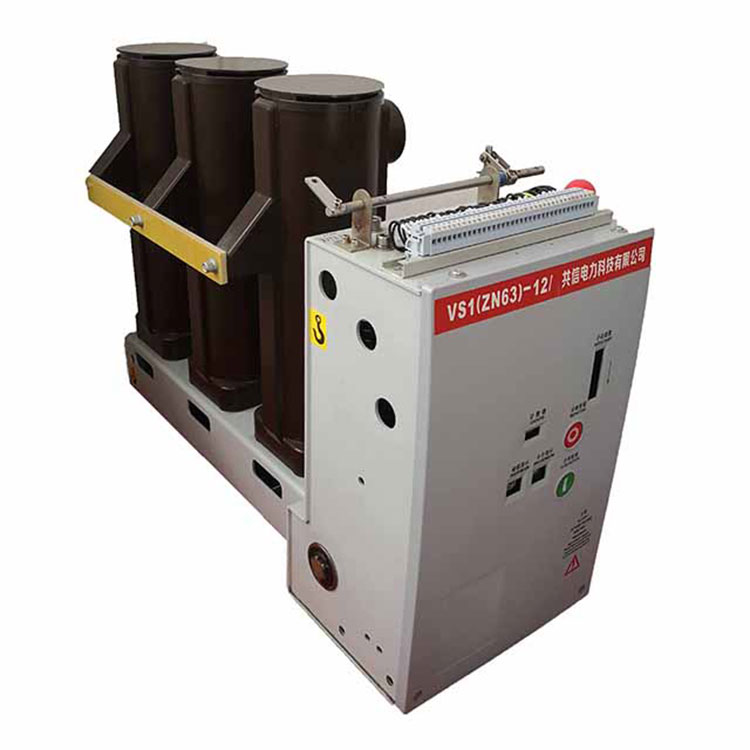

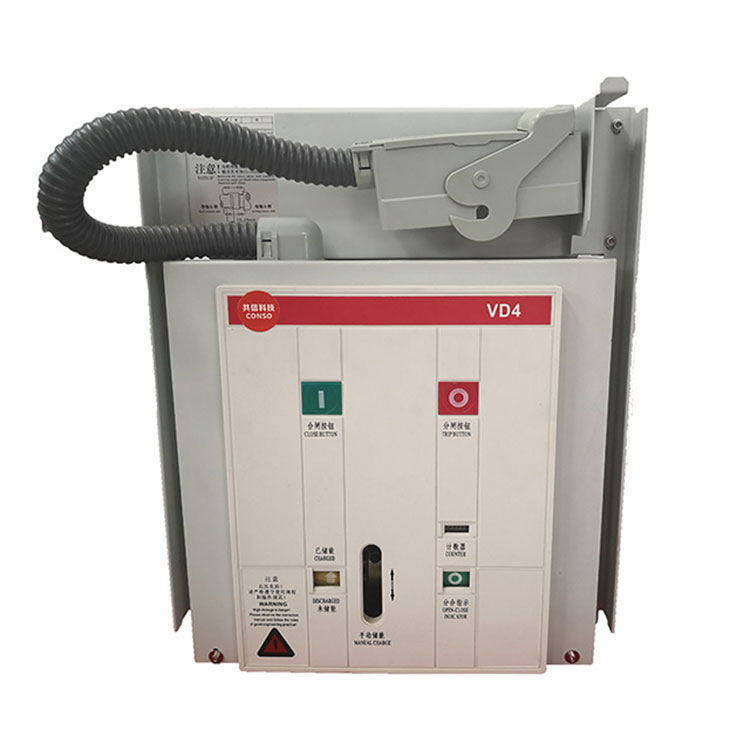

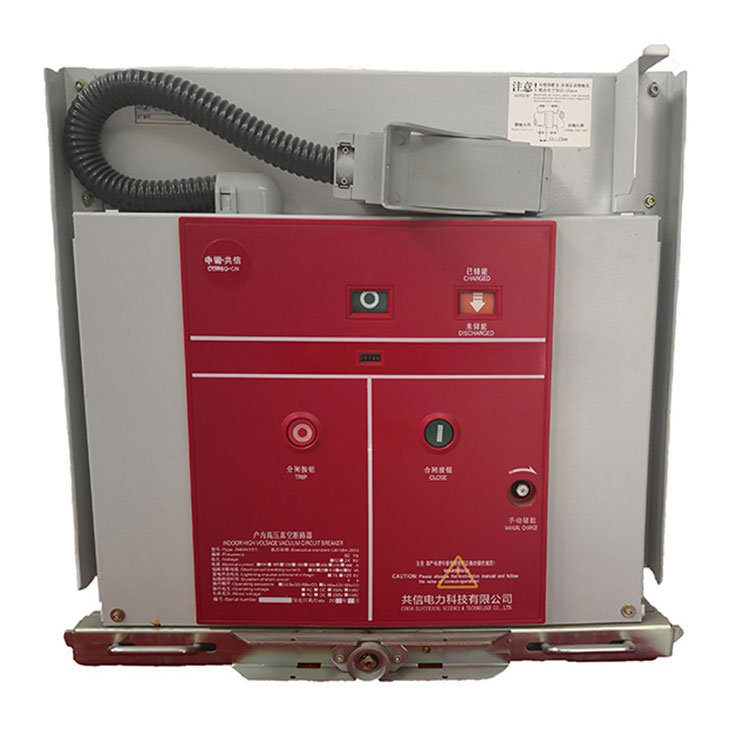

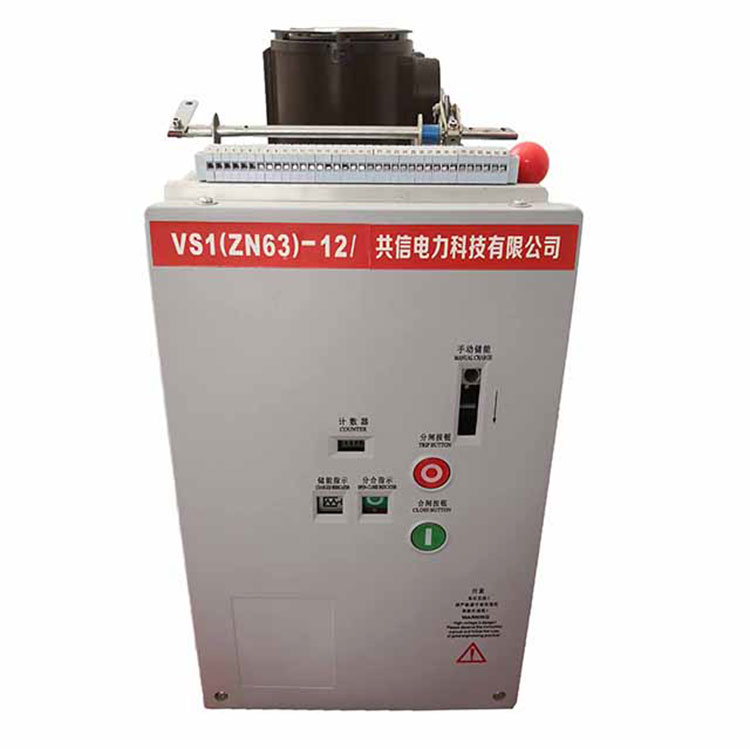

Zn63a Vs1 12 Indoor Vacuum Circuit Breaker
  • Zn63a Vs1 12 Indoor Vacuum Circuit BreakerZn63a Vs1 12 Indoor Vacuum Circuit Breaker
  • Zn63a Vs1 12 Indoor Vacuum Circuit BreakerZn63a Vs1 12 Indoor Vacuum Circuit Breaker
  • Zn63a Vs1 12 Indoor Vacuum Circuit BreakerZn63a Vs1 12 Indoor Vacuum Circuit Breaker
  • Zn63a Vs1 12 Indoor Vacuum Circuit BreakerZn63a Vs1 12 Indoor Vacuum Circuit Breaker
  • Zn63a Vs1 12 Indoor Vacuum Circuit BreakerZn63a Vs1 12 Indoor Vacuum Circuit Breaker
  • Zn63a Vs1 12 Indoor Vacuum Circuit BreakerZn63a Vs1 12 Indoor Vacuum Circuit Breaker

Zn63a Vs1 12 Indoor Vacuum Circuit Breaker

Conso Electrical Science and Technology Co., Ltd, established in 2006, emphasizing in assembling high-quality Zn63a Vs1 12 Indoor Vacuum Circuit Breakers. The enterprise is a medium-sized business which owned more than 12000 m2 production plant. The main manufacturing goods includes electrical transformers, Electrical Switchgear, and Vacuum Circuit Breakers. In business for over ten years, the company takes developing advanced products and cost-effective processes as the expansion objective to encourage entrepreneurs from all regions.

Send Inquiry

Product Description

Video



Zn63a Vs1 12 Indoor Vacuum Circuit Breaker Introduction





ZN63A and VS1 Vacuum Circuit Breakers are electrical devices utilized in medium and high-voltage applications. They employ vacuum technology for efficient interruption of electrical currents, ensuring the safety and reliability of power distribution systems. ZN63A is commonly used in medium-voltage settings, while VS1 is preferred for high-voltage applications. Both VCBs offer compact, maintenance-free solutions, contributing to the protection and efficient operation of electrical circuits.



Technical Parameter:



Rated Current(A)

630 ☒  1250 □  1600 □   2000 □   2500 □   3150 □   4000 □

Breakimg Current(kA)

20 □    25 ☒    31.5 □     40 □

Rated Voltage(kV)

12 ☒          24 □

Structural Style

Stationary Type □

Trolley Type ☒

Manual Type ☒(standard)    Motor Type □

Mechanical life

10000 times ☒(standard)            20000 times □

Interrupter

Cast Pole □              Insulating Cylinder ☒(standard)

Interrupter Mounting

Front Mounting ☒          Side Mounting □

Phase Distance

150mm □          210mm ☒        275mm □

Silver Coating



Contact  Terminal   6+1μ ☒(standard)   8+1μ □

Contact  Arm      6+1μ ☒(standard)   8+1μ □

Operation Voltage

AC ☒ DC ☒  220☒  110 □   48 □

Anti-Trip Coil ☒ (standard)

Over-loading Coil

1 piece □  2 pieces □  3 pieces □;   with a under-voltage coil □

5 A □     3.5A □   Custom_____

Mechanical Interlocking

Upside □ Downside □ ; on left □/ on right □

Earthing  Type

By the Bottom Side ☒(standard)     By the Track Surface □



CONSO·CN Zn63a Vs1 12 Indoor Vacuum Circuit Breaker Detail:

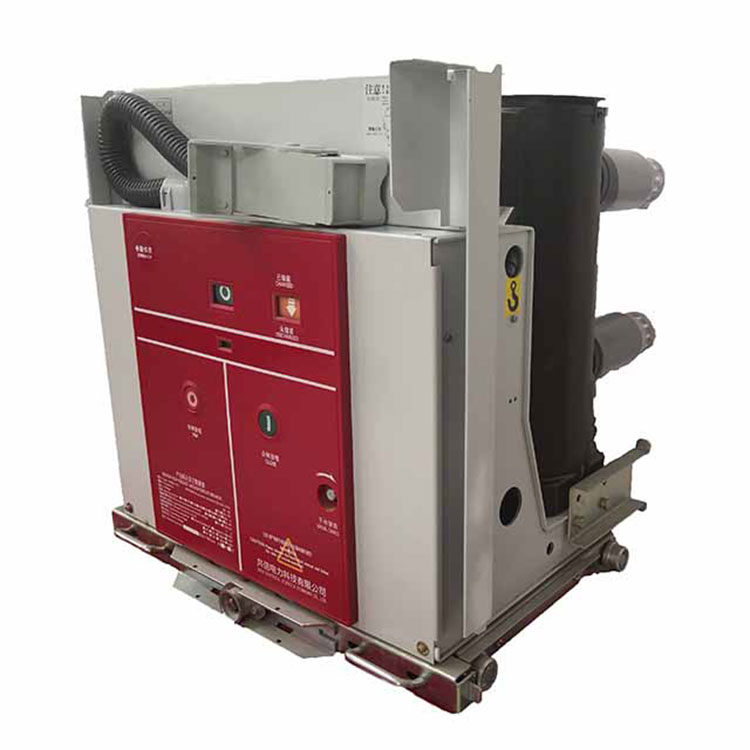

Side Mounting
Insulating Cylinder

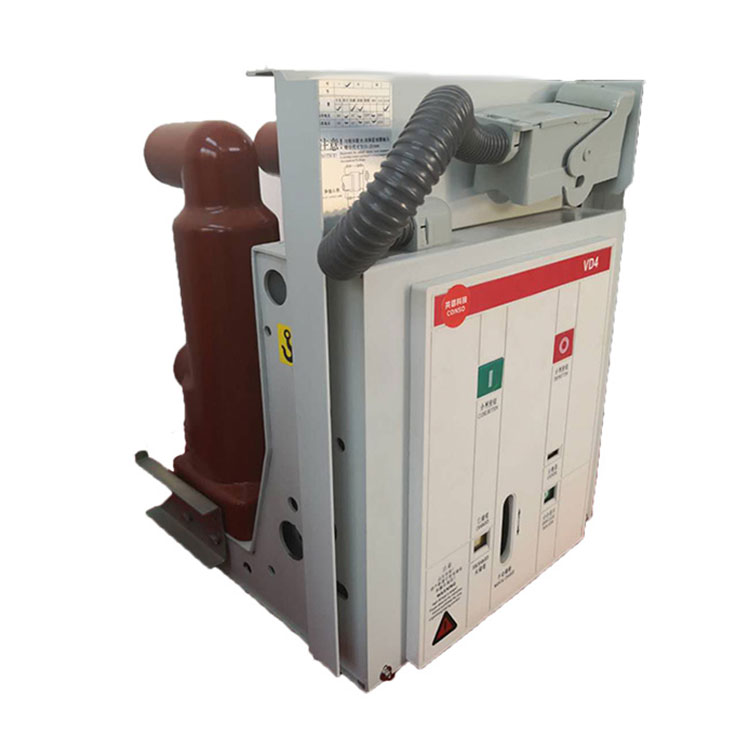

Cast Pole


About the Customizable Service:


As a professional Zn63a Vs1 12 Indoor Vacuum Circuit Breaker Manufacturer, Conso Electrical Science and Technology Co., Ltd. lovely to provide the Product customization services to fit the needs from clients such as:

1.Cast Pole Vacuum Circuit Breaker: the terms of “cast pole” refers to the interrupter long-casting with epoxy resin to provides an advanced mechanical strength and the proper insulation to prevent electrical arcing or tracking between phases or to ground.

2.Side Mounted Vacuum Circuit Breaker: the terms of “Side Mounted” refers to the interrupter vertically mounted. It makes the VCB longer but flatter on appearance to meet the designing of switchgear such as in a sf6 loading breaker panel.

3.Insulating Cylinder Vacuum Circuit Breaker: the terms of “Insulating Cylinder” refers to the interrupter installed in the Insulating Cylinder horizontally. It is the most comment method to install interrupters as the designing of KYN28 switchgear and the cost-efficient consideration.

Of course, Conso Electrical also accept multiple selections such as install extra an under-voltage coil or an over loading coil, and an modular operating mechanism or an normal one.



CONSO·CN Zn63a Vs1 12 Indoor Vacuum Circuit Breaker Workshop:

Assembly Area

Components Storage Area


Zn63a Vs1 12 Indoor Vacuum Circuit Breaker in Assembling:



About the Delivery Time:


Conso Electrical Science and Technology Co., Ltd is specialized in produce Zn63a Vs1 12 Indoor Vacuum Circuit Breaker. However, different types of Breakers has a different delivery time:

Cast Pole Vacuum Circuit Breaker: 150 piece in 30 days;

Side Mounted Vacuum Circuit Breaker: 100 piece in 30 days;

Insulating Cylinder Vacuum Circuit Breaker: 200 piece in 30 days.

Fortunately, the current production is not the limits. We have the ability to expand the production to adhere to a larger demand with a tighter delivery time.


About the Quality Assurance:


Conso Electrical Science and Technology Co., Ltd has a significant time cost on select components. Not only because of “the quality does matter”, but more smooth between components working. The finished Zn63a Vs1 12 Indoor Vacuum Circuit Breaker run a series of necessary test such as closing test and withstand voltage test. Each Zn63a Vs1 12 Indoor Vacuum Circuit Breaker owns a factory number when passed each product test.

Conso Electrical will re-send components or a finished Zn63a Vs1 12 Indoor Vacuum Circuit Breaker if any damages incurred in Shipping. Meanwhile, we will provide the technical support during Zn63a Vs1 12 Indoor Vacuum Circuit Breaker in service.


Zn63a Vs1 12 Indoor Vacuum Circuit Breaker in Package:



Zn63a Vs1 12 Indoor Vacuum Circuit Breaker Ready to ship:
