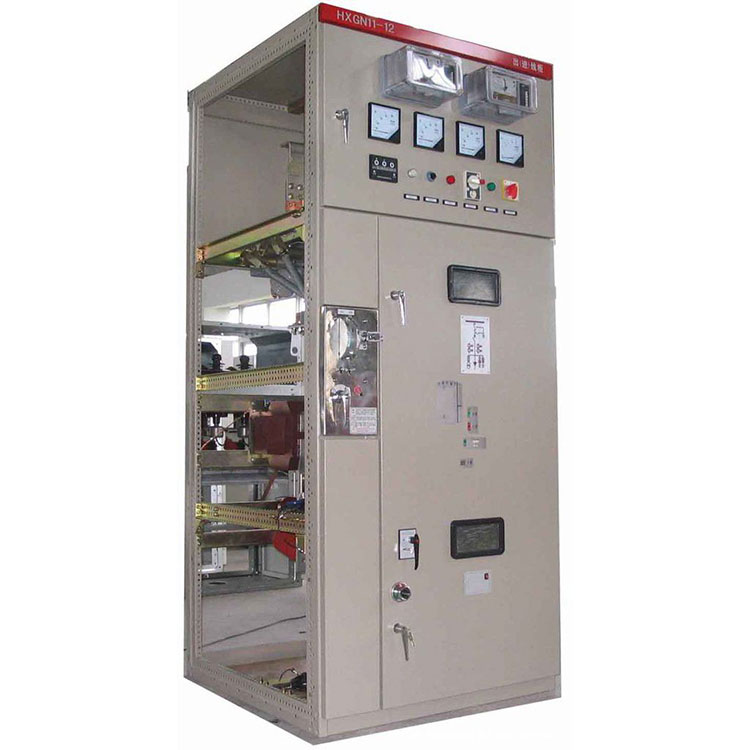

How Does Air Insulated Switchgear Work in Electrical Distribution Networks

If you’re managing an electrical distribution network, you’ve likely asked yourself: how can we ensure reliable power distribution while keeping costs and maintenance in check? A critical component in answering this question is the Air Insulated Switchgear. As a robust and time-tested solution, this equipment forms the backbone of countless medium-voltage networks worldwide. At CONSO·CN, we specialize in engineering these systems to address real-world operational challenges, blending proven technology with modern innovation to deliver unwavering performance.

What Exactly Is Air Insulated Switchgear and Why Is It So Widely Adopted

Simply put, Air Insulated Switchgear uses ambient air as the primary insulating medium to isolate live conductive parts. Unlike gas or oil-based systems, it relies on air gaps and solid insulation barriers. This design offers remarkable simplicity and cost-effectiveness. For facility managers and network operators, this translates into easier visual inspections, straightforward maintenance, and lower lifecycle costs. In my experience with clients, the tangible accessibility of components within an Air Insulated Switchgear lineup significantly reduces troubleshooting time and enhances operational confidence.

How Does the Design of Our Air Insulated Switchgear Solve Common Pain Points

We at CONSO·CN have listened to perennial industry frustrations—space constraints, safety concerns, and the need for future expansion. Our design philosophy directly tackles these issues. Our panels are engineered for a compact footprint without compromising safety clearances. Key features include:

• Secure Interlocking Systems: Prevents incorrect operation sequences, a primary source of operator hazard.

• Modular, Extendable Design: Allows networks to grow seamlessly by adding panels without overhauling the entire switchboard.

• Advanced Arc Management: Incorporates dedicated channels and flaps to direct and safely vent any internal arc energy, protecting personnel and adjacent equipment.

What Technical Specifications Should You Look For in a Reliable System

Evaluating product parameters is crucial. Here are the core specifications of our standard Air Insulated Switchgear, designed for 12kV to 40.5kV applications:

A closer look at the components reveals why performance is consistent:

• Circuit Breaker: Spring-operated or stored-energy mechanism, with high interruption capacity.

• Busbar System: Tin-plated copper, configured for optimal current distribution and thermal performance.

• Instrumentation: Integrated digital or analog meters for voltage, current, and power monitoring.

• Protection Relays: Microprocessor-based units offering precise overcurrent, earth fault, and other custom protections.

This meticulous attention to parameters ensures every CONSO·CN Air Insulated Switchgear unit delivers not just on paper, but under the demanding conditions of your daily operations.

Can Air Insulated Switchgear Truly Be a Future-Proof Investment

Absolutely. The inherent flexibility of a well-designed Air Insulated Switchgear system makes it adaptable. Whether you’re integrating renewable energy sources, adding capacitor banks for power factor correction, or upgrading protection schemes, the modular architecture facilitates these changes. Choosing a partner like CONSO·CN means investing in a platform that evolves with your network’s needs, backed by engineering support and a commitment to long-term reliability.

Are You Ready to Enhance Your Network's Reliability and Safety

Understanding how Air Insulated Switchgear works is the first step. Implementing the right solution is what defines your network’s future performance and safety. At CONSO·CN, we don’t just supply equipment; we deliver tailored solutions built on decades of expertise. If you are evaluating an upgrade, a new installation, or simply seeking expert advice on optimizing your distribution network, we are here to help. Contact us today with your specifications or project challenges. Let’s discuss how our robust switchgear solutions can power your operations with confidence. Please reach out for a detailed consultation or to request comprehensive product datasheets.
