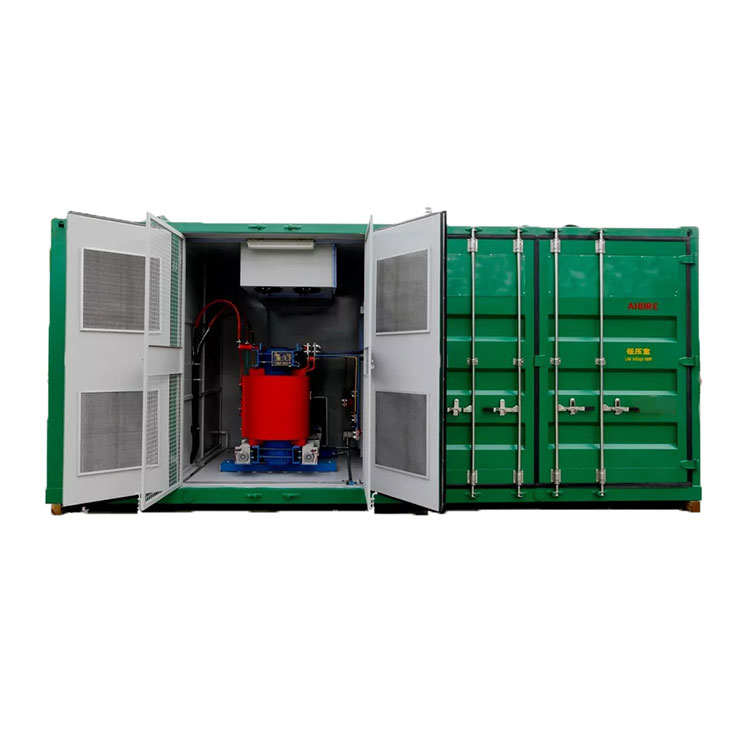

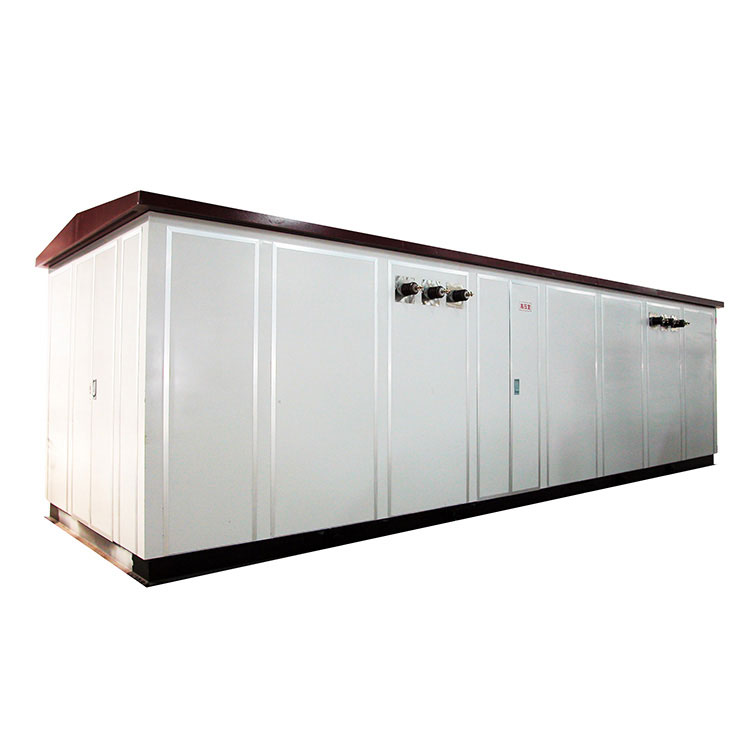

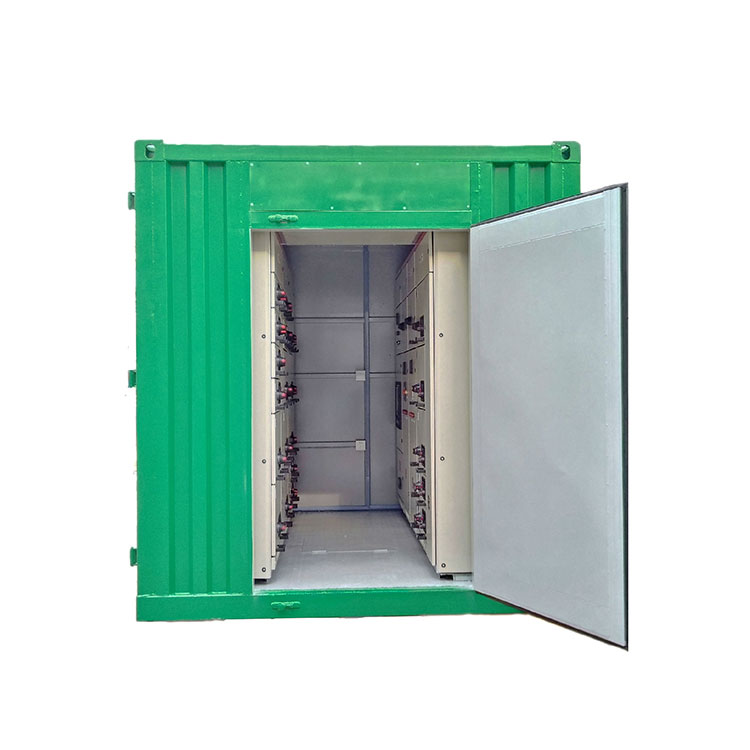

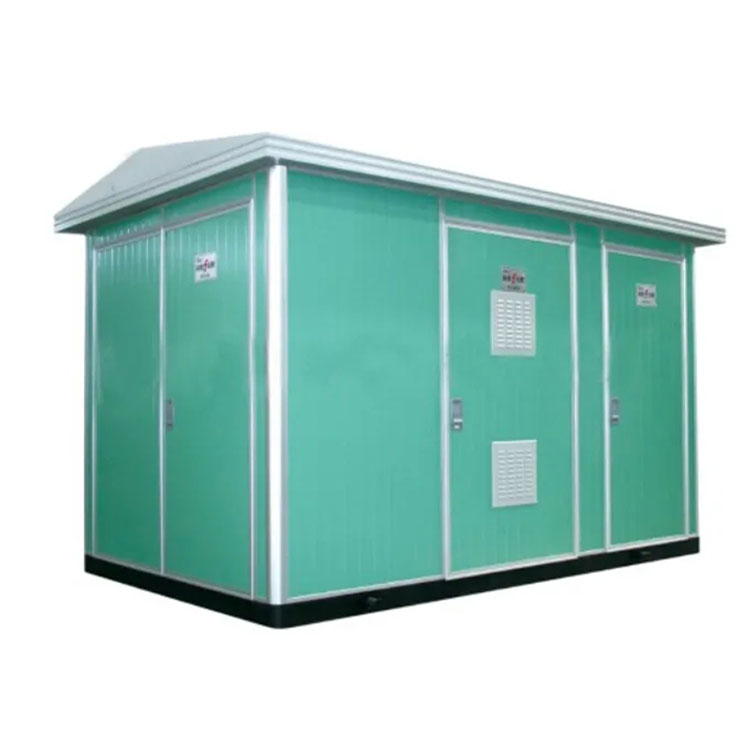

Electric Wind Power Unitized Substation

a electric wind power unitized substation has a more complicated structure than a common compact substation, because the electric wind power unitized substation equips more relay to protect the power line and transformer body. Conso Electrical Science and Technology Co., Ltd is as experienced manufacturer to produce electric wind power unitized substations, which accumulated various designing solutions from cooperating with power grid corporations. The engineers will combine the requirement of users with our designing solutions to make the solution more suitable. We aim to provide a successful product user experience for clients.

Send Inquiry

Product Description

Conso stands as a distinguished leader in China as a manufacturer specializing in Electric Wind Power Unitized Substations, providing products of superior quality at competitive prices. Feel free to reach out to us for any inquiries or further information. Committed to excellence in the field of electrical power, we ensure that our solutions not only meet but exceed industry standards. Your contact is highly valued as we aim to address your specific needs with precision and expertise in the domain of electric wind power unitized substations.

Video

Electric wind power unitized substation Introduction：

1 Use in Harsh Environments

Due to the specific nature of wind farm environments, wind farms are often seen in regions with strong winds, such as the Northwest and Northeast, as well as coastal areas with sufficient wind power for electricity generation. Additionally, wind farms can be found in places with heavy salt spray. These natural conditions in these areas are quite harsh, so it is essential for personnel to pay attention to the protection of the electric wind power unitized substation' enclosures when used in these regions. Furthermore, the switches inside the transformer play an extremely important role in the subsequent operation of the transformer. Therefore, personnel need to apply advanced materials for corrosion resistance, freeze resistance, exposure protection, and salt spray resistance to these switches in advance to ensure the integrity and accuracy of the switches during the transformer's operation.

2 Prolonged Low Load Operation

Under the influence of the working environment in wind farms, transformers often operate in a state of low load. Additionally, seasonal changes can also affect wind power, resulting in variations in the working conditions of wind power generation due to seasonal changes. Generally, most transformers have an average annual load rate of around 30%, which is the primary reason for prolonged no-load operation of transformers. The no-load operation of transformers also incurs certain losses, so personnel strictly control the losses during the no-load operation of these transformers. To enable wind turbines to have self-diagnostic capabilities during operation, wind turbines typically employ microcomputer control. This means that when a wind turbine experiences an overload situation during operation, it will be subject to speed limitations or mandatory shutdown under the influence of microcomputer control. Transformer capacity is generally greater than that of wind turbines, so transformers do not experience overloads during operation, and thus, there is no need to consider overloading of transformers.

3 Careful Component Selection

Wind power generation devices are inevitably prone to accidents. To minimize the impact of such occurrences on the power grid, appropriate high-voltage load switches should be installed on the 35kV electric wind power unitized substation. This allows for the timely shutdown of the power source in case of overload in the transformers. The weather in nature is ever-changing, so to prevent the damaging effects of high voltage on transformers caused by high voltage in wind power stations, lightning protection devices should be installed. This helps prevent occurrences of high-voltage striking transformers. At times, the electric current generated by wind power can be highly unstable. Therefore, comprehensive installation of protective fuses in a series is required on the electric wind power unitized substation to protect them from all angles.
