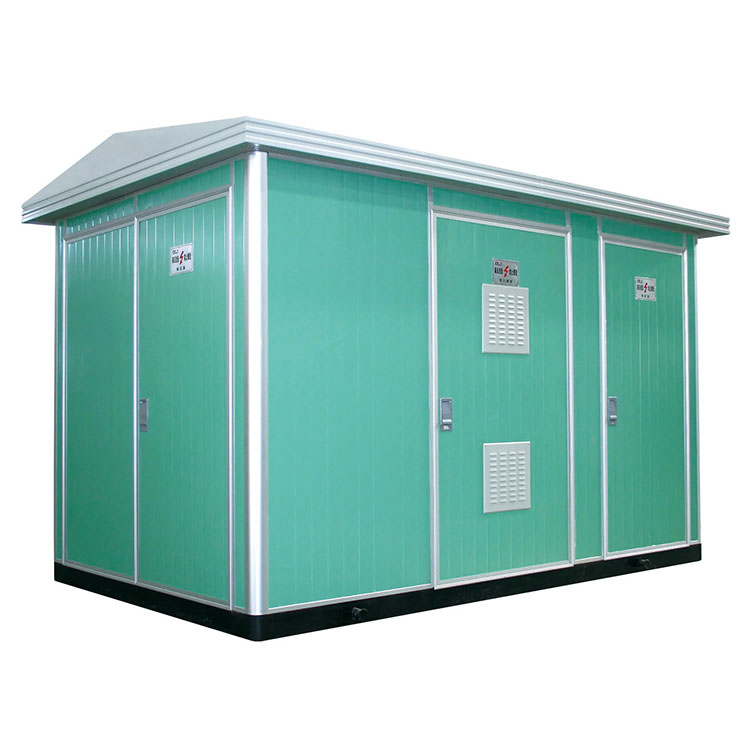

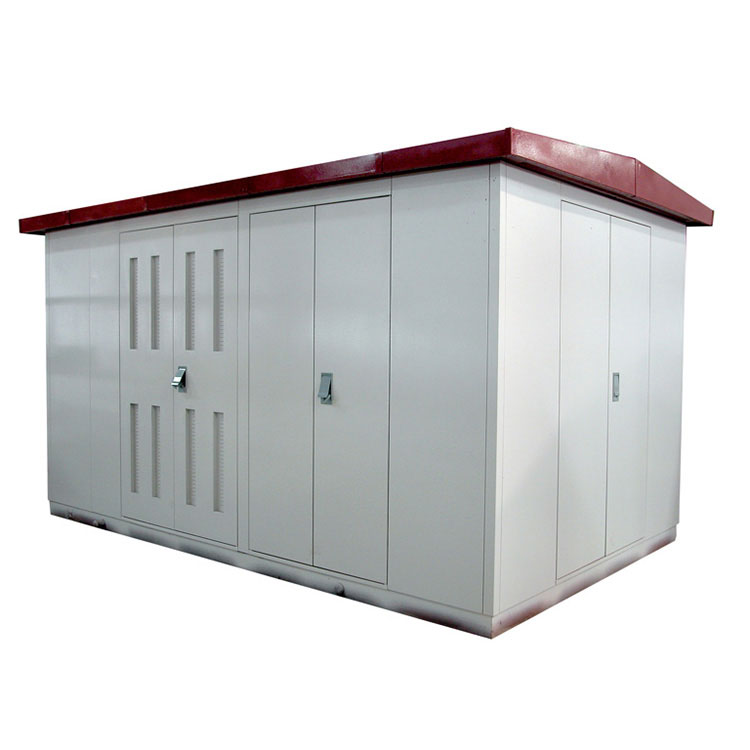

11 33 Kv Gis Ais 630 Kva Mini Substation

a 11 33 kv gis ais 630 kva mini substation is an electrical equipment which assembles a 630 kva distribution transformer, electrical panel into a box enclosure. A 11 33 kv gis ais 630 kva mini substation not only has the comprehensive fucitons of a substation, but it has a compact structure to allow a 11 33 kv gis ais 630 kva mini substation set up in the central of a city. Conso Electrical Science and Technology Co., Ltd has been a factory to produce 11 33 kv gis ais 630 kva mini substation since 2006. Conso Electrical has collected an abundance of solutions of 11 33 kv gis ais 630 kva mini substation from business cooperation.

Send Inquiry

Product Description

Video

11 33 kv gis ais 630 kva mini substation introduction：

The 11 33 kv gis ais 630 kva mini substation is outdoor pre-installed substations suitable for public access, with a rated capacity of 630 kVA, and a rated primary voltage of 11 kv or 33 kv. 11 33 kv gis ais 630 kva mini substations are designed for use in urban high rise buildings, urban and rural areas, residential communities, high-tech development zones, small and medium sized factories, mines, oil fields, and temporary construction sites, serving as distribution points for receiving and distributing electrical energy in distribution systems.

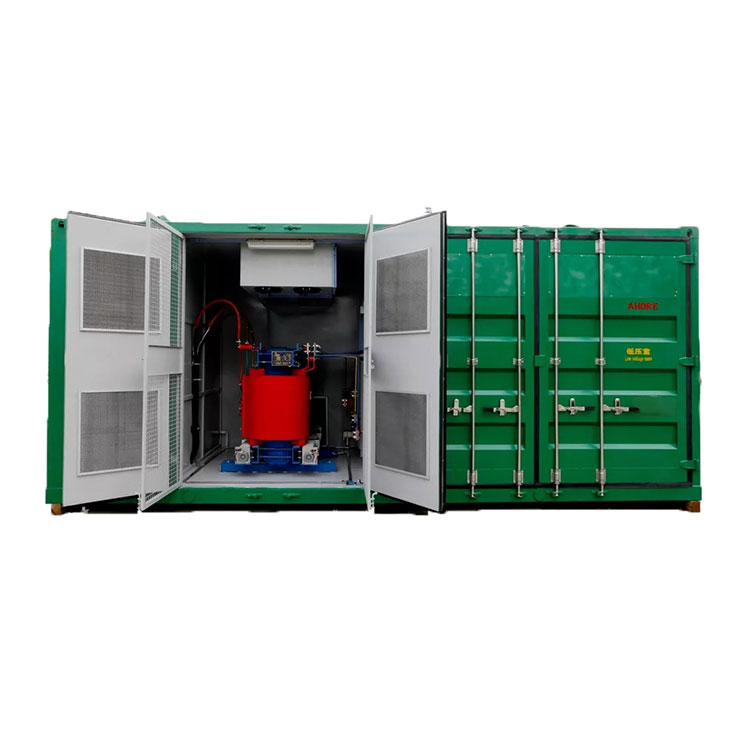

11 33 kv gis ais 630 kva mini substations combine high voltage electrical equipment, transformers, low voltage electrical equipment, etc., into compact complete distribution units. The enclosure is made of channel steel, aluminum alloy, and flame retardant composite materials. 11 33 kv gis ais 630 kva mini substations are characterized by strong system integration, small size, compact structure, safe and reliable operation, easy maintenance, and mobility. Compared with conventional civil built substations, 11 33 kv gis ais 630 kva mini substations with the same capacity typically occupy only 1/10 to 1/5 of the area, significantly reducing design and construction workload and costs. 11 33 kv gis ais 630 kva mini substations can be used in ring network distribution systems, dual power system, or radial terminal distribution systems. 11 33 kv gis ais 630 kva mini substations are a new type of complete equipment for the construction and renovation of urban and rural power supply system.

11 33 kv gis ais 630 kva mini substation Technical Parameter：

Rated Capacity:	630 kVA;
Rated Frequency:	50 Hz or 60 Hz;
Rated Voltage for Primary Side :	10kv, 11kv, 13.8kV, 30kv, 33kv, etc;
Rated Voltage for Secondary Side:	0.22 kv; 0.4 kv; 0.415 kv, etc;
Enclosure Material:	Composite Plate, 1.8 mm Cold Rolled Steel Plate, and Container Enclosure;
Transformer Type:	Cast Resin Type or Oil Filed Type;
Rated peak withstand current:	50 kA for Primary Voltage Switchgear, 63 kA for Secondary voltage switchgear;
Noise Level:	≤55db;
