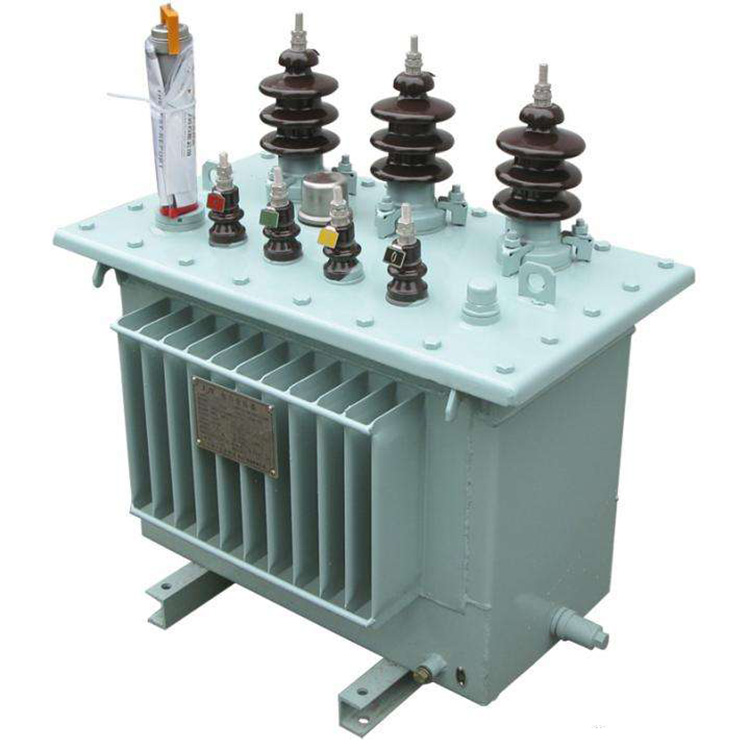

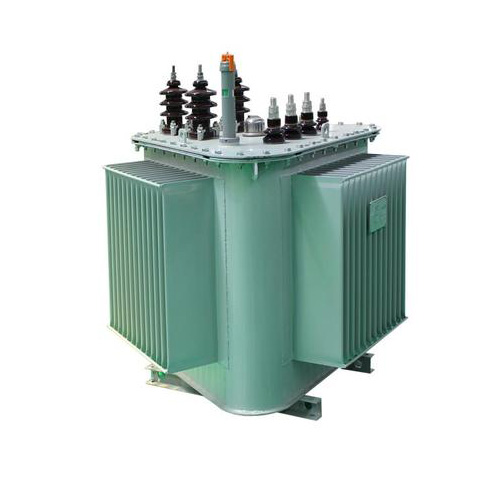

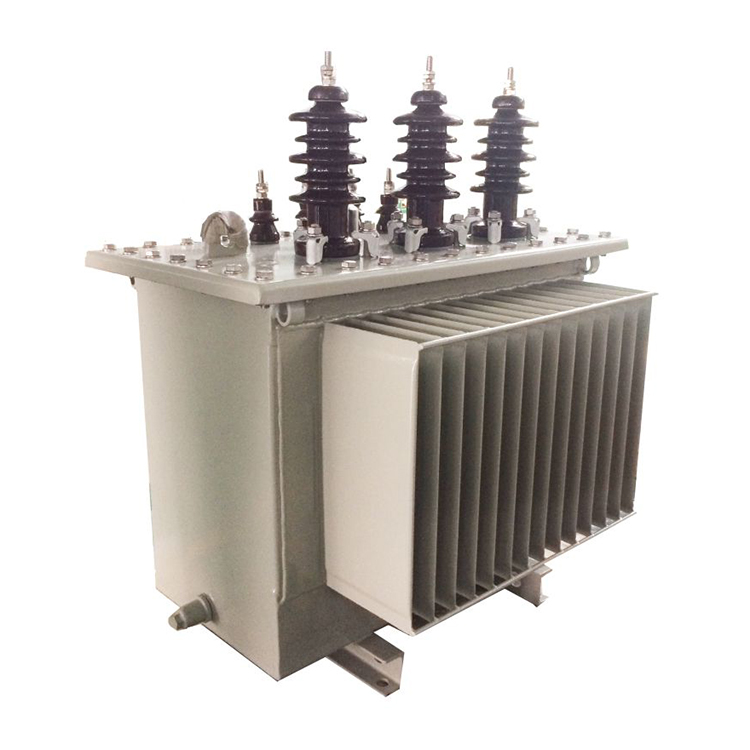

50 Kva Pole Mounted Distribution Transformer
  • 50 Kva Pole Mounted Distribution Transformer50 Kva Pole Mounted Distribution Transformer
  • 50 Kva Pole Mounted Distribution Transformer50 Kva Pole Mounted Distribution Transformer
  • 50 Kva Pole Mounted Distribution Transformer50 Kva Pole Mounted Distribution Transformer
  • 50 Kva Pole Mounted Distribution Transformer50 Kva Pole Mounted Distribution Transformer

50 Kva Pole Mounted Distribution Transformer

Conso Electrical Science and Technology Co., Ltd. has extensive experience to manufacture pole mounted transformers and distribution transformers. One of the most common mode is the 50 kVA pole mounted distribution transformer. The company mainly provides pole mounted transformer to power gird company, such as State Grid Corporation of China. To deliver the optimal service, Conso Electrical could purchase the accessory, which installs with pole mounted transformers, such as surge arrester and cutout fuse. Conso electrical sold distribution transformers to South American, Middle East, Southeast Asia and Africa. Your presence at our factory is welcomed for partnership negotiations.

Send Inquiry

Product Description

Video



The 50 kVA pole mounted distribution transformer key features:


Outdoor Installation: Engineered for outdoor use, 50 kVA pole mounted distribution transformers are mounted on utility poles to withstand various environmental conditions.

Voltage Regulation: the 50 kVA pole mounted distribution transformer effectively steps down high-voltage electricity to the desired lower voltage levels, ensuring consistent power supply.

High Efficiency: Our Pole Mounted Transformers are optimized for energy efficiency, minimizing power loss during transmission.

Durability: Constructed with robust materials, Pole Mounted transformers are built to endure harsh weather conditions, providing long-lasting performance.

Compact Design: Their compact and space-saving design makes them easy to install on utility poles.


The 50 kVA pole mounted distribution transformer Technical Data:


Mode:  S11-M-50;
Rated Capacity:  50 kVA;
Phase Number:  Single Phase or three phase;
No Loading Loss:  130 ± 10% W or as Requirements;
Loading Loss:  870/910 ± 10% W or as Requirements;
Vector Group:  Dyn5;Dyn11; Yyn0;
Insulation Method:  full sealed Oil immersed;
Tapping Method:  ±2*2.5% (standard), offline;
Basic Insulation Level:  75kV/35kV(LI/AC);
Working temperature:  -40℃to 40℃;


CONSO·CN The 50 kVA pole mounted distribution transformer Detail:


Oil Filled
Oil Emptied
Amorphous Alloy
Rolled Iron Core


CONSO·CN The 50 kVA pole mounted distribution transformer Workshop:


Winding Workshop

Coil Drying Area

Oil Filling Area

Finished Product Area


The 50 kVA pole mounted distribution transformer Testing Center:



The 50 kVA pole mounted distribution transformer Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine



CONSO·CN The 50 kVA pole mounted distribution transformer Ready to Ship:



Package method:


Wooden Box

Steel Structure
