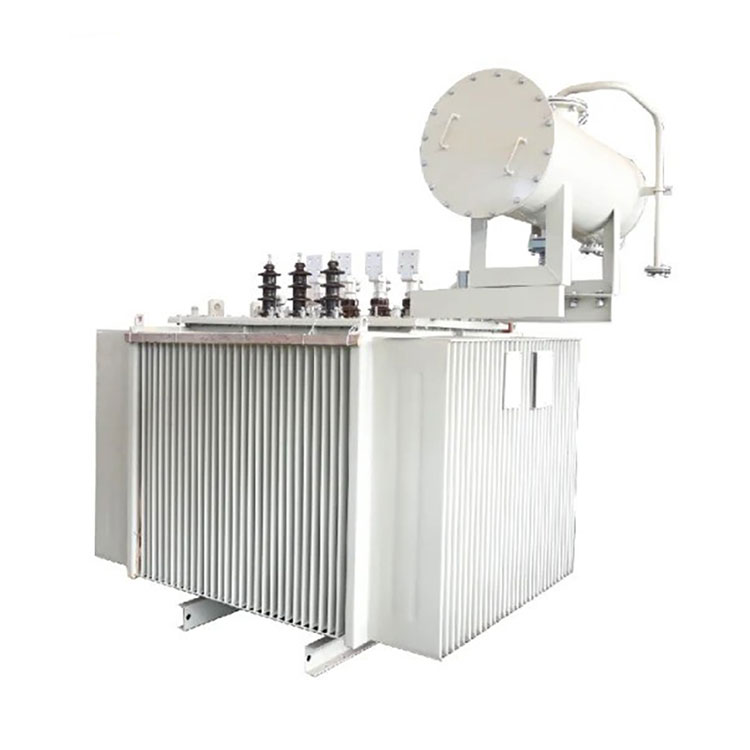

20 Kv 630 Kva 3 Phase Distribution Transformer
  • 20 Kv 630 Kva 3 Phase Distribution Transformer20 Kv 630 Kva 3 Phase Distribution Transformer
  • 20 Kv 630 Kva 3 Phase Distribution Transformer20 Kv 630 Kva 3 Phase Distribution Transformer
  • 20 Kv 630 Kva 3 Phase Distribution Transformer20 Kv 630 Kva 3 Phase Distribution Transformer

20 Kv 630 Kva 3 Phase Distribution Transformer

Conso Electrical Science and Technology Co., Ltd has been produced 10 kv to 35 kv distribution transformers, compact substation, and gas insulated switchgear in Yueqing, Zhejiang, China since 2006. Conso Electrical aims to design and produce a 20 kv 630 kva 3 phase distribution transformer with the strength of compact structure, beautiful appearance, and maintenance free. In Conso Electrical, each 20 kv 630 kva 3 phase distribution transformer need to stand factory test until it read to ship. To deliver a smooth using experience, each 20 kv 630 kva 3 phase distribution transformer will add an extra fixing device during shipping.

Send Inquiry

Product Description

Video



20 kv 630 kva 3 phase distribution transformer Introduction:



Normally, the 20 kv 630 kva 3 phase distribution transformer is widely apply on the electricity consumption of industrial, commercial and residential. Compare with a 10 kv 630 kva 3 phase distribution transformer, the 20 kv 630 kva 3 phase distribution transformer has a longer transmission radius. That is to say, a 20 kv 630 kva 3 phase distribution transformer can transmit electricity to more area than a 10 kv distribution transformer.

In Conso Electrical, it could produce 20 kv 630kva oil immersed transformer, 20 kv 630 kva dry type distribution transformer and 20 kv 630 kva pad mounted transformer. Each type of 20 kv 630 kva 3 phase distribution transformer has unique advantages. For example, the 20 kv 630kva oil immersed transformer has a lower material costs and better cooling capacity and the 20 kv 630 kva dry type distribution transformer normally use in indoor environment. Conso Electrical aims to provide alternative option and possibilities to distributor and terminal users.



20 kv 630 kva 3 phase distribution transformer Technical Data:


Rated Capacity:  630 kVA;
Mode:  S11-M-630/20/0.4 or depends;
Voltage Ratio:  20/0.4 kV;
Cooling System:  ONAN; AN/AF
No Loading Loss:  810 ±15% W;
Loading Loss:  6820 ±15% W;
Impedance:  6.0% ± 10%;
Tapping Method:  OFFLTC;
Tapping Range :±2*2.5%;
Vector Group:  Dyn11; Yyn0.


CONSO·CN 20 kv 630 kva 3 phase distribution transformer Detail:


Oil Filled
Oil Emptied
Amorphous Alloy
Rolled Iron Core


CONSO·CN 20 kv 630 kva 3 phase distribution transformer Workshop:


Winding Workshop

Coil Drying Area

Oil Filling Area

Finished Product Area


20 kv 630 kva 3 phase distribution transformer Testing Center:



20 kv 630 kva 3 phase distribution transformer Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine


CONSO·CN 20 kv 630 kva 3 phase distribution transformer Ready to Ship:



Package method:


Wooden Box

Steel Structure
