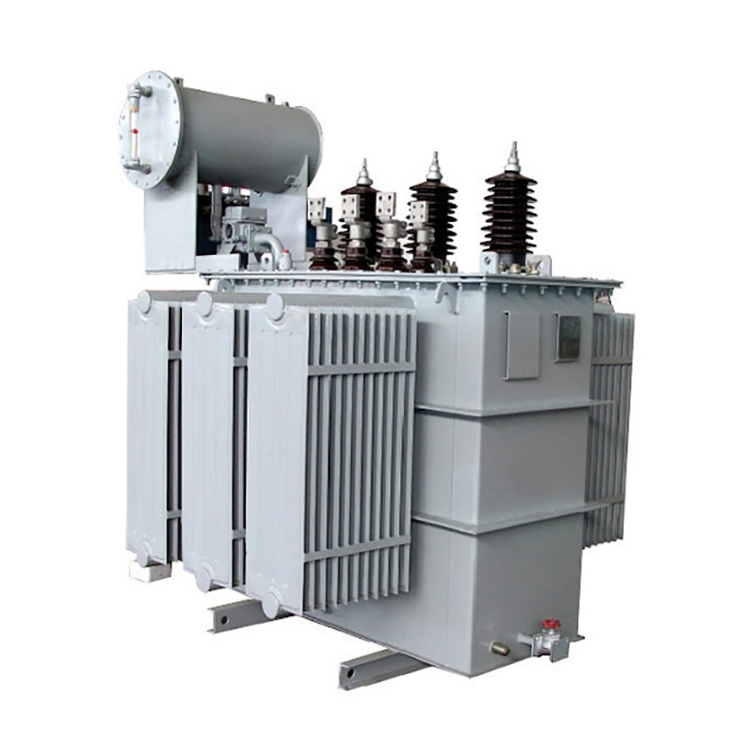

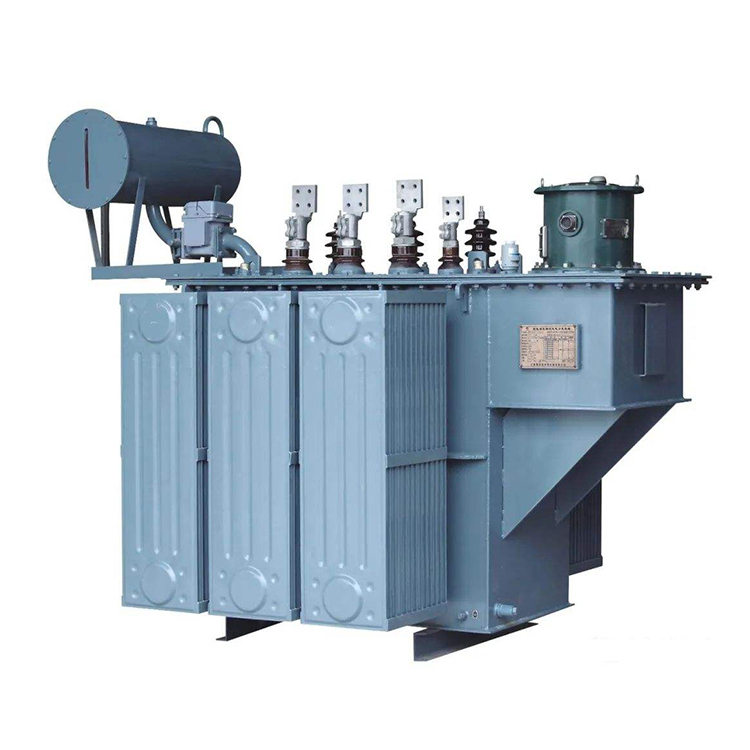

A "33 415 kV 1250kVA distribution transformer" is typically used to step down high-voltage electricity from the primary distribution network (33kV) to a lower voltage level suitable for end-users, such as industrial facilities, commercial buildings, or residential areas. The 1250kVA capacity makes it suitable for powering a medium-sized distribution network or a specific area with moderate power demands. A 33 415 kV 1250kVA distribution transformer plays a crucial role in electricity distribution by reducing voltage to a level that can be safely and effectively used by consumers.
The specific design and features of such a 33 415 kV 1250kVA distribution transformer can vary based on factors like the manufacturer, regional electrical standards, and intended application. It's essential to ensure that the transformer meets safety and efficiency requirements while effectively providing power to the load it serves.
Rated Capacity: | 1250 kVA; |
Mode: | S11-M-1250/33/0.415 or depends; |
Primary Voltage: | 33kV; |
Secondary Voltage: | 0.415; |
No Loading Loss: | 1400 ±10% W; |
Loading Loss: | 13225 ±10% W; |
No loading Current: | ≤0.9%; |
Temperature Rise(oil top/winding average): | 60K/65K; 50K/55K; |
Power Frequency withstand Voltage: 8 | 5kV; |
Lighting Impulse withstand Voltage: | 200kV. |
![]()
Oil Filled
|
![]()
Oil Emptied
|
![]()
Amorphous Alloy
|
![]()
Rolled Iron Core
|
Winding Workshop |
Coil Drying Area |
Oil Filling Area |
Finished Product Area |
Transformer Oven |
Casting Equipment |
Foil winding machine |
Wooden Box |
Steel Structure |
