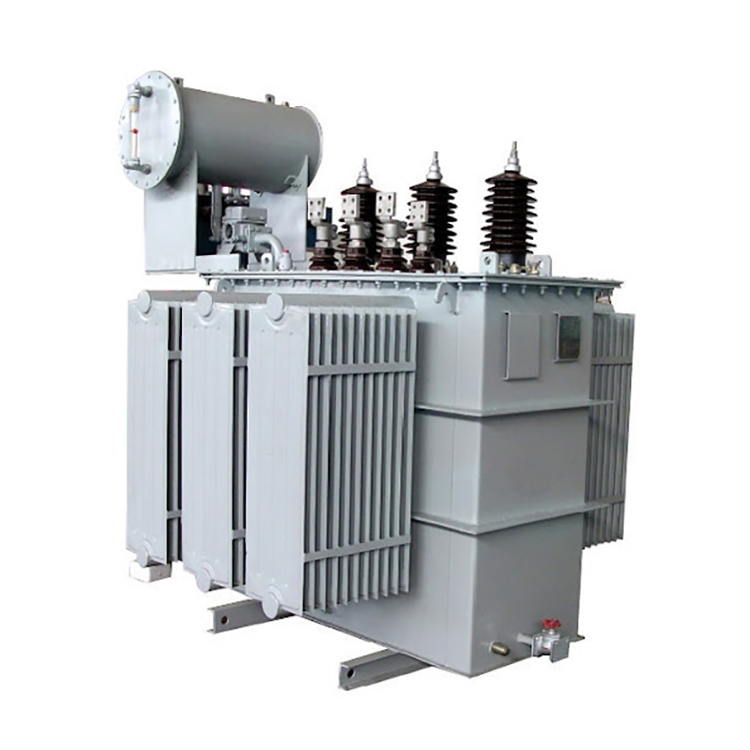

1.The 33 0.4 kv 2000 kva distribution transformer manufactured by Conso electrical can integrate with air insulation switchgear or gas insulation switchgear system.
2.It is carefully designed and manufactured by Conso electrical to provide reliable power distribution, reducing failure rates and maintenance costs.
3.Conso electrical uses high-quality insulation materials on each 33 0.4 kv 2000 kva distribution transformer to ensure electrical performance and safety.
4.Conso electrical equips an external protective enclosure to each 33 0.4 kv 2000 kva distribution transformer to shield from environmental factors.
5.each 33 0.4 kv 2000 kva distribution transformer features an effective grounding system to ensure electrical safety and fault protection.
Rated Capacity: | 2000 kVA or 2.0 mva; |
Mode: | S11-M-2000 or adhere to requirements; |
Primary Voltage: | 33kV; |
Secondary Voltage: | 400V; |
No Loading Loss: | 2100 ±10% W; |
Loading Loss: | 17100 ±10% W; |
Basic Insulation Level: | 200kV/85kV(LI/AC); |
Impedance: | 6.5% ± 10%; |
Working temperature: | -40℃to 40℃; |
Winding Material: | 100% Copper or 100% Aluminum |
![]()
Oil Filled
|
![]()
Oil Emptied
|
![]()
Amorphous Alloy
|
![]()
Rolled Iron Core
|
Winding Workshop |
Coil Drying Area |
Oil Filling Area |
Finished Product Area |
Transformer Oven |
Casting Equipment |
Foil winding machine |
Wooden Box |
Steel Structure |
