2500 Kva Liquid Immersed Distribution Transformer

Conso Electrical Science and Technology Co., Ltd has decade years experience to manufacture 2500 kVA Liquid Immersed Distribution Transformer. The company strict to execute the requirement of ISO9001 quality management system. It takes the product quality in the first place. Since the year of established, Conso Electrical has offered 10kv to 35kv electrical transformers and electrical panels in the case of public waterworks, chemical plants, hydroelectric power plant, and rail transit. We believe the reliable quality could saving costs from after-sales. We anticipate working together with clients across the globe.

Send Inquiry

Product Description

Video

2500 Kva Liquid Immersed Distribution Transformer Introduction

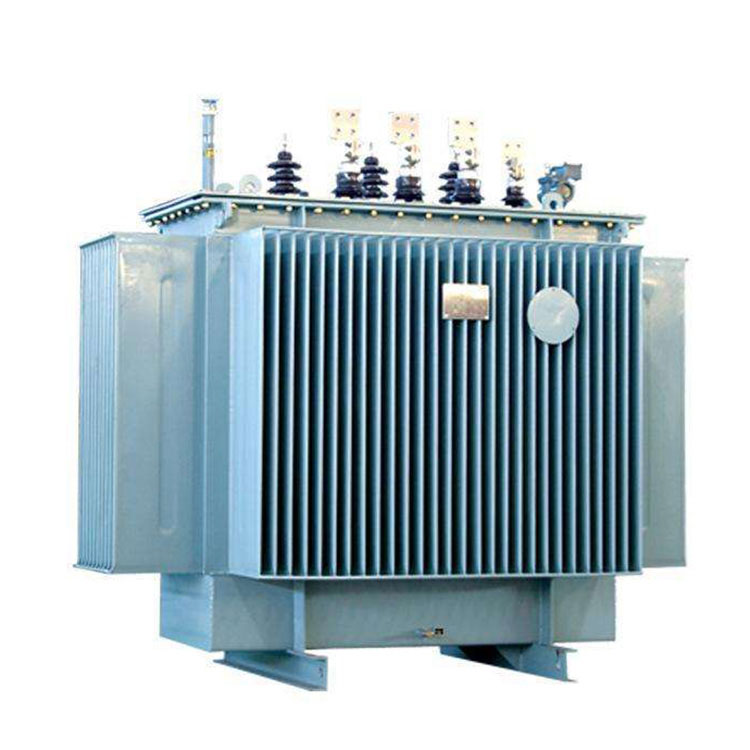

Oil Immersed Distribution Transformer	Amporphous Alloy Oil Filed Distribution Tansformer	Single Phase ONAN Distrinution Tansformer	33/0.4V ONAN Power Tansformer

Cast Resin Dry Type Distribution Transformer	Non Encapsulated Dry Type Distribution Tansformer	Amorphous Alloy Dry Type Distribution Tansformer	33/10kV ONAN Power Distribution Tansformer

Our 2500 kVA Liquid Immersed Distribution Transformers represent a pinnacle of power distribution technology, designed to efficiently and reliably manage electrical energy flow in various industrial and commercial settings. With a commitment to quality, safety, and performance, these transformers are engineered to meet the highest industry standards and exceed your expectations.

Specification:

Rated Capacity:	2500 kva;
Mode:	S11-M-2500 or depends;
No loading loss:	2500 W ± 10% or depends;
loading loss:	23200 W ± 10% or depends;
Impedance:	4.5% ± 10% ;
Insulation Material:	25#, 45# Mineral Oil;
Rated Frequency:	50 or 60Hz;
Winding Material:	100% Copper;
Vector Group:	Dyn11; Yyn0 or depends;
Temperature Rise:	55K/65K or depends.

CONSO·CN 2500 kVA Liquid Immersed Distribution Transformer Detail:

Oil Filled

Oil Emptied

Amorphous Alloy

Rolled Iron Core

CONSO·CN 2500 kVA Liquid Immersed Distribution Transformer Workshop:

Winding Workshop

Coil Drying Area

Oil Filling Area

Finished Product Area

2500 kVA Liquid Immersed Distribution Transformer Testing Center:

2500 kVA Liquid Immersed Distribution Transformer Producing Equipment:

Transformer Oven

Casting Equipment

Foil winding machine

Conso Electrical Science and Technology Co., Ltd owns three sets of transformer oven and two sets of transformer casting equipment. It allow to produce more than 200 pieces of 200kva 3 Phase ONAN Distribution Transformer and 100 pieces 630kva three phase cast resin distribution transformer. The foil winding machine not only use on producing dry type transformers, but also allows us to produce 3 Phase ONAN Distribution Transformer, that is beyond the IEC 60076 range. Like a 10kv 4000kva oil immersed distribution transformer.

CONSO·CN 2500 kVA Liquid Immersed Distribution Transformer Ready to Ship:

Package method：

Wooden Box

Steel Structure

2500 kVA Liquid Immersed Distribution Transformer FAQ:

What is the turnaround time for a 2500 kVA Liquid Immersed Distribution Transformer?

A: it depends on the order size. If you need one piece 2500 kVA Liquid Immersed Distribution Transformer, it needs 2 weeks or 3 weeks. However, the bath production can be made that about 30 pieces can be finished in 30 days.

Would you accept the OEM or ODM order to a 2500 kVA Liquid Immersed Distribution Transformer?

A: Conso Electrical Lovely customize a 2500 kVA Liquid Immersed Distribution Transformer, we will check the technical specification ans the requirements before order placed.

What is the minimum purchase requirement for 2500 kVA Liquid Immersed Distribution Transformers?

A: we do not have the MOQ limited on producing 2500 kVA Liquid Immersed Distribution Transformers.

Do you offer technical documentation for 2500 kVA Liquid Immersed Distribution Transformer?

A: yes, we will provide technical files in different time. The specification sheet will provide with the contract as a technical agreement. After the product designed, dimension drawings could send to clients. A test report will come with the transformer when passed a series of test.

How much does a 2500 kVA Liquid Immersed Distribution Transformer typically cost?

A: the manufacturing budget is fluctuating by material costs such as copper and CRGO steel. However, our engineer will pick the most economical solutions.
