11 0.4 Kv 100 1000 Kva Container Substation

Conso Electrical Science and Technology Co., Ltd is a professional manufacture to produce 11 0.4 kv 100 1000 kva container substation. Conso Electrical could produce the main components of a 11 0.4 kv 100 1000 kva container substation such as 11kV Vacuum Circuit Breaker, distribution transformer, and gas insulation switchgear. Meanwhile, Conso Electrical will purchase the components as the requirement of Clients, such as air circuit breaker, moulded case circuit breaker, and capacity bank. To provide a better user experience, Conso Electrical has a well-developed quality control system on incoming material and finished product. We sincerely to invite our friends to visit Conso Electrical for business cooperation.

Send Inquiry

Product Description

Video

11 0.4 kv 100 1000 kva container substation Introduction：

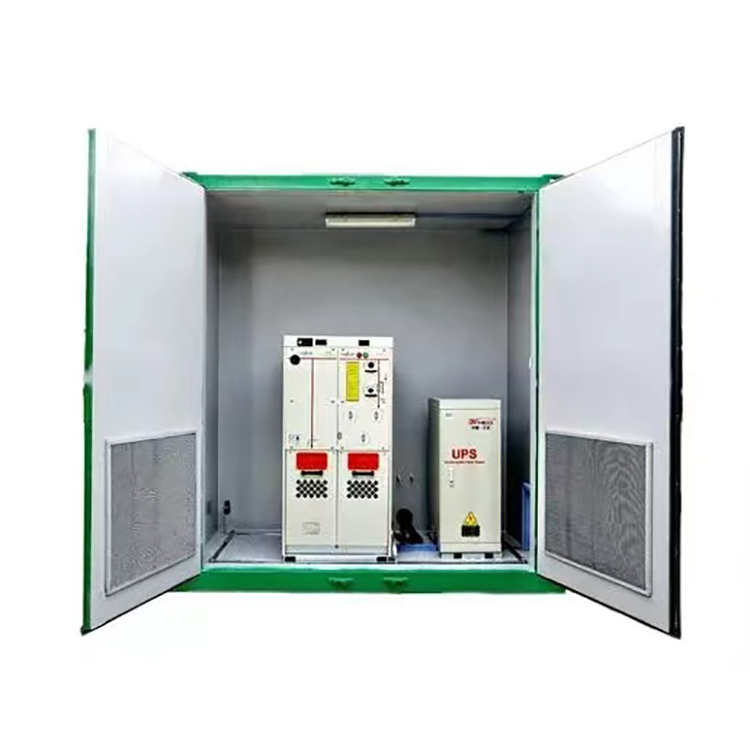

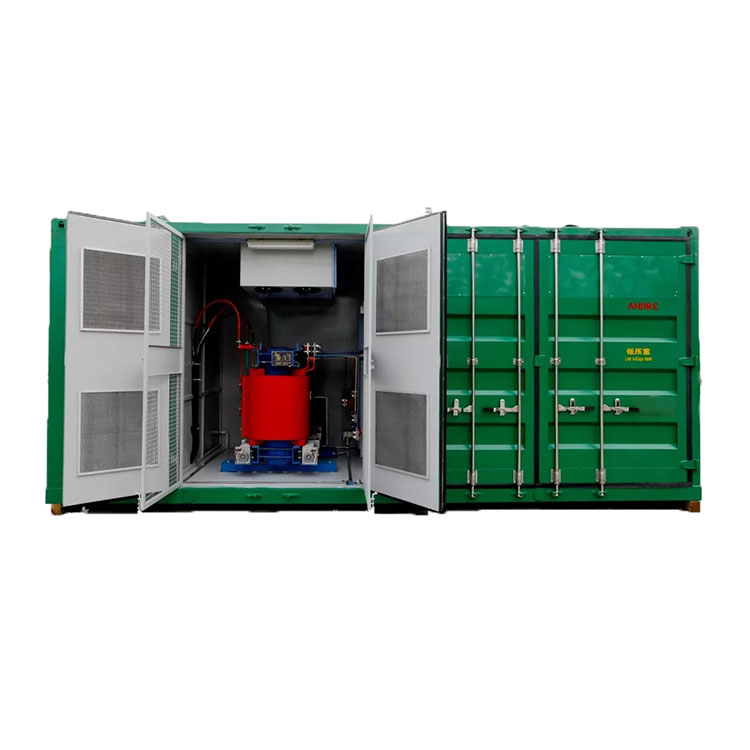

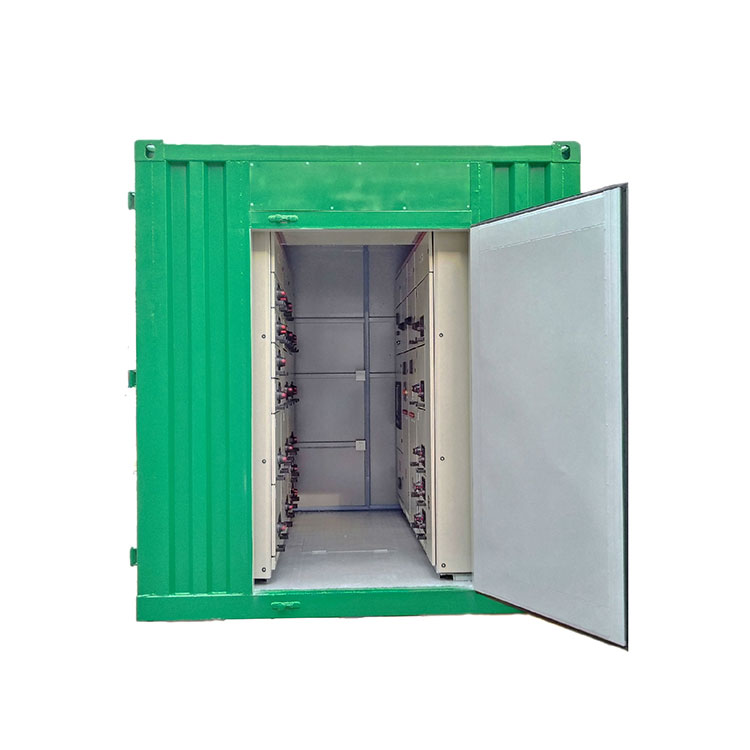

A 11 0.4 kv 100 1000 kva container substation is a compact complete distribution unit that combines high-voltage electrical equipment, transformers, low-voltage electrical equipment, and other components. This 11 0.4 kv 100 1000 kva container substation not only serves the functions of a typical box type substation but also offers mobility. It finds widespread applications in settings where frequent relocation of electrical equipment is required, such as coal mines, copper mines, road construction sites, and other locations. It meets the demands for receiving and distributing electrical energy in a distribution system.

11 0.4 kv 100 1000 kva container substations are characterized by their strong integration, compact size, secure and reliable operation, ease of maintenance, and portability. Compared to conventional brick-and-mortar substations of the same capacity, prefabricated substations typically occupy only 1/10 to 1/5 of the footprint, significantly reducing design and construction efforts and lowering overall construction costs.

In distribution systems, they can be used in ring distribution systems, dual-power supply systems, or radial terminal distribution systems. Prefabricated substations represent a new and comprehensive solution for the construction and modernization of urban and rural substations.

11 0.4 kv 100 1000 kva container substation Technical Parameter：

Panel Type:	11kV SF6 RMU, KYN28-12, HXGN12;0.4kV GGD,GCK,GCS,MNS;
Transformer Capacity:	50 kVA to 1600 kVA ;
Primary Max. Working Voltage:	12 kV;
Secondary Max. Working Voltage:	0.4 kV;
Power Frequency withstand Voltage:	48kV for main circuit;
Lighting Impulse withstand Voltage:	85kV for isolation gap;
Rated Current on Primary Side:	400A/630A/1250A;
Rated Current on Secondary Side:	100A to 2000A;
Noise Level:	55db (oil immersed), 65db (dry type).
