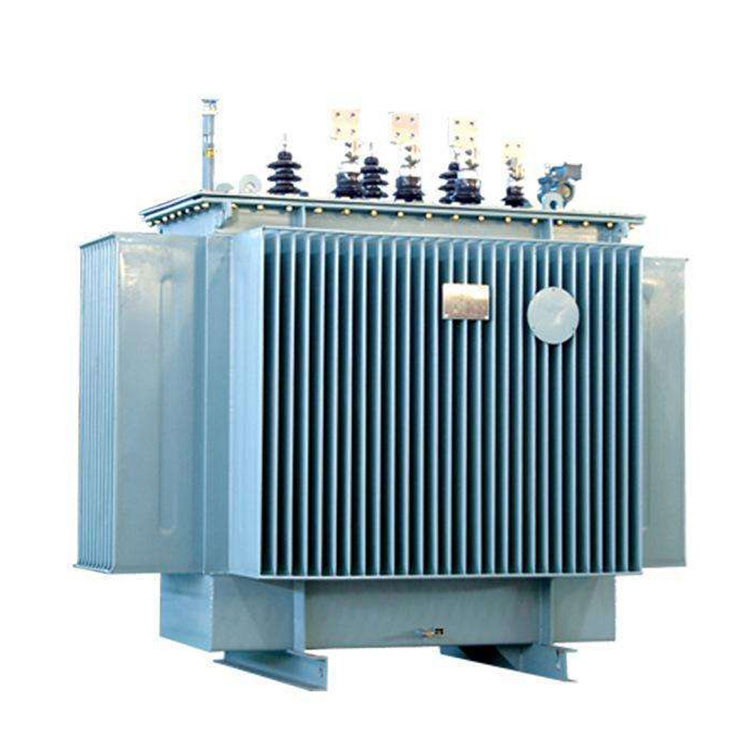

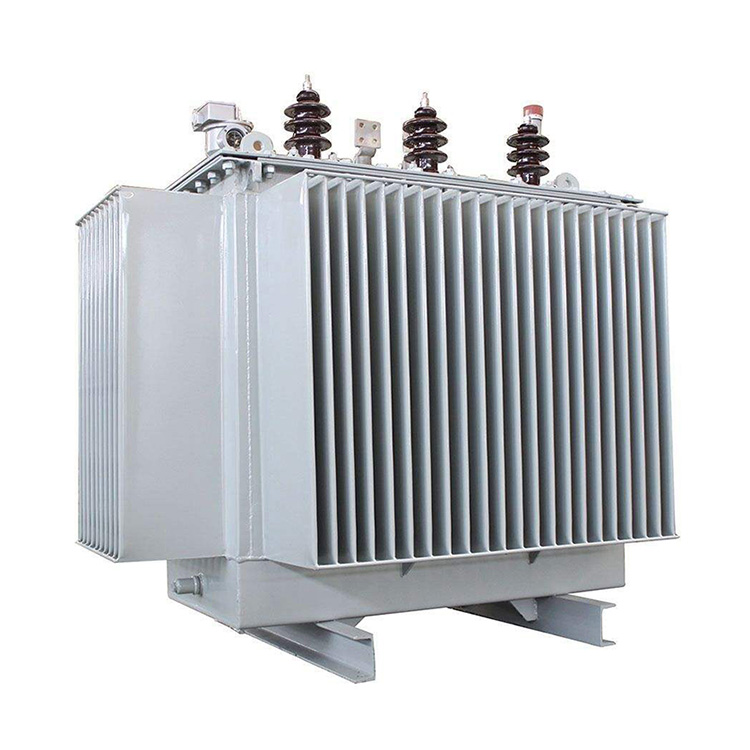

10kV Electrical Distribution Transformer 1500 kVA

Since 2006, Conso Electrical Science and Technology Co., Ltd. has adopted the designing technology and management procedure to create a 10kV Electrical Distribution Transformer 1500 kVA more cost effective and quality reliable. To Boost the production of distribution transformers, the company trains and nurtures production workers each year, which aim to integrate standard production guidelines of producing distribution transformers with their knowledge. Because of this, Conso electrical has the opportunity to work with nation power grid corporation and provide OEM service to large scale enterprise. We sincerely to build a long term partnership with you.

Send Inquiry

Product Description

Video

The 10kV Electrical Distribution Transformer 1500 kVA Key advantages:

1.Enhanced Grid Stability:

A 10kV Electrical Distribution Transformer system can enhance grid stability and reduce the failure rate of the power system. With its higher voltage level, it can transmit more electrical energy, thus reducing the number of transmission lines, lowering line impedance, and improving energy transmission efficiency. Additionally, the equipment used in 10kV electrical systems, such as high-voltage lines and distribution transformers, possesses high interference resistance, effectively countering external disruptions and enhancing grid stability and reliability.

2.Improved Power Quality:

A 10kV Electrical Distribution Transformer system can improve power quality, ensuring the safety and stability of electricity for consumers. The high-voltage lines and distribution transformers in a 10kV electrical system have high power quality standards, effectively controlling power loads and voltage fluctuations, preventing system overloads and short circuits, and thereby ensuring the safety and stability of electricity for consumers.

3.Reduced Transmission Losses:

A 10kV Electrical Distribution Transformer system can reduce transmission losses, enhancing the economic efficiency of the grid. The high-voltage lines and distribution transformers in a 10kV electrical system have high energy transmission efficiency, effectively reducing line impedance and resistive losses, thus decreasing transmission losses and improving the economic efficiency of the grid.

4.Adaptation to Varied Regional Power Demands:

A 10kV Electrical Distribution Transformer system can adapt to the diverse power demands of different regions, catering to the electricity needs of urban and rural areas. Through substations, high-voltage lines, distribution transformers, and other equipment, a 10kV electrical system can transmit electrical energy to the regions where consumers are located, providing them with safe and stable electricity services.

The 10kV Electrical Distribution Transformer 1500 kVA Technical Data:

Rated Capacity:	1500kVA;
Mode:	S11-M-1500/10 or depends;
Primary Voltage:	10kV;
Secondary Voltage:	0.433kV or depends
No Loading Loss:	1640±10% W;
Loading Loss:	14500±10% W;
Phase Number:	Three phase;
Cooling Method:	ONAN or AN/AF;
Basic Insulation Level:	35kV/75kV(LI/AC);
Impedance:	4.5%±10%;
Temperature Rise:	60K/65K or as requirements;
