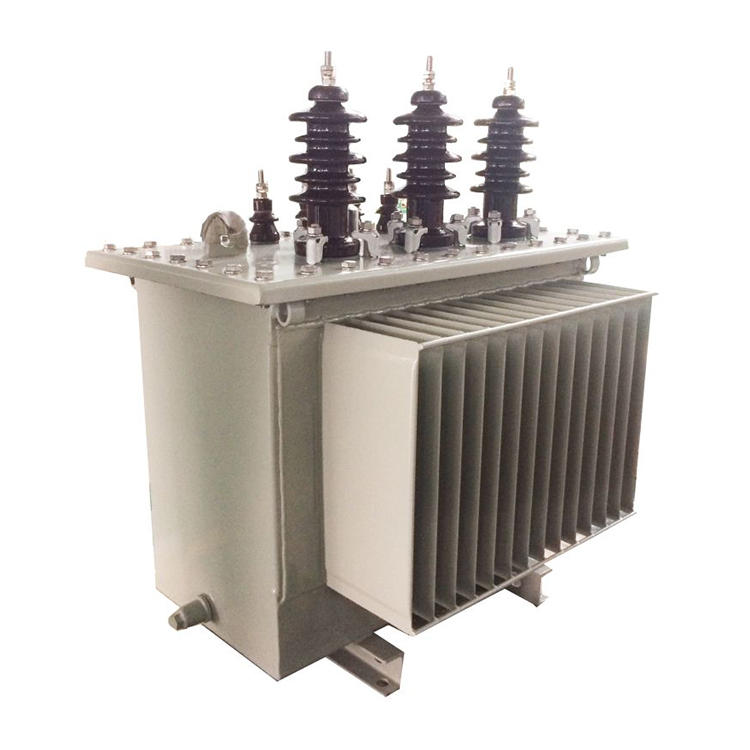

10kV 50KVA 3 phase distribution transformer
  • 10kV 50KVA 3 phase distribution transformer10kV 50KVA 3 phase distribution transformer
  • 10kV 50KVA 3 phase distribution transformer10kV 50KVA 3 phase distribution transformer
  • 10kV 50KVA 3 phase distribution transformer10kV 50KVA 3 phase distribution transformer

10kV 50KVA 3 phase distribution transformer

Since the year of established, Conso Electrical Science and Technology Co., Ltd has accumulated extensive experience in the production of the 10kV 50KVA 3 phase distribution transformer. It is one of the earliest manufacturing enterprise to assemble 10kv to 35kv compact substation transformer and distribution transformer in Yueqing area. To produce the 10kV 50KVA 3 phase distribution transformer, Conso Electrical emphasis on balancing the quality and costs. We are keen on partnering with marketing mavens from different parts of the world.

Send Inquiry

Product Description

Video



10kV 50KVA 3 phase distribution transformer Introduction:


10kV 50KVA 3 phase distribution transformers are primarily used in the power transmission and distribution networks. They are commonly found in urban substations, industrial facilities' distribution rooms, and rural electrical grids, among other locations. Its function is to transmit electricity to users with different voltage requirements, meeting various power consumption needs. Common applications of 10kV 50KVA 3 phase distribution transformers include substation transformers, distribution room transformers, and power plant transformers.


10kV 50KVA 3 phase distribution transformer Technical Specification:


Rated Capacity:  50 kVA;
No Loading Loss:  130 ± 10% W or depends;
Loading Loss:  870/910 ± 10% W or depends;
Power Frequency withstand Voltage: ; 35kV
Lighting Impulse withstand Voltage:  75kV;
Rated Frequency:  50 or 60Hz;
Insulation Material:  25# 45# Mineral Oil;
Rated Frequency:  50 or 60Hz;
Temperature Rise:  55K/65K or depends;
Impedance:  4.0 ± 10%;


CONSO·CN 10kV 50KVA 3 phase distribution transformer Detail:


Oil Filled
Oil Emptied
Amorphous Alloy
Rolled Iron Core


The 10kV 50KVA 3 phase distribution transformer Features and Advantages:


High Voltage Rating: 10kV 50KVA 3 phase distribution transformers can withstand high voltages, making them suitable for transmitting high-power electrical energy over long distances.

High Efficiency and Energy Savings: 10kV 50KVA 3 phase distribution transformers use silicon steel cores and insulation materials that have high energy efficiency.

Reliability and Stability: The insulation materials and winding design of 10kV 50KVA 3 phase distribution transformers provide excellent electrical performance and short-circuit resistance, allowing them to operate reliably for extended periods in harsh environments.

Easy Maintenance: The design of the oil tank and winding structure of 10kV 50KVA 3 phase distribution transformers makes them easy to maintain and service, thus prolonging their lifespan.


CONSO·CN 10kV 50KVA 3 phase distribution transformer Workshop:


Winding Workshop

Coil Drying Area

Oil Filling Area

Finished Product Area


10kV 50KVA 3 phase distribution transformer Testing Center:



10kV 50KVA 3 phase distribution transformer Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine


CONSO·CN 10kV 50KVA 3 phase distribution transformer Ready to Ship:



Package method:


Wooden Box

Steel Structure


The 10kV 50KVA 3 phase distribution transformer Maintenance and Care:


Maintenance and care of a 10kV 50KVA 3 phase distribution transformer are essential for its proper operation and extended lifespan. Common maintenance measures include:

Regularly checking the quality and oil level of the insulating oil to ensure its quality and an adequate level.

Periodically inspecting the insulation resistance and insulation voltage of the windings to ensure their normal operation.

Regularly cleaning the oil tank and insulating oil to remove dirt and impurities.

Periodically examining the grounding wires and connection bolts of the transformer to ensure proper grounding and reliable connections.
