How Can a 500 Kva Compact Transformer Substation Improve Power Distribution Efficiency and Reliability

The demand for safe, efficient, and space-saving power distribution solutions is continuously increasing in industrial facilities, commercial buildings, renewable energy projects, and urban infrastructure. As a professional transformer manufacturer, Conso provides reliable 500 Kva Compact Transformer Substation solutions designed to integrate transformers, high-voltage switchgear, low-voltage distribution systems, and protection components into a compact and intelligent power unit. This article explains the structure, advantages, applications, technical features, and selection considerations of 500 Kva compact transformer substations to help users understand how this equipment supports modern electrical distribution systems.

Table of Contents

• What Is a 500 Kva Compact Transformer Substation?
• Main Structure and Components of a 500 Kva Compact Transformer Substation
• Why Choose a 500 Kva Compact Transformer Substation?
• Key Technical Specifications and Performance Features
• Common Applications of 500 Kva Compact Transformer Substations
• How to Select the Right 500 Kva Compact Transformer Substation?
• Frequently Asked Questions About 500 Kva Compact Transformer Substations

What Is a 500 Kva Compact Transformer Substation?

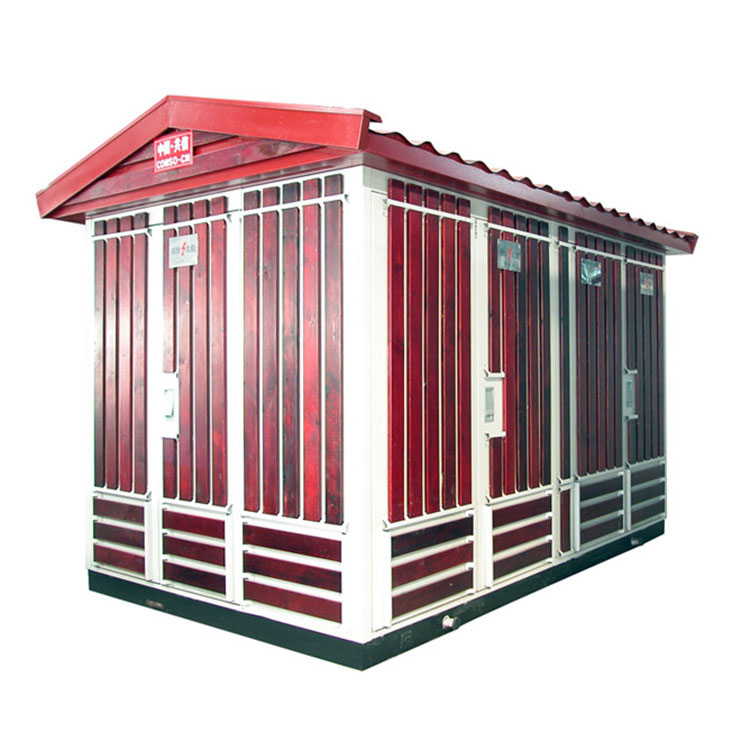

A 500 Kva Compact Transformer Substation is a prefabricated electrical distribution unit that combines a transformer, high-voltage switchgear, low-voltage switchgear, and related protection devices into one integrated enclosure. Compared with traditional substations built separately on-site, compact transformer substations offer a more flexible installation method, reduced construction time, and better environmental adaptability.

The 500 kVA capacity makes this type of substation suitable for medium-scale power distribution requirements. It can efficiently convert medium-voltage electricity, such as 10kV or 20kV incoming power, into low-voltage electricity commonly used by factories, commercial facilities, residential communities, and infrastructure projects.

With a modular design concept, compact substations simplify transportation, installation, operation, and maintenance. They are widely used where space availability, power quality, and operational safety are important factors.

Main Structure and Components of a 500 Kva Compact Transformer Substation

A high-quality compact transformer substation consists of multiple electrical sections working together to ensure stable power conversion and distribution. The main components usually include:

• High Voltage Switchgear: Responsible for incoming power control, isolation, and protection against electrical faults.
• Distribution Transformer: Converts medium voltage electricity into usable low voltage power according to project requirements.
• Low Voltage Switchgear: Distributes electricity to different loads while providing overload and short-circuit protection.
• Protection and Control System: Includes monitoring devices, relay protection, temperature detection, and safety control functions.
• Compact Enclosure: Provides mechanical protection and improves resistance against dust, moisture, and environmental conditions.

The integrated design reduces the distance between electrical components, improving transmission efficiency while minimizing installation complexity. Depending on application requirements, users can choose different transformer types, enclosure materials, and protection levels.

Why Choose a 500 Kva Compact Transformer Substation?

The popularity of 500 Kva compact transformer substations comes from their combination of efficiency, safety, and economic benefits. Compared with conventional substations, they provide several advantages:

The compact design also improves system reliability because electrical connections between different sections are optimized during factory manufacturing. This reduces wiring errors and improves overall operational stability.

Key Technical Specifications and Performance Features

The performance of a 500 Kva compact transformer substation depends on transformer design, electrical configuration, protection system, and manufacturing quality. Typical technical parameters include:

Modern compact transformer substations are also designed with improved safety features, including:

• High-quality insulation materials for electrical safety.
• Reliable grounding systems to prevent electrical hazards.
• Advanced protection devices for overload and short-circuit conditions.
• Optimized ventilation systems for stable transformer operation.
• Weather-resistant housing suitable for outdoor installation.

Common Applications of 500 Kva Compact Transformer Substations

Due to their compact structure and reliable performance, 500 Kva Compact Transformer Substations are widely applied in different industries and infrastructure projects. Their flexible configuration allows them to meet various medium-voltage power distribution requirements.

Typical application areas include:

• Industrial Manufacturing Facilities: Factories with production lines, machinery systems, and automation equipment require stable power supplies. A 500 kVA compact substation can provide reliable electricity conversion and distribution for industrial loads.
• Commercial Buildings: Shopping centers, office buildings, hotels, and business complexes use compact substations to ensure continuous power distribution while saving valuable installation space.
• Residential Communities: Compact transformer substations are commonly used in urban residential areas because they occupy less space and can be integrated into modern community planning.
• Renewable Energy Projects: Solar farms and wind power facilities often require compact substations to collect and distribute generated electricity efficiently.
• Infrastructure Projects: Airports, railway systems, ports, and public facilities benefit from compact transformer solutions for dependable electrical supply.

Compared with traditional substations, compact transformer substations are especially suitable for projects where installation speed, environmental protection, and limited space are important considerations.

How to Select the Right 500 Kva Compact Transformer Substation?

Choosing the correct 500 Kva Compact Transformer Substation requires a comprehensive evaluation of electrical requirements, installation environment, and future expansion plans. The following factors should be considered before purchasing:

1. Confirm the Electrical Capacity Requirements

Although the rated capacity is 500 kVA, users should analyze actual load conditions, including peak power demand, motor starting currents, and future electricity growth. Proper capacity selection helps avoid overload operation and improves equipment service life.

2. Select Suitable Transformer Type

Different projects may require different transformer structures:

• Oil-immersed Transformer: Suitable for outdoor applications requiring high efficiency, strong overload capability, and cost-effective operation.
• Dry Type Transformer: Preferred for indoor environments, buildings, and locations requiring higher fire safety performance.

3. Consider Environmental Conditions

Installation environments influence substation design. Factors such as temperature, humidity, dust, altitude, and outdoor exposure should be considered. Customized protection levels and enclosure designs can improve reliability in harsh conditions.

4. Evaluate Manufacturer Capability

A reliable manufacturer should provide professional engineering support, strict quality control, testing procedures, and customized solutions. Manufacturers with advanced production facilities can ensure that each compact substation meets international electrical standards and project requirements.

Manufacturing Quality and Reliability of Conso Compact Transformer Solutions

As an experienced transformer manufacturer, Conso focuses on producing reliable power distribution equipment with advanced manufacturing processes and strict quality inspection systems. Every compact transformer substation is designed according to customer requirements and tested before delivery.

Key quality advantages include:

• Professional Engineering Design: Electrical engineers optimize system configuration according to voltage level, load characteristics, and installation environment.
• High-Quality Components: Reliable transformers, switchgear components, and protection devices are selected to ensure long-term operation.
• Factory Testing: Each unit undergoes electrical performance inspection, insulation testing, and operational verification before shipment.
• Customized Solutions: Different enclosure structures, transformer specifications, and control systems can be designed according to project needs.

Through professional manufacturing and quality management, Conso helps customers achieve safer, more efficient, and more stable power distribution systems.

Maintenance Tips for Long-Term Operation

Proper maintenance can significantly extend the service life of a 500 Kva Compact Transformer Substation and maintain stable performance. Recommended maintenance practices include:

Regular inspection not only improves operational safety but also helps identify potential problems before they cause unexpected downtime.

Frequently Asked Questions About 500 Kva Compact Transformer Substations

Q1: What is the main function of a 500 Kva Compact Transformer Substation?

A 500 Kva Compact Transformer Substation converts medium-voltage electricity into low-voltage power and distributes it safely to electrical loads. It integrates transformers, switchgear, and protection systems into a compact unit.

Q2: Where can a 500 Kva Compact Transformer Substation be installed?

It can be installed in industrial plants, commercial buildings, residential areas, renewable energy projects, and infrastructure facilities. Both indoor and outdoor installation options are available depending on design requirements.

Q3: What are the advantages of a compact transformer substation compared with a traditional substation?

The main advantages include smaller installation space, faster installation, lower construction costs, simplified maintenance, and improved system integration.

Q4: How long is the service life of a 500 Kva Compact Transformer Substation?

With proper installation, regular maintenance, and high-quality components, a compact transformer substation can typically provide decades of reliable operation.

Q5: Can Conso customize a 500 Kva Compact Transformer Substation?

Yes. Conso can provide customized solutions based on voltage level, transformer type, enclosure requirements, protection configuration, and specific application conditions.

Conclusion

A 500 Kva Compact Transformer Substation is an efficient and reliable solution for modern electrical distribution systems. Its integrated structure, space-saving design, flexible configuration, and strong safety performance make it suitable for a wide range of industrial, commercial, and infrastructure applications. By selecting a professional manufacturer like Conso, customers can obtain dependable transformer solutions designed for long-term operational stability. If you need a customized compact transformer substation solution or want to learn more about product specifications, please contact us for professional technical support and a suitable power distribution solution.
