Leveraging our expertise as a seasoned manufacturer in the field of electrical power, we are dedicated to delivering excellence with our high-quality H Pole Mounted Transformer Substation. Your trust in our professionalism is a testament to our commitment to providing top-tier products tailored for the power industry. Beyond the purchase, anticipate a superior after-sale service that reflects our devotion to customer satisfaction. Punctuality is our priority, ensuring your order is not only met with precision but also delivered promptly, aligning seamlessly with the dynamic needs of the power sector. Partner with us for an unparalleled experience in the realm of electrical solutions.

Video

h Pole Mounted Transformer Substations Introduction:

1.Purpose:

CONSO·CN high quality h Pole Mounted Transformer Substations serve the primary purpose of voltage transformation and distribution of electrical power. They take electricity from higher voltage levels (typically medium voltage) and reduce it to a lower voltage level (usually low voltage) suitable for local distribution.

2.Components:

h Pole Mounted Transformer Substations typically consist of the following key components:

a)Transformer: The core component that steps down the voltage.

B)Switchgear: Used for switching and protection functions.

C)Lightning arresters: Protect against lightning-induced surges.

D)Fuses and circuit breakers: For overcurrent protection.

E)Voltage regulators (optional): Used to maintain a steady output voltage.

3.Benefits:

(1)Cost-Effective: Pole-mounted substations are often more cost-effective to install and maintain compared to larger, ground-level substations.

(2)Space-Saving: They take up minimal ground space, making them suitable for areas with limited space availability.

(3)Easy Access: Their elevated position on utility poles allows for easy access for maintenance and repair.

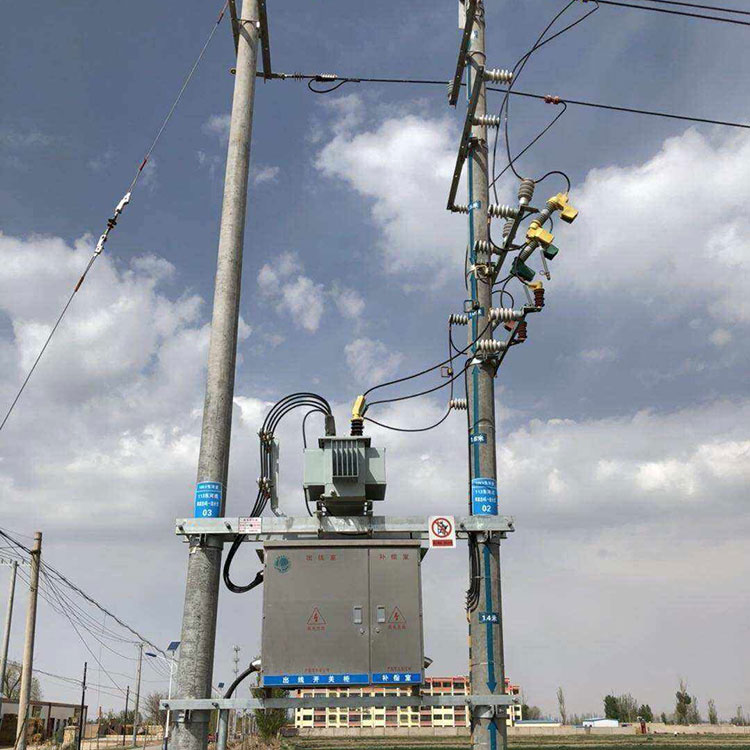

CONSO·CN h Pole Mounted Transformer Substation Detail:

Front Mounted

Side Mounted

Single Phase Transformer

Single Pole Mounted

CONSO·CN h Pole Mounted Transformer Substation Workshop:

Winding Workshop

Coil Drying Area

Assembling Area

Oil Filling Area

h Pole Mounted Transformer Substation Testing Center：

h Pole Mounted Transformer Substation Producing Equipment:

Transformer Oven

Casting Equipment

Foil winding machine

CONSO·CN h Pole Mounted Transformer Substation Accessory in Package:

Accessory For Side Mounted

Accessory For Front Mounted

Package method：

Wooden Box

Steel Structure
