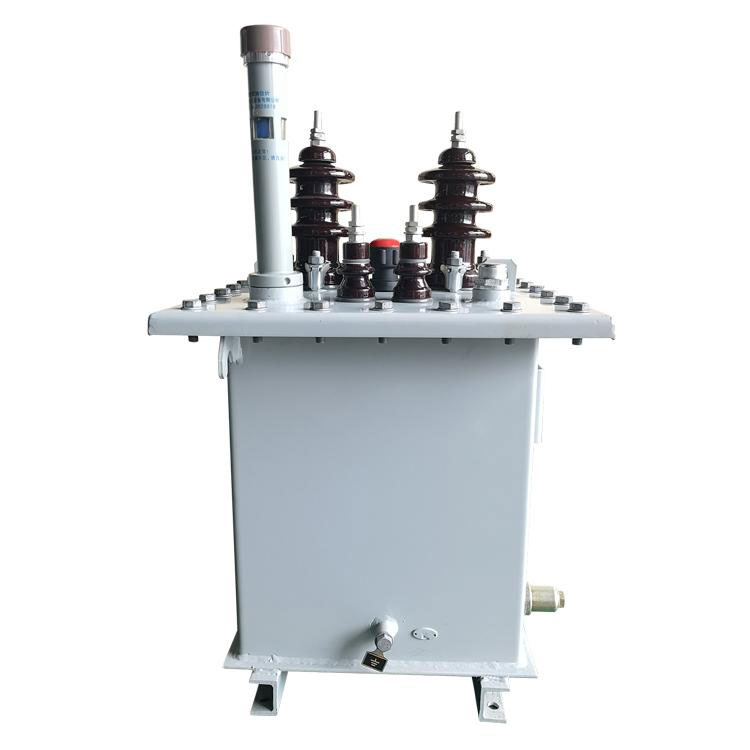

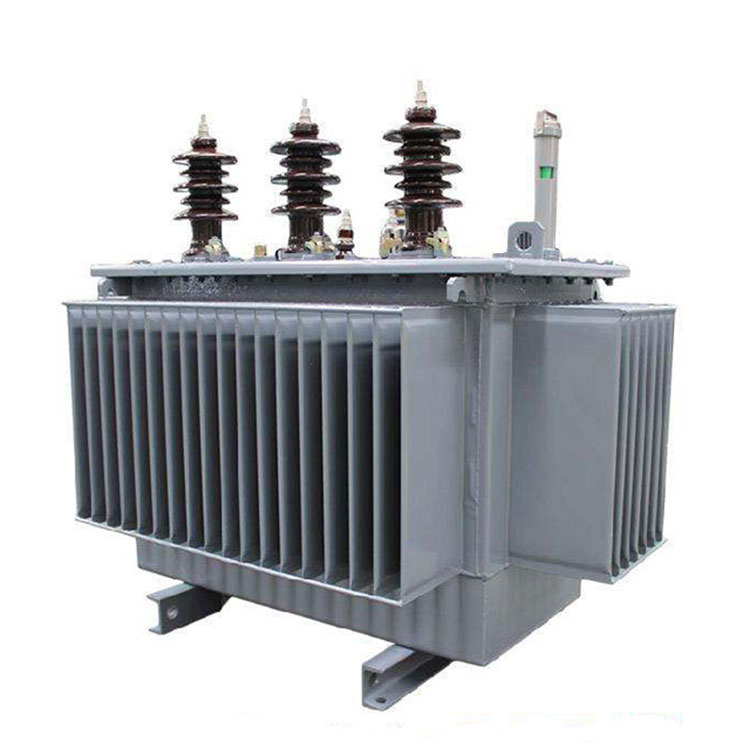

25 Kva Pole Mounted Distribution Transformer
  • 25 Kva Pole Mounted Distribution Transformer25 Kva Pole Mounted Distribution Transformer
  • 25 Kva Pole Mounted Distribution Transformer25 Kva Pole Mounted Distribution Transformer

25 Kva Pole Mounted Distribution Transformer

Conso Electrical Science and Technology Co., Ltd., a mid-size manufacturing firm specializing in producing pole-mounted transformers, has established an efficient management system for batch production and quality control since 2006, including the precision-engineered 25 Kva Pole Mounted Distribution Transformer. Over the decades, Conso Electrical has fostered strong relationships with suppliers, enabling a deep understanding of production and delivery times to enhance the timely manufacturing of pad-mounted transformers. Each pad-mounted transformer shipped overseas undergoes rigorous testing for time and frequency precision. We invite you to visit our factory for potential business cooperation, exploring our advanced facilities and product offerings, including the 25 Kva Pole Mounted Distribution Transformer.

Send Inquiry

Product Description

Video



25 kva pole mounted distribution transformers introduction:


"Pole mounted" is a framework for installing transformers on poles, which can be divided into single-pole and double-pole types.

For distribution transformers with a capacity of 30KVA or less (including 30KVA), a single-pole transformer mount is generally used. The distribution transformer, high-voltage dropout fuse, and high-voltage surge arrester are mounted on a single concrete pole, with the pole inclined 13°-15° in the opposite direction to the assembled distribution transformer.

For distribution transformers with a capacity of 50KVA to 315KVA, a double-pole transformer mount is typically used. The distribution transformer mount consists of one main pole concrete pole and another auxiliary pole. The main pole is equipped with a high-voltage dropout fuse and a high-voltage downlead, while the auxiliary pole has secondary leads. The double-pole transformer mount is more robust compared to the single-pole version.

Advantages of pole mounted installation: It requires less space, doesn't need surrounding walls or barriers, the live parts are at a greater height from the ground, making accidents less likely.


25 kva pole mounted distribution transformers Parameter:


Rated Capacity:  25 kVA;
Mode:  D-M-25 or S-M-25; or depends;
Primary Voltage:  10kV,11kV,13.8kV,15kV; 33kv (for single phase);
Secondary voltage:  200V, 220V, 380, 400V, 415V, 433V;
No Loading Loss:  depends;
Loading Loss:  depends;
Temperature Rise:  60K/65K; 45K/50K; or depends;
Phase Number:  Single Phase or Three Phase;
Altitude:  less than 1000 m above the sea level;
Insulation Material:  25# 45# Mineral Oil.


CONSO·CN 25 kva pole mounted distribution transformer Detail:


Front Mounted
Side Mounted
Single Phase Transformer
Single Pole Mounted


CONSO·CN 25 kva pole mounted distribution transformer Workshop:


Winding Workshop

Coil Drying Area

Oil Filling Area

Finished Product Area


25 kva pole mounted distribution transformer Testing Center:



25 kva pole mounted distribution transformer Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine


CONSO·CN 25 kva pole mounted distribution transformer Ready to Ship:



Package method:


Wooden Box

Steel Structure
