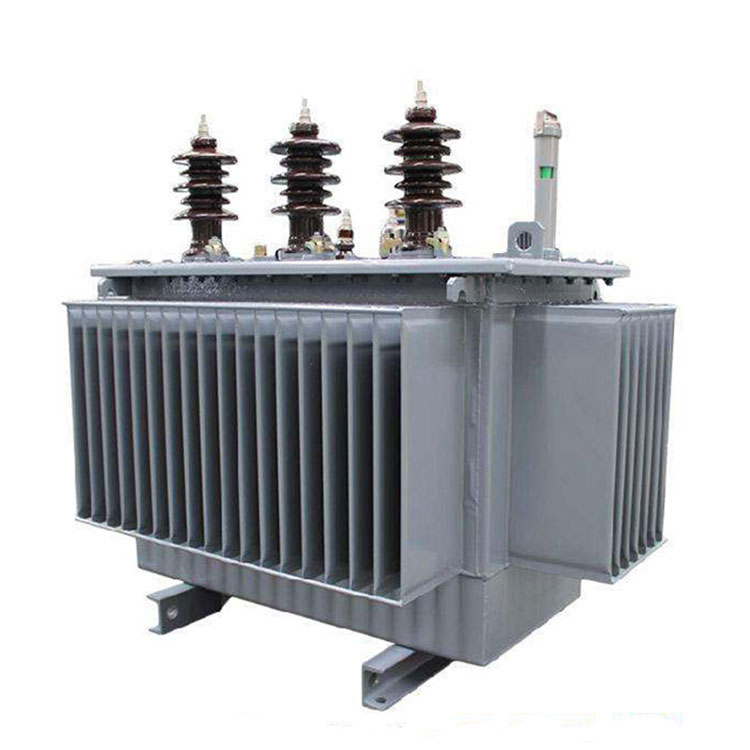

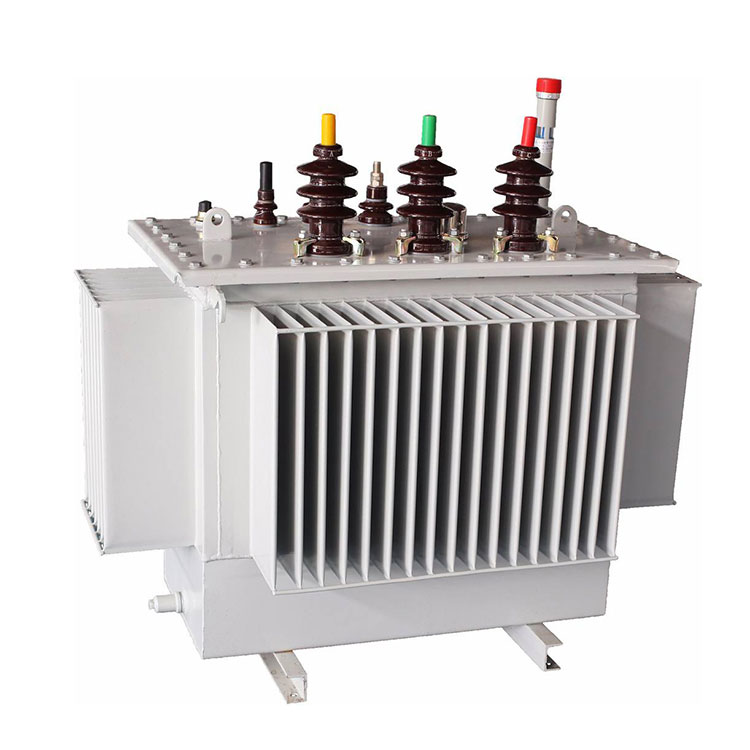

200 Kva Three Phase Pole Mounted Transformer
  • 200 Kva Three Phase Pole Mounted Transformer200 Kva Three Phase Pole Mounted Transformer
  • 200 Kva Three Phase Pole Mounted Transformer200 Kva Three Phase Pole Mounted Transformer

200 Kva Three Phase Pole Mounted Transformer

Since it established in 2006, Conso Electrical Science and Technology Co., Ltd. ,which is as a pole mounted transformer manufacturer, has enhanced the after sale service. It is one of the challenge that oversea shipping has a longer distance and time costs. To ensure the efficiency of deliver, 200 kva three phase pole mounted transformers will be mounted on a steel structures or a wooden case to avoid the damage from bumping. Moreover, in Conso Electrical, a pole mounted transformer will be suffered more non-destructive testing on both frequency and time to oversea users, such as the leakage test. Meanwhile, we will provide technical support and install adverse to oversea users.

Send Inquiry

Product Description

Video



200 kva three phase pole mounted transformers Introduction:


A 10kV pole-mounted transformer, also known as a distribution transformer installed off the ground between two poles (typically on utility poles), is supported by a structure called a transformer pole mount. The complete set of equipment includes surge arresters (three pieces), drop-out fuses (three pieces), grounding components, fastening bolts, high and low voltage insulators, low-voltage distribution box, etc.

Main purpose: Strengthening the standardization of distribution network construction is one of the most fundamental and important means to improve the fine management level of distribution network projects, enhance the quality of distribution network projects, improve distribution reliability, promote the "National Grid" brand, and establish a positive corporate image, among other objectives.

Key features: Safe, reliable, robust, durable, easy for operation and maintenance, technologically advanced, standardized, and following a moderately advanced principle.


200 kva three phase pole mounted transformers Parameter:


Rated Capacity:  200 kVA;
Mode:  S13-M.R-200;
Primary Voltage:  10kV,11kV,13.8kV,15kV;
Secondary voltage:  200V, 220V, 380, 400V, 415V, 433V;
No Loading Loss:  240 W ±10%;
Loading Loss:  2600/2730 W ±10% ;
Cooling method:  ONAN;
Basic Insulation Level:  adhere to IEC 60076;
Phase Number:  Single Phase or Three Phase;
Short Circuit Current:  ≤0.39%.


CONSO·CN 200 kva three phase pole mounted transformer Detail:


Front Mounted
Side Mounted
Single Phase Transformer
Single Pole Mounted


CONSO·CN 200 kva three phase pole mounted transformer Workshop:


Winding Workshop

Coil Drying Area

Oil Filling Area

Finished Product Area


200 kva three phase pole mounted transformer Testing Center:



200 kva three phase pole mounted transformer Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine


CONSO·CN 200 kva three phase pole mounted transformer Ready to Ship:



Package method:


Wooden Box

Steel Structure
