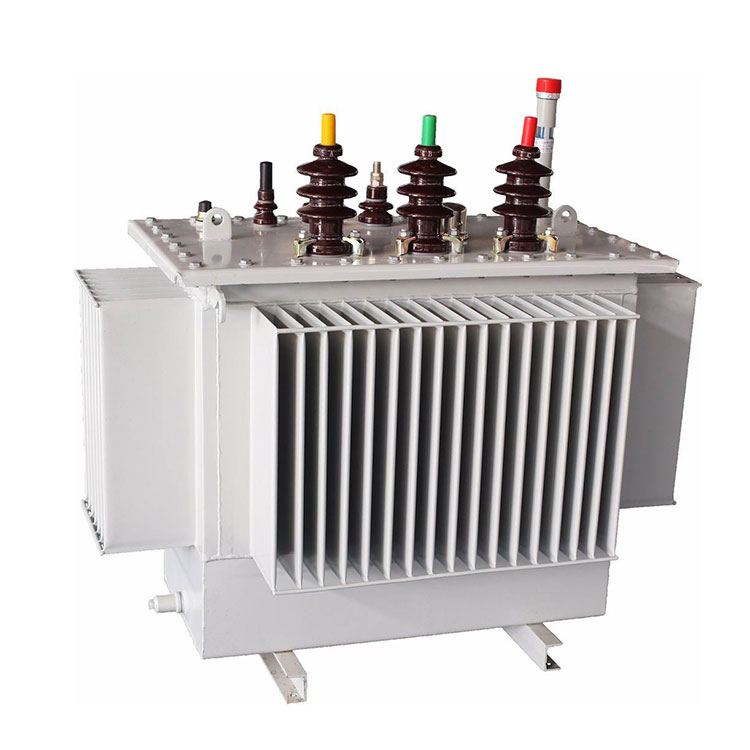

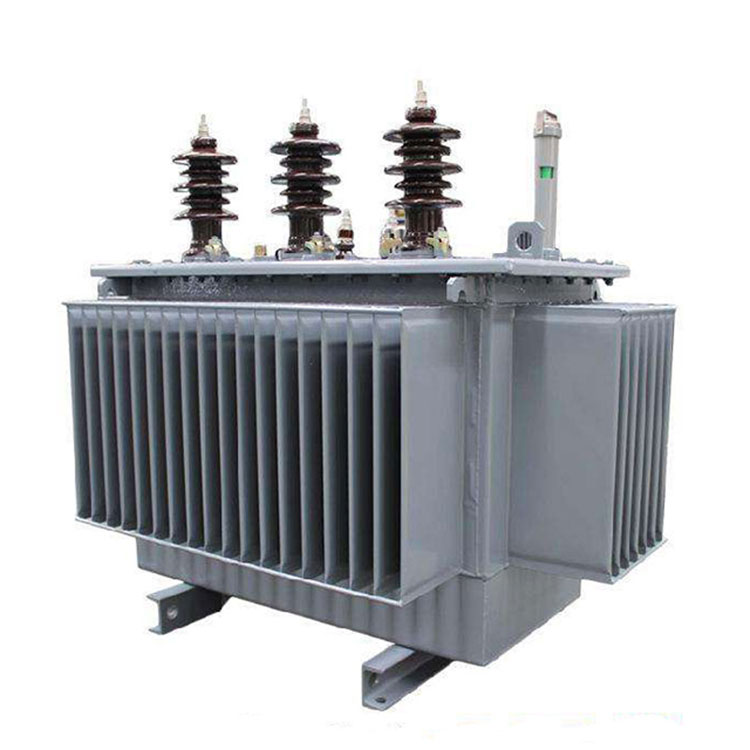

125 Kva Pole Mounted Transformer 3 Phase
  • 125 Kva Pole Mounted Transformer 3 Phase125 Kva Pole Mounted Transformer 3 Phase
  • 125 Kva Pole Mounted Transformer 3 Phase125 Kva Pole Mounted Transformer 3 Phase

125 Kva Pole Mounted Transformer 3 Phase

125 kva pole mounted transformer 3 phase is one of the most common mode in the products list of Conso Electrical Science and Technology Co., Ltd. For those pole mounted transformer, the first goal of Conso Electrical is to make 125 kva pole mounted transformers 3 phase in large scale according to client requirements. Our main production workers own more than 10 years experience to produce pole mounted transformers. The director of transformer workshop will inspect each component of pole mounted transformer when arrived to Conso Electrical. Because of our serious quality control, we support pole mounted transformer to state grid corporation of China each year. We also wish to build a relationship with power grid corporation from the world wide.

Send Inquiry

Product Description

Video



125 kva pole mounted transformer 3 phase Instruction:


Structure and Characteristics:

125 kva pole mounted transformers 3 phase are typically composed of two parts: the iron core and coils. They can be customized according to different rated capacities, voltage levels, and applications. Generally, 125 kva pole mounted transformers 3 phase are of large scale and heavy, requiring specialized equipment for handling and installation. In contrast, 125 kva pole mounted transformers 3 phase are characterized by easy installation, compact size, and a streamlined structure. They mainly consist of isolation transformers, carrier communication devices, surge protection devices, and an enclosure, among other components. Due to their simplified design, certain special materials and techniques can be employed to effectively reduce power consumption and noise issues.


Usage Scenarios:

pole mounted transformers are commonly used in the fields of power transmission, substations, and distribution, with capacities reaching several MVA (megavolt-amperes). In comparison, pole-mounted transformers typically have capacities not exceeding several KVA (kilovolt-amperes) and find widespread applications in urban and rural electrical grids. Due to their smaller size and weight, they are extensively utilized in power distribution systems, especially in situations with space constraints, such as residential neighborhoods in cities, interiors of commercial buildings, or electrical distribution cabinets, and more.


125 kva pole mounted transformer 3 phase Parameter:


Rated Capacity:  125 kVA;
Mode:  S11-M-125;
Primary Voltage:  10kV,11kV,13.8kV,15kV;
Secondary voltage:  400V, 415V, 433V;
No Loading Loss:  240 W 卤10%;
Loading Loss:  1800/1890 W 卤10%;
Vector Group:  Dyn5, Dyn11, Yyn0;
Winding Material:  100% Copper or 100% Aluminum;
Basic Insulation Level:  75kV/35kV(LI/AC), 95kV/38kV(LI/AC);
Temperature Rise:  60K/65K; 50K/55K; 45K/50K; 35K/40K


CONSO·CN 125 kva pole mounted transformer 3 phase Detail:


Front Mounted
Side Mounted
Single Phase Transformer
Single Pole Mounted


CONSO·CN 125 kva pole mounted transformer 3 phase Workshop:


Winding Workshop

Coil Drying Area

Oil Filling Area

Finished Product Area


125 kva pole mounted transformer 3 phase Testing Center:



125 kva pole mounted transformer 3 phase Producing Equipment:


Transformer Oven

Casting Equipment

Foil winding machine


CONSO·CN 125 kva pole mounted transformer 3 phase Ready to Ship:



Package method:


Wooden Box

Steel Structure
